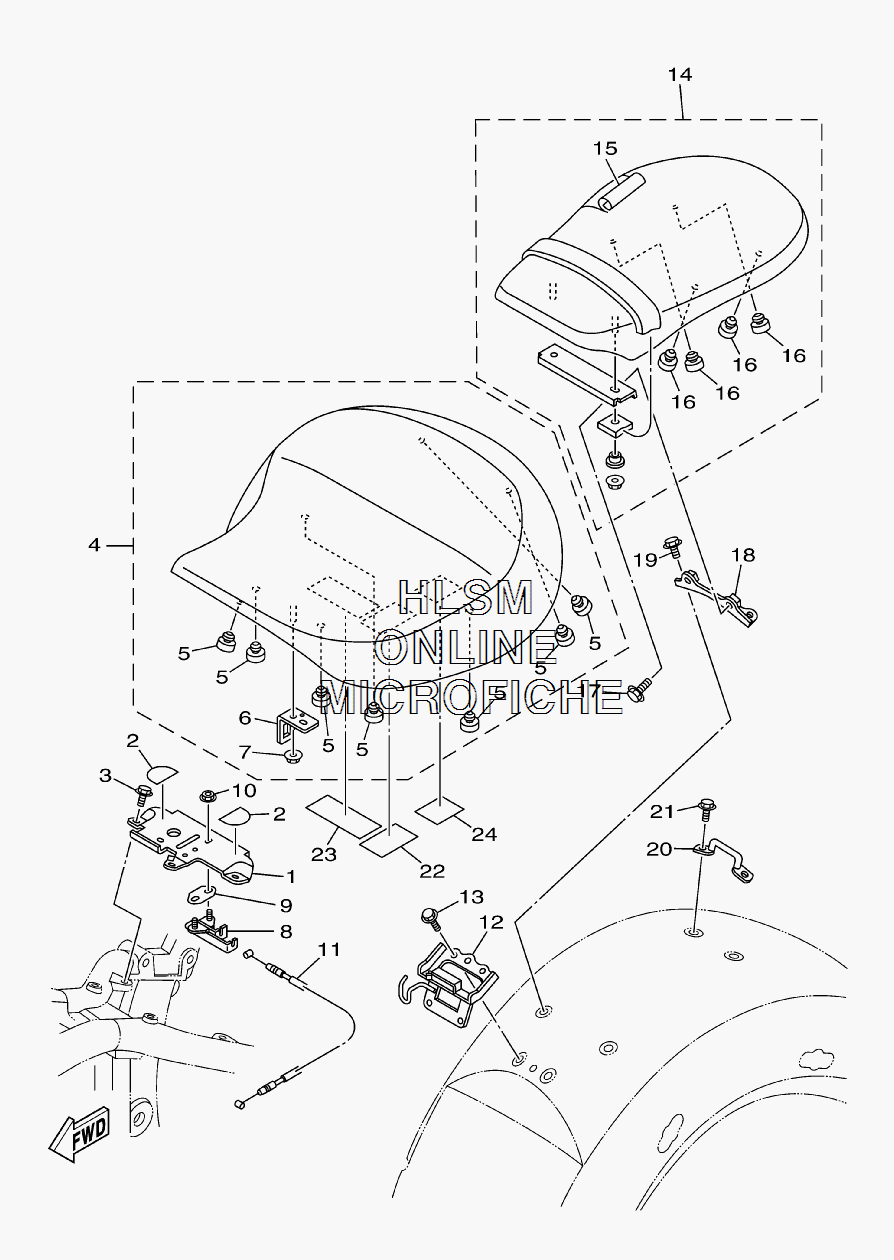

SEAT для Yamaha STRATOLINER MIDNIGHT - 2008 года выпуска
-
№АртикулНазвание
-
11D7-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
25PX-21735-00-00 SEAL 2SEAL 2
-
390105-08485-00 BOLT, FLANGE (JN5)BOLT, FLANGE (JN5)
-
41D7-24710-20-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
522W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
64NK-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
795602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
84BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
94BP-24792-00-00 PLATEPLATE
-
1095707-06500-00 NUT, FLANGE (4MV)NUT, FLANGE (4MV)
-
115PX-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
121D7-2475N-00-00 BRACKETBRACKET
-
1395022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
141D7-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
151D7-2470H-00-00 ...SEAT COVER COMP, 2...SEAT COVER COMP, 2
-
1622W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
1795022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
181D7-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
1995022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
201D7-2475R-00-00 BRACKET 6BRACKET 6
-
2195022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
221D7-21668-00-00 LABEL, TIRELABEL, TIRE
-
231D7-2179W-20-00 PLATE, EPA (EXCEPT CALIF.)PLATE, EPA (EXCEPT CALIF.)
-
231D7-2176P-20-00 PLATE, EPA (CALIF. ONLY)PLATE, EPA (CALIF. ONLY)
-
245PX-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
