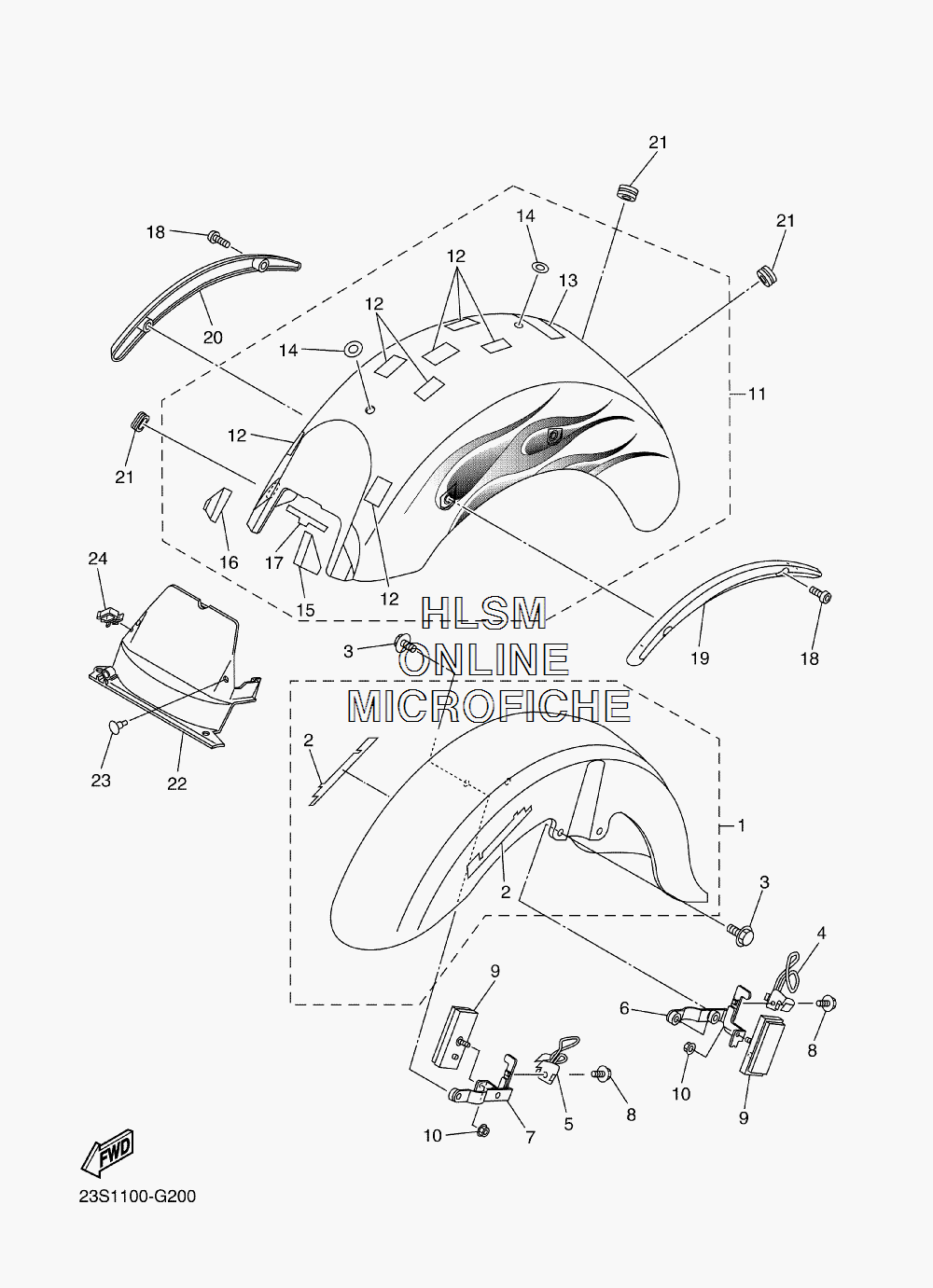

FENDER - FRONT / REAR для Yamaha V STAR 1100 CLASSIC - 2008 года выпуска
-
№АртикулНазвание
-
15KS-Y215R-Y0-P2 FRONT FENDER ASSY (SMX)FRONT FENDER ASSY (SMX)
-
15KS-Y2151-1Y-P3 FRONT FENDER ASSY (BWC1)FRONT FENDER ASSY (BWC1)
-
25BN-21565-00-00 ...EMBLEM, 2...EMBLEM, 2
-
395817-08020-00 BOLT, FLANGE (8AB)BOLT, FLANGE (8AB)
-
45KS-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
55KS-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
65KS-21587-00-00 STAY 1STAY 1
-
75KS-21588-00-00 STAY 2STAY 2
-
895807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
911H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
1095707-05500-00 NUT, FLANGENUT, FLANGE
-
115KS-W216R-0B-P2 REAR FENDER COMP. (SMX)REAR FENDER COMP. (SMX)
-
115KS-W216R-11-P3 REAR FENDER COMP. (BWC1)REAR FENDER COMP. (BWC1)
-
123SP-21732-00-00 ...SEAL 1...SEAL 1
-
131D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
144NK-21735-00-00 ...SEAL 2...SEAL 2
-
155KS-21669-00-00 ...SEAL...SEAL
-
165KS-21669-10-00 ...SEAL...SEAL
-
175KS-21669-20-00 ...SEAL...SEAL
-
1892014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
194WM-2164F-00-00 STAY 1STAY 1
-
204WM-2164G-00-00 STAY 2STAY 2
-
2190480-15061-00 GROMMETGROMMET
-
225KS-21629-00-00 GUARD, MUDGUARD, MUD
-
2390269-07077-00 RIVETRIVET
-
2490464-16021-00 CLAMPCLAMP
