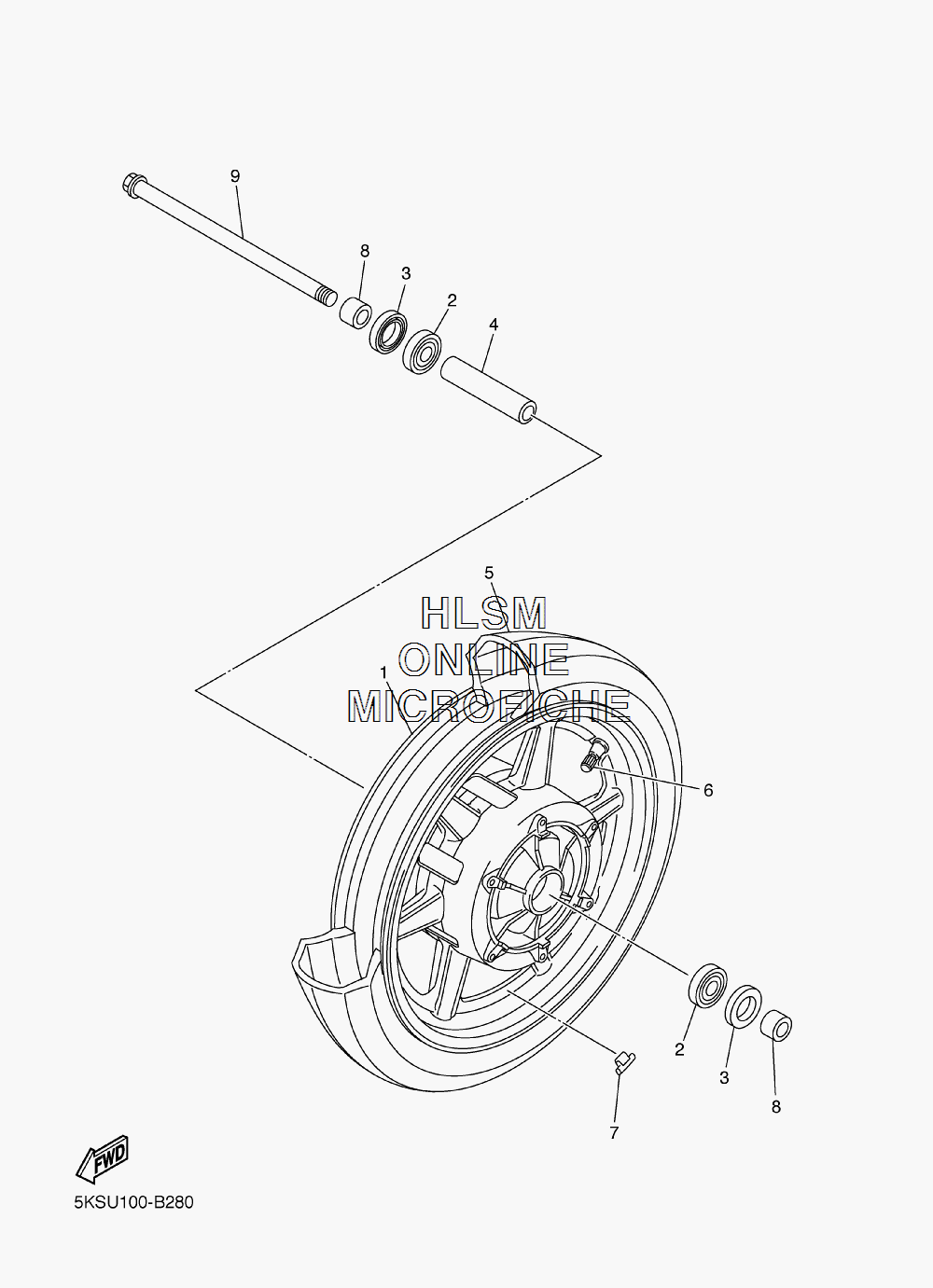

WHEEL - FRONT для Yamaha V STAR 1100 CLASSIC - 2008 года выпуска
-
№АртикулНазвание
-
15KS-25168-00-MA CAST WHEEL, FRONT (TGM)CAST WHEEL, FRONT (TGM)
-
293306-30317-00 BEARING (4HM)BEARING (4HM)
-
393102-28022-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
490387-173M5-00 COLLARCOLLAR
-
594113-16008-00 TIRE (130/90-16 M/C 67S D404) (OPT) (DUNLOP)TIRE (130/90-16 M/C 67S D404) (OPT) (DUNLOP)
-
594113-16009-00 TIRE (130/90-16 M/C 67S G703) (OPT) (BRDIGESTONE)TIRE (130/90-16 M/C 67S G703) (OPT) (BRDIGESTONE)
-
693900-00030-00 VALVE, RIMVALVE, RIM
-
75MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
75MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
75MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
890387-173R6-00 COLLARCOLLAR
-
95KS-25181-00-00 AXLE, WHEELAXLE, WHEEL
