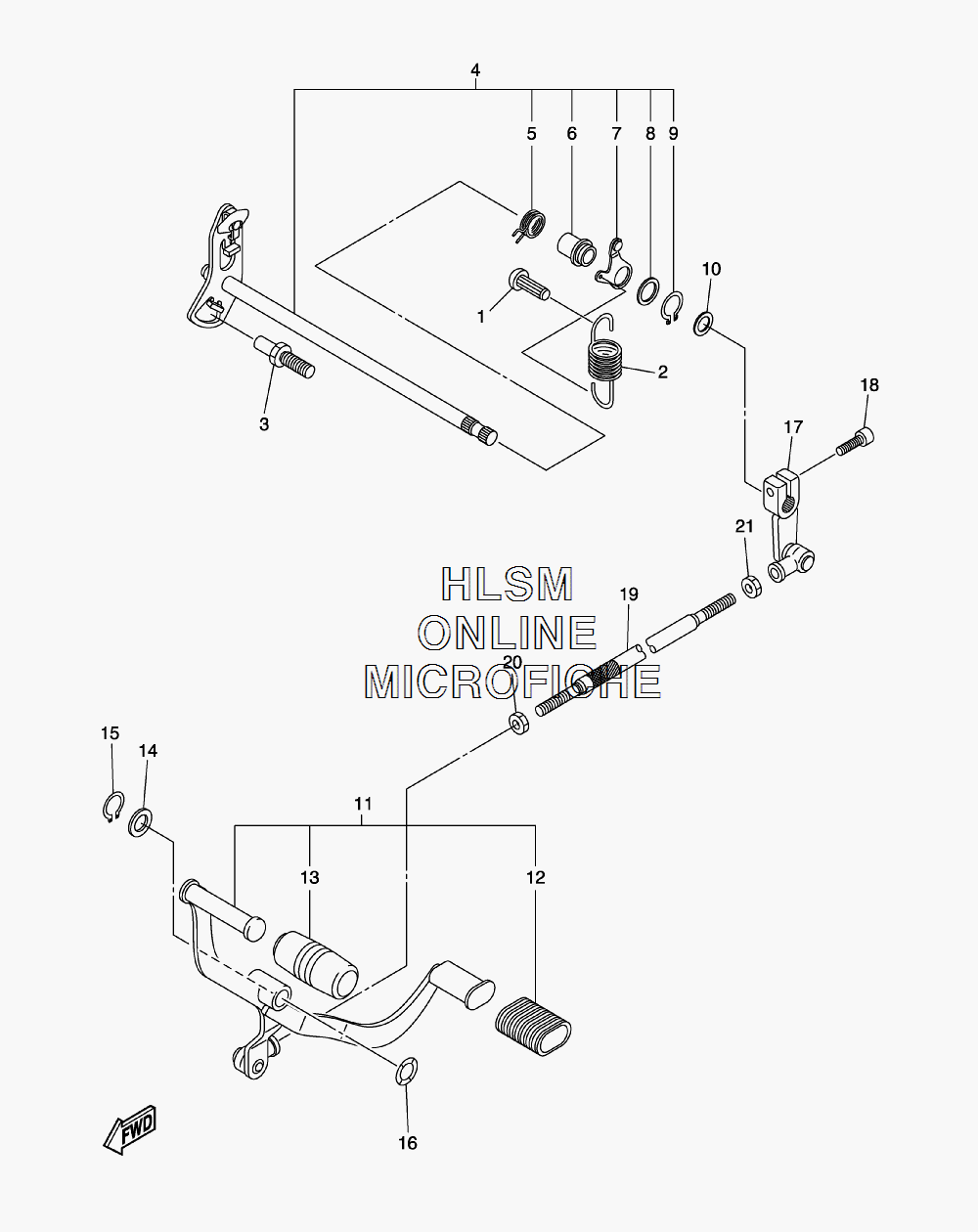

SHIFT SHAFT для Yamaha V STAR 1300 TOURER - 2008 года выпуска
-
№АртикулНазвание
-
1132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
290506-18015-00 SPRING, TENSIONSPRING, TENSION
-
31D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
43D8-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
590508-32040-00 ...SPRING, TORSION...SPRING, TORSION
-
63D8-18175-00-00 ...SPACER...SPACER
-
73D8-18140-00-00 ...STOPPER LEVER ASSY...STOPPER LEVER ASSY
-
890201-177G4-00 ...WASHER, PLATE...WASHER, PLATE
-
999009-17400-00 ...CIRCLIP...CIRCLIP
-
1090201-127E1-00 WASHER, PLATEWASHER, PLATE
-
113D8-18110-10-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
1222N-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
135VN-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
1490201-12688-00 WASHER, PLATEWASHER, PLATE
-
1599009-12400-00 CIRCLIPCIRCLIP
-
1690206-12074-00 WASHER, WAVEWASHER, WAVE
-
173D8-18112-01-00 ARM, SHIFTARM, SHIFT
-
1891312-06020-00 BOLT (3JB)BOLT (3JB)
-
193D8-18115-00-00 ROD, SHIFTROD, SHIFT
-
2090170-06228-00 NUT,HEXAGONNUT,HEXAGON
-
2195304-06700-00 NUTNUT
