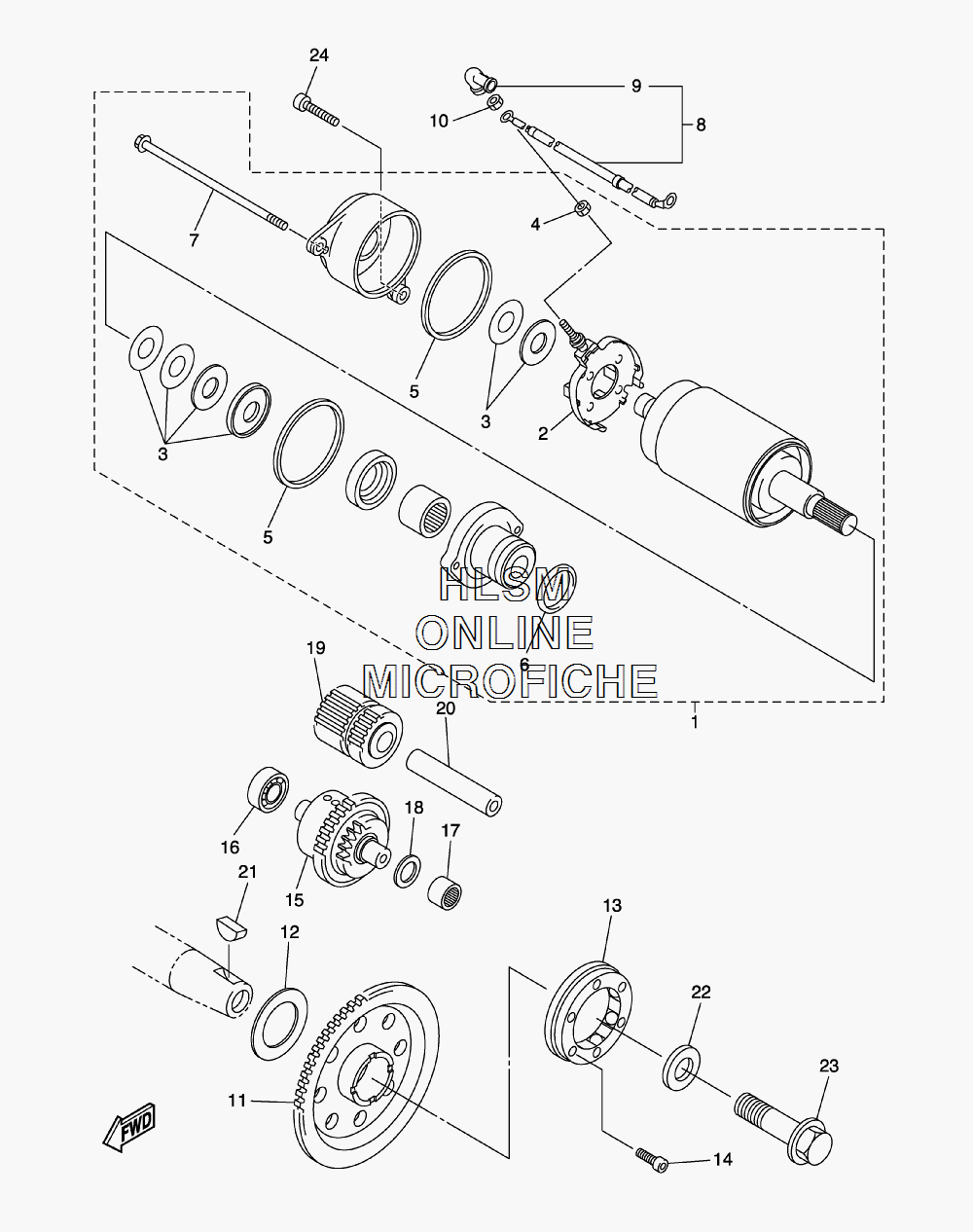

STARTER для Yamaha V STAR 1300 TOURER - 2008 года выпуска
-
№АртикулНазвание
-
13D8-81890-00-00 MOTOR ASSYMOTOR ASSY
-
23AJ-81801-00-00 ...BRUSH SET...BRUSH SET
-
33AJ-81809-00-00 ...WASHER KIT...WASHER KIT
-
44XV-8182A-00-00 ...NUT...NUT
-
511H-81844-00-00 ...GASKET...GASKET
-
61FK-81847-00-00 ...O-RING...O-RING
-
73D8-81826-00-00 ...BOLT...BOLT
-
83D8-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
94G0-81871-00-00 ...CAP...CAP
-
104XV-8182A-00-00 NUTNUT
-
113D8-15515-00-00 GEAR 3GEAR 3
-
1290201-303P4-00 WASHER, PLATEWASHER, PLATE
-
134NK-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
1490110-08067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
153D8-15560-00-00 DAMPER ASSYDAMPER ASSY
-
1693306-00006-00 BEARINGBEARING
-
1793317-11096-00 BEARINGBEARING
-
1890201-08759-00 WASHER, PLATEWASHER, PLATE
-
193D8-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
204WM-15522-00-00 SHAFT 2SHAFT 2
-
2190280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
2290201-12008-00 WASHER, PLATEWASHER, PLATE
-
2390105-12584-00 BOLT,WASHER BASEDBOLT,WASHER BASED
-
2491314-06030-00 BOLT,SOCKETBOLT,SOCKET
