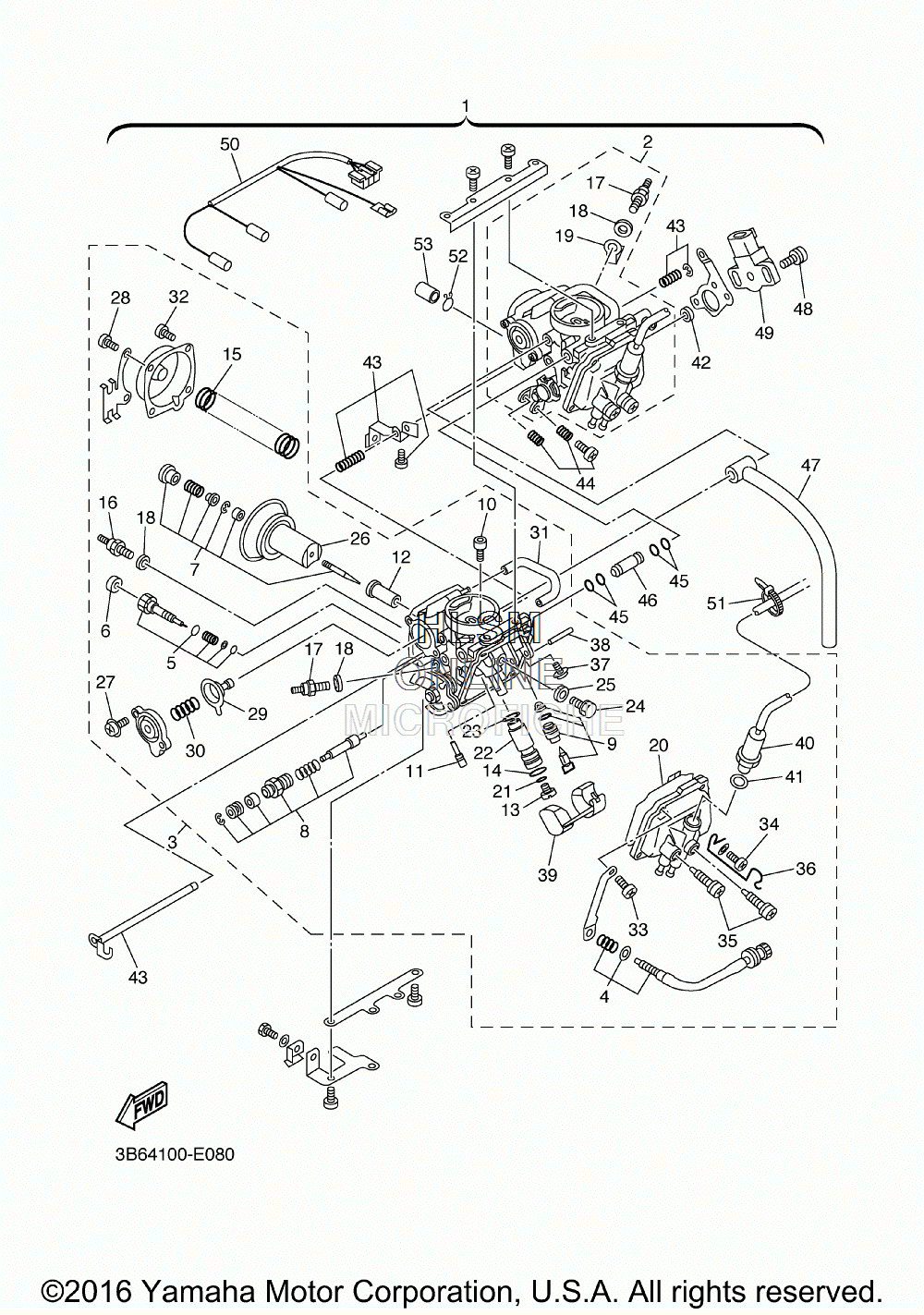

CARBURETOR для Yamaha V STAR 650 CLASSIC [ XVS65AXB/CB/L/CL] (4C5G/4C5H) - 2008 года выпуска
-
№АртикулНазвание
-
15SC-14900-20-00 CARBURETOR ASSY (CALIF ONLY)CARBURETOR ASSY (CALIF ONLY)
-
15SC-14906-20-00 CARBURETOR ASSY (EXCEPT CALIF.)CARBURETOR ASSY (EXCEPT CALIF.)
-
25SC-14901-20-00 ...CARBURETOR ASSY 1 (#1) REAR...CARBURETOR ASSY 1 (#1) REAR
-
35SC-14902-20-00 ...CARBURETOR ASSY 2 (#2) FRONT...CARBURETOR ASSY 2 (#2) FRONT
-
44TR-14103-00-00 ...THROTTLE SCREW SET (#2) FRONT...THROTTLE SCREW SET (#2) FRONT
-
54TR-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
63F9-14118-00-00 ...CAP...CAP
-
75BN-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
84DN-1410A-01-00 ...STARTER SET...STARTER SET
-
93CF-14107-10-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
101HX-14231-20-00 ...JET, PILOT AIR (#100)...JET, PILOT AIR (#100)
-
114KM-14142-20-00 ...JET, PILOT (#20)...JET, PILOT (#20)
-
123DM-1414M-34-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
133G2-1414E-36-00 ...JET, MAIN (#91.3)...JET, MAIN (#91.3)
-
148F2-14147-00-00 ...O-RING...O-RING
-
154VR-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
165FU-83790-00-00 ...HEATER ASSY (15W)...HEATER ASSY (15W)
-
175FU-83790-10-00 ...HEATER ASSY (20W)...HEATER ASSY (20W)
-
1890201-08016-00 ...WASHER, PLATE (#1) REAR...WASHER, PLATE (#1) REAR
-
1890201-08016-00 ...WASHER, PLATE (#2) FRONT...WASHER, PLATE (#2) FRONT
-
194DH-82103-00-00 ...TERMINAL 1 (#1) REAR...TERMINAL 1 (#1) REAR
-
201HX-14147-00-00 ...O-RING...O-RING
-
211AE-14227-00-00 ...O-RING...O-RING
-
225SC-14261-00-00 ...HOLDER...HOLDER
-
231AE-14237-00-00 ...GASKET...GASKET
-
241HX-14565-00-00 ...SCREW...SCREW
-
25137-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
264TR-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
271UY-14565-00-00 ...SCREW, PANHEAD...SCREW, PANHEAD
-
283KW-14486-00-00 ...SCREW, ROD (#2) FRONT...SCREW, ROD (#2) FRONT
-
2922V-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
305SC-14275-00-00 ...SPRING...SPRING
-
314TR-14348-00-00 ...PIPE 1...PIPE 1
-
3298507-04008-00 ...SCREW, PAN HEAD (#2) FRONT...SCREW, PAN HEAD (#2) FRONT
-
3298507-04008-00 ...SCREW, PAN HEAD (#1) REAR...SCREW, PAN HEAD (#1) REAR
-
3398707-04014-00 ...SCREW, FLAT HEAD (#2) FRONT...SCREW, FLAT HEAD (#2) FRONT
-
3398707-04014-00 ...SCREW, FLAT HEAD (#1) REAR...SCREW, FLAT HEAD (#1) REAR
-
344VR-24453-00-00 ...SCREW (#2) FRONT...SCREW (#2) FRONT
-
355LW-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
364TR-14937-00-00 ...CLIP (#2) FRONT...CLIP (#2) FRONT
-
371FN-14565-00-00 ...SCREW...SCREW
-
38353-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
391HX-14985-00-00 ...FLOAT...FLOAT
-
405SC-1410H-10-00 ...FUEL CUT SOLENOID VALVE (#1) REAR...FUEL CUT SOLENOID VALVE (#1) REAR
-
405SC-1410H-00-00 ...FUEL CUT SOLENOID VALVE (#2) FRONT...FUEL CUT SOLENOID VALVE (#2) FRONT
-
41256-14956-01-00 ...WASHER...WASHER
-
424HM-14239-00-00 ...SEAL...SEAL
-
434TR-1490L-00-00 ...STARTER LEVER SET, 1...STARTER LEVER SET, 1
-
443KW-1490K-00-00 ...STOP SCREW SET...STOP SCREW SET
-
4536Y-14147-00-00 ...O-RING...O-RING
-
461WG-14251-00-00 ...NIPPLE...NIPPLE
-
474TR-14987-00-00 ...HOSE...HOSE
-
484KM-24453-00-00 ...SCREW...SCREW
-
494NK-85885-00-00 ...THROTTLE POSITION SENSOR ASSY...THROTTLE POSITION SENSOR ASSY
-
505SC-81517-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
5135H-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
5255X-14937-00-00 ...CLIP...CLIP
-
535GK-1491A-00-00 ...CAP...CAP
