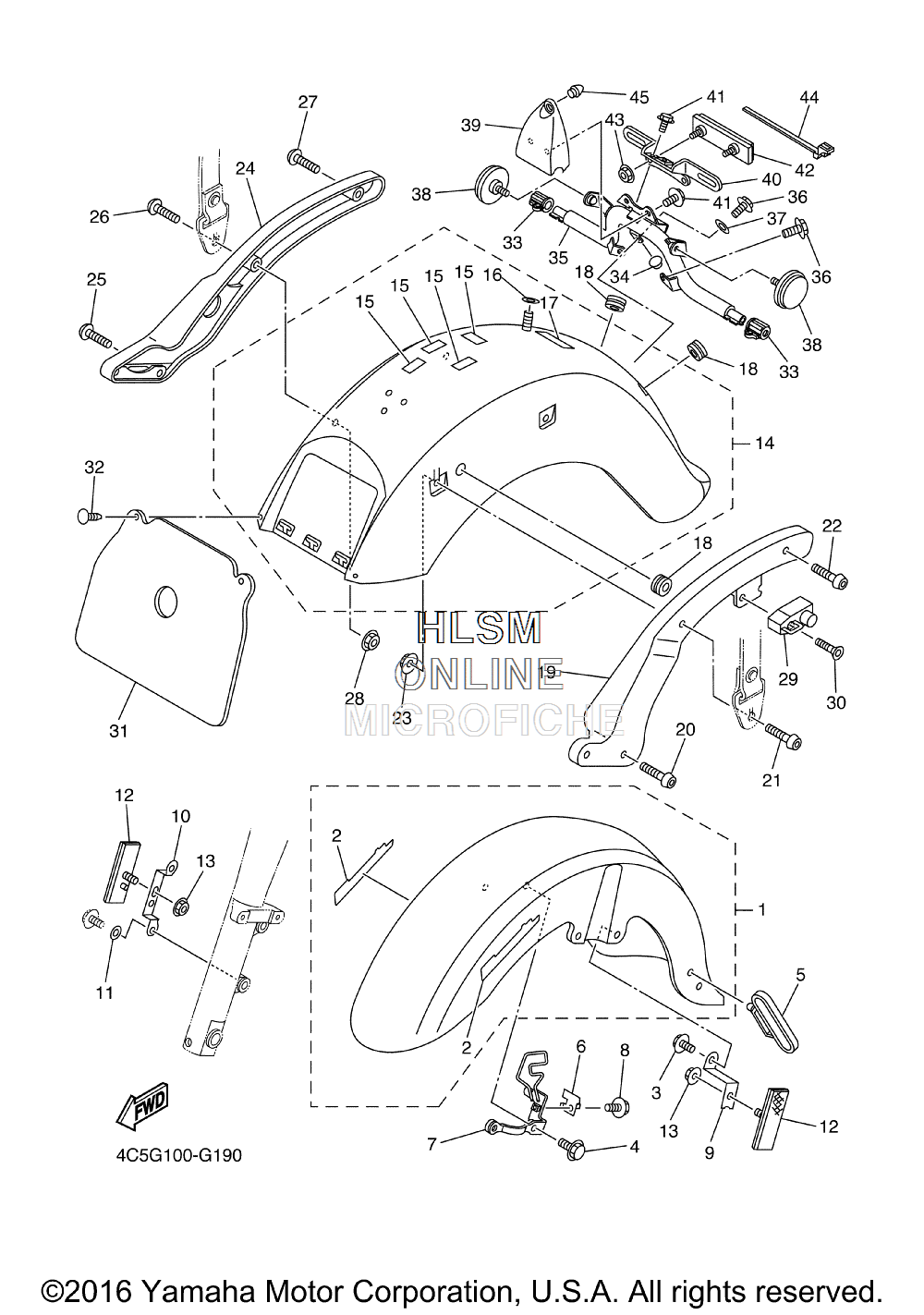

FENDER - FRONT / REAR для Yamaha V STAR 650 CLASSIC [ XVS65AXB/CB/L/CL] (4C5G/4C5H) - 2008 года выпуска
-
№АртикулНазвание
-
15BN-Y2151-0H-P4 FRONT FENDER COMP. (SMX)FRONT FENDER COMP. (SMX)
-
15BN-Y2151-0H-P7 FRONT FENDER COMP. (DPBML)FRONT FENDER COMP. (DPBML)
-
25BN-21578-E0-00 ...EMBLEM...EMBLEM
-
395817-08016-00 BOLT, FLANGE (JN5)BOLT, FLANGE (JN5)
-
495814-08020-00 BOLT, FLANGEBOLT, FLANGE
-
55BN-21518-01-00 HOLDER, CABLEHOLDER, CABLE
-
65BN-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
75BN-21587-01-00 STAY 1STAY 1
-
895807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
95BN-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
105BN-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
1190201-08759-00 WASHER, PLATEWASHER, PLATE
-
1211H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
1395707-05500-00 NUT, FLANGENUT, FLANGE
-
145BN-W216R-V2-P4 REAR FENDER COMP. (SMX)REAR FENDER COMP. (SMX)
-
145BN-W216R-V2-P8 REAR FENDER COMP. (DPBML)REAR FENDER COMP. (DPBML)
-
153SP-21732-00-00 ...SEAL 1...SEAL 1
-
164NK-21735-00-00 ...SEAL 2...SEAL 2
-
171D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
1890480-15061-00 GROMMETGROMMET
-
195BN-21613-10-00 STAY, FENDER 1STAY, FENDER 1
-
2090157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2192014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2292014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2390179-08491-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
245BN-21614-10-00 STAY, FENDER 2STAY, FENDER 2
-
2590157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2692014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2792014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2890179-08491-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
294R8-21308-00-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
3090149-06154-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
314TR-21629-00-00 GUARD, MUDGUARD, MUD
-
3290269-05039-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
335VN-83321-00-00 DAMPER, FLASHER 1DAMPER, FLASHER 1
-
344NK-83345-00-00 PLUG, BLINDPLUG, BLIND
-
355BN-2317W-40-00 STAY, 9STAY, 9
-
3695024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3790201-06043-00 WASHER, PLATEWASHER, PLATE
-
38449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
395BN-84703-00-00 BRACKETBRACKET
-
405BN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
4195027-06010-00 BOLT, FLANGE (4MY)BOLT, FLANGE (4MY)
-
421FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4395707-05500-00 NUT, FLANGENUT, FLANGE
-
4490464-25002-00 CLAMPCLAMP
-
4542U-21639-00-00 DAMPER 2DAMPER 2
