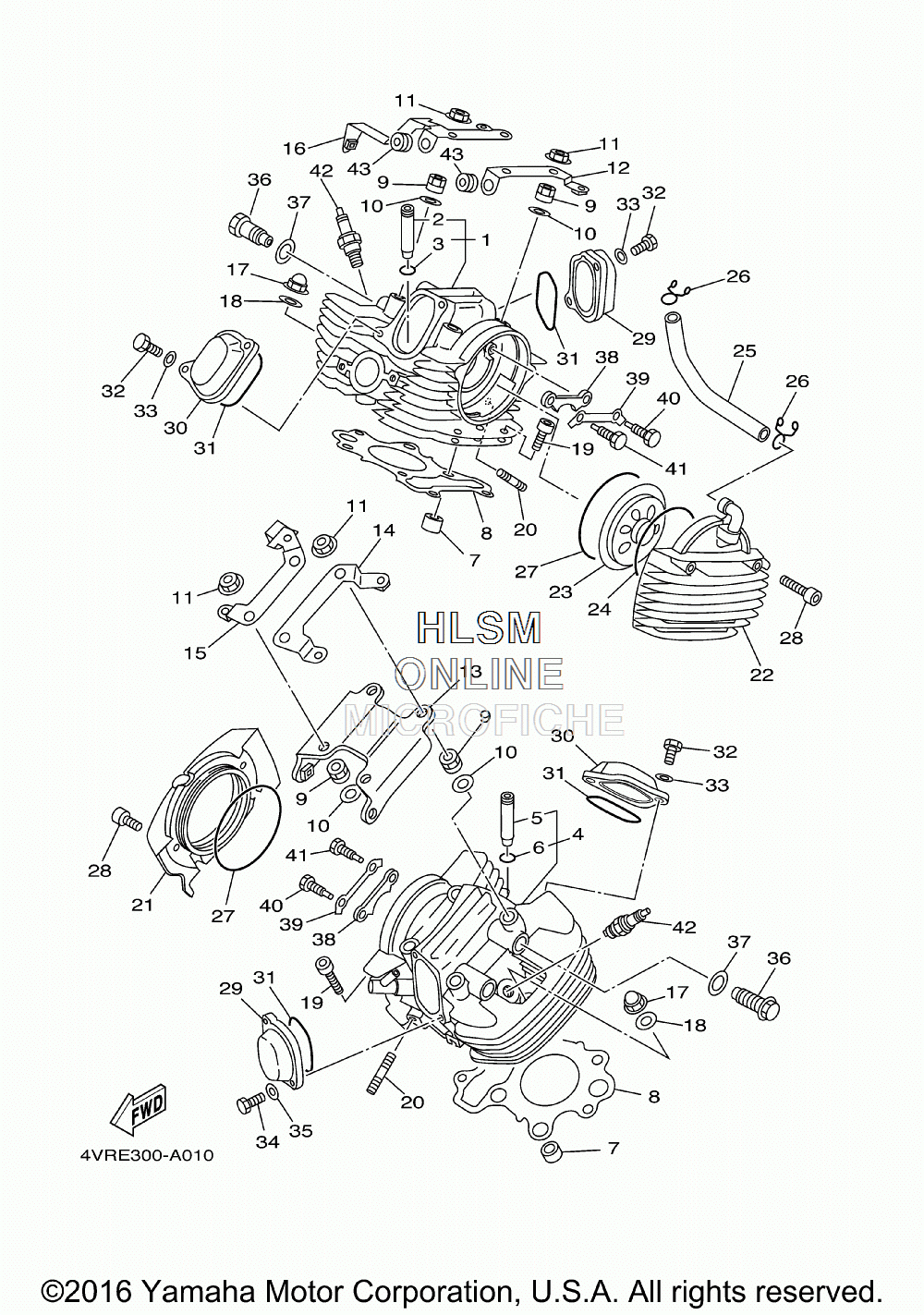

CYLINDER HEAD для Yamaha V STAR 650 MIDNIGHT CUSTOM - 2008 года выпуска
-
№АртикулНазвание
-
15BN-11101-20-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24H7-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-12052-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
44XP-11101-20-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
54H7-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
693440-12052-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
799530-17016-00 PIN, DOWEL (3BM)PIN, DOWEL (3BM)
-
84VR-11181-10-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
990179-10395-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1090201-10131-00 WASHER, PLATEWASHER, PLATE
-
1195707-10500-00 NUT, FLANGE (8AB)NUT, FLANGE (8AB)
-
124TR-11142-00-00 BRACKET, CYLINDER HEAD COVER 2BRACKET, CYLINDER HEAD COVER 2
-
134TR-11152-00-00 BRACKET, CYLINDER HEAD COVERBRACKET, CYLINDER HEAD COVER
-
144TR-1111F-00-00 PLATEPLATE
-
154TR-1112F-00-00 PLATE 2PLATE 2
-
164TR-1135A-00-00 BRACKETBRACKET
-
1790176-08080-00 NUT, CROWN (4BR)NUT, CROWN (4BR)
-
1890201-08609-00 WASHER, PLATEWASHER, PLATE
-
1990110-08019-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2095617-08630-00 BOLT, STUDBOLT, STUD
-
214TR-11187-20-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
224TR-11186-20-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
2322U-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
2493210-89568-00 O-RINGO-RING
-
254TR-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2690467-14015-00 CLIP, SCISSORCLIP, SCISSOR
-
2793211-00612-00 O-RINGO-RING
-
2891314-06035-00 BOLT, SOCKET HEATBOLT, SOCKET HEAT
-
2922U-11186-01-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
3022U-11187-01-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
3193210-62446-00 O-RINGO-RING
-
3297027-06016-00 BOLTBOLT
-
3392907-06600-00 WASHER, PLATE (6TA)WASHER, PLATE (6TA)
-
3497024-06016-00 BOLTBOLT
-
3592904-06600-00 WASHERWASHER
-
3690401-16166-00 BOLT, UNIONBOLT, UNION
-
3790430-17168-00 GASKETGASKET
-
3822U-1111F-01-00 PLATEPLATE
-
3990215-08229-00 WASHER, LOCKWASHER, LOCK
-
4090109-08782-00 BOLTBOLT
-
4190109-08781-00 BOLTBOLT
-
42NGK-DPR7E-A9-00 PLUG, SPARK (NGK DPR7EA)PLUG, SPARK (NGK DPR7EA)
-
4390480-13018-00 GROMMETGROMMET
