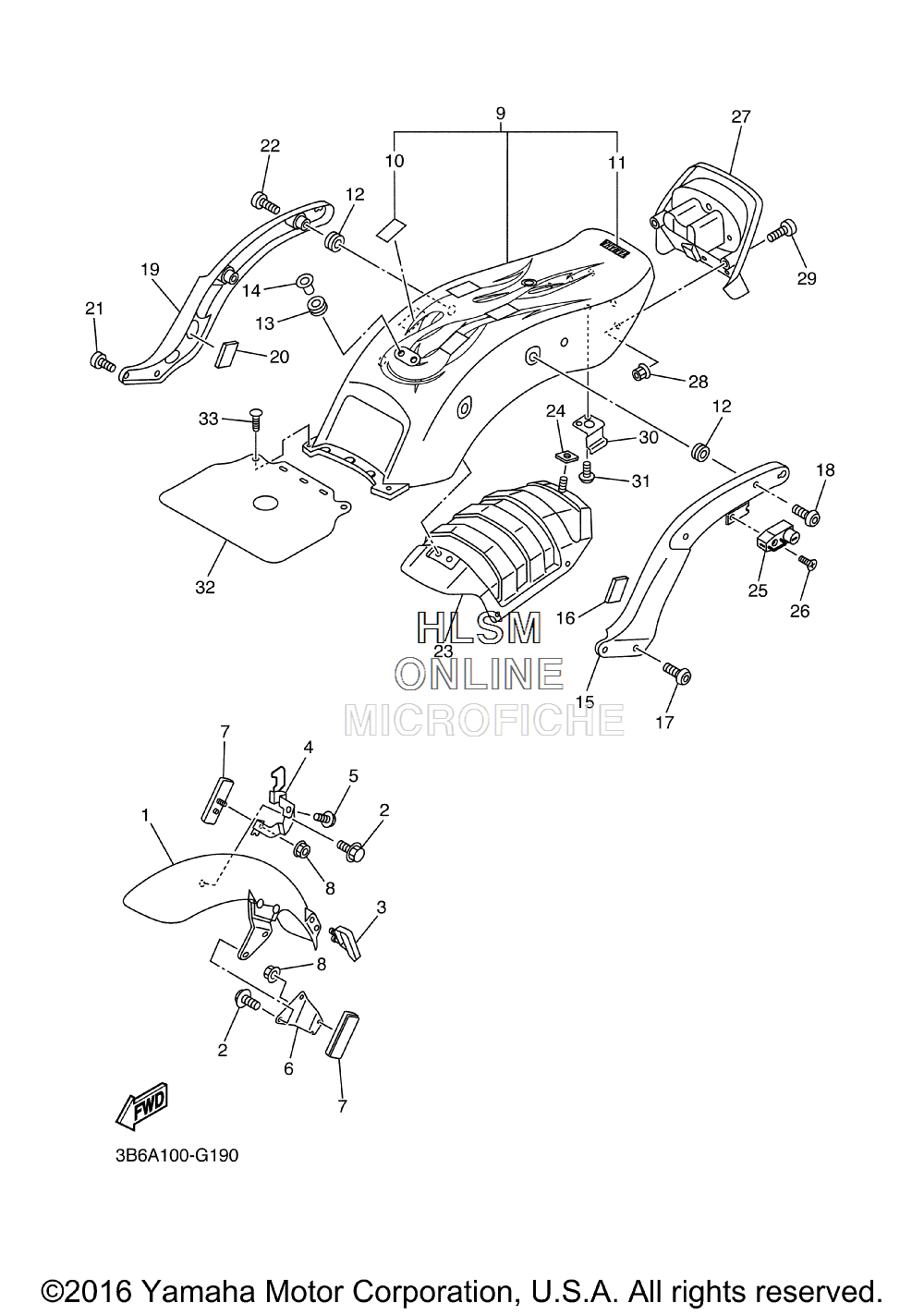

FENDER - FRONT / REAR для Yamaha V STAR 650 MIDNIGHT CUSTOM - 2008 года выпуска
-
№АртикулНазвание
-
14TR-21510-10-P0 FRONT FENDER COMP. (SMX)FRONT FENDER COMP. (SMX)
-
295027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
34VR-21518-00-00 HOLDER, CABLEHOLDER, CABLE
-
45FB-21598-01-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
65FB-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
895707-05500-00 NUT, FLANGENUT, FLANGE
-
94TR-Y2161-F2-PF REAR FENDER COMP. (SMX)REAR FENDER COMP. (SMX)
-
103SP-21732-00-00 ...SEAL 1...SEAL 1
-
111D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
1290480-18418-00 GROMMET (3AK)GROMMET (3AK)
-
1390480-13398-00 GROMMETGROMMET
-
1490387-067N5-00 COLLARCOLLAR
-
154TR-21613-10-P0 STAY, FENDER 1 (MBL2)STAY, FENDER 1 (MBL2)
-
163SX-2139X-00-00 DAMPERDAMPER
-
1790157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1892014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
194TR-21614-10-P0 STAY, FENDER 2 (MBL2)STAY, FENDER 2 (MBL2)
-
203SX-2139X-00-00 DAMPERDAMPER
-
2190157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2292014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
234TR-21643-01-00 STAY, REARSTAY, REAR
-
245FB-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
254R8-21308-01-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
2690149-06154-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
275FB-2162R-00-00 FENDER 2FENDER 2
-
2890179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
2990154-05011-00 SCREW, BINDINGSCREW, BINDING
-
304TR-21679-00-00 HOLDER, HARNESSHOLDER, HARNESS
-
3190167-05025-00 SCREW, TAPPINGSCREW, TAPPING
-
324TR-21629-00-00 GUARD, MUDGUARD, MUD
-
3390269-05039-00 RIVETRIVET
