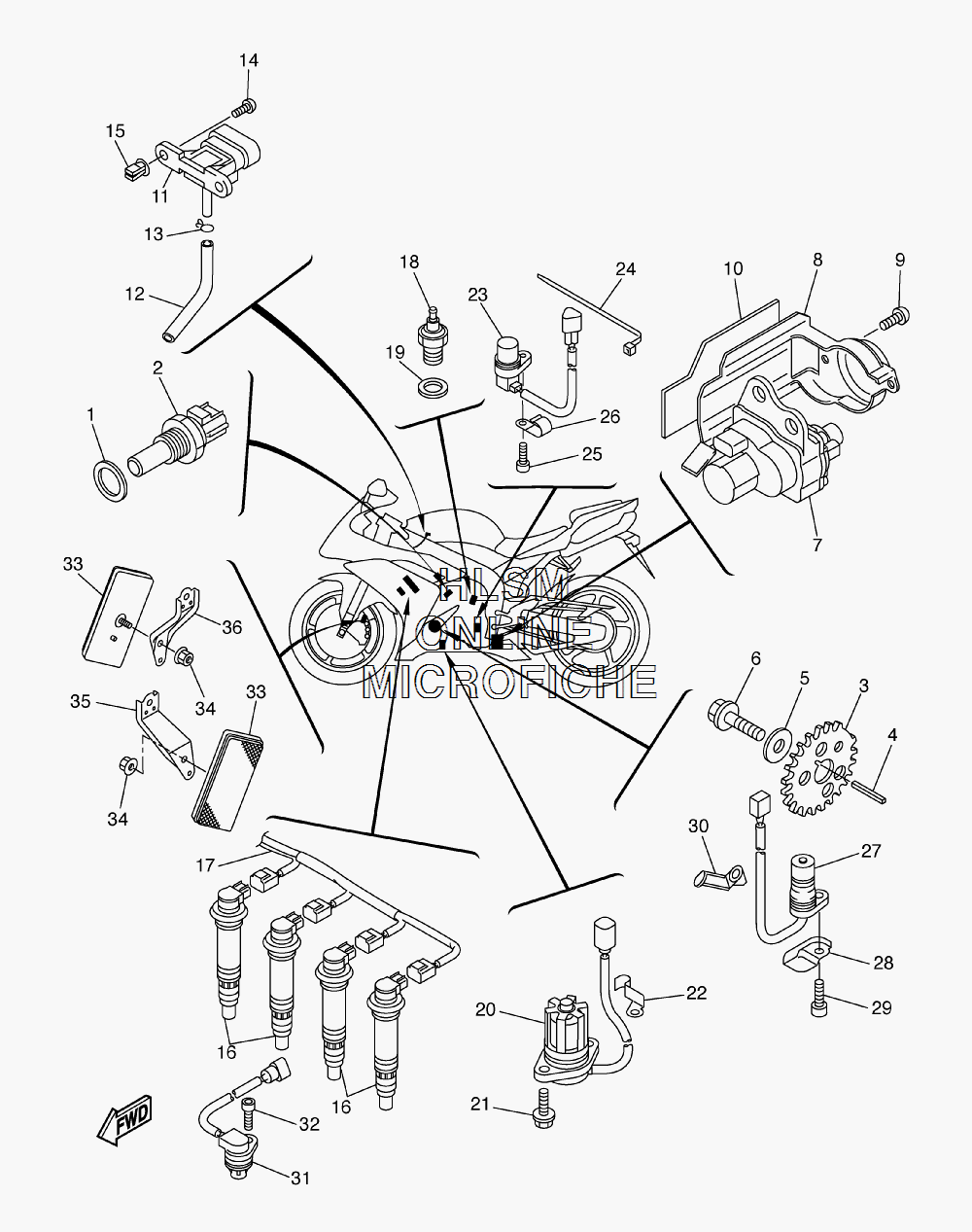

ELECTRICAL для Yamaha YZF-R1 - 2008 года выпуска
-
№АртикулНазвание
-
190201-12790-00 WASHER, PLATEWASHER, PLATE
-
28CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
32D1-81673-00-00 ROTORROTOR
-
490282-03001-00 KEY, STRAIGHTKEY, STRAIGHT
-
590201-10039-00 WASHER, PLATEWASHER, PLATE
-
690105-10290-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
75VY-85820-10-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
84C8-85829-01-00 COVER, SERVO MOTORCOVER, SERVO MOTOR
-
997702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
104C8-1479P-00-00 SEAT 5SEAT 5
-
111C7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
1290445-08028-00 HOSEHOSE
-
1390467-08021-00 CLIP, SCISSORCLIP, SCISSOR
-
1497702-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
1590338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
164C8-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
174C8-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
183GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1990430-10148-00 GASKETGASKET
-
205VY-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
2195022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2290465-08053-00 CLAMPCLAMP
-
234XV-83755-03-00 SENSOR, SPEEDSENSOR, SPEED
-
2490464-51001-00 CLAMPCLAMP
-
2590110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2690462-08057-00 CLAMPCLAMP
-
275VY-81670-01-00 PICK-UP ASSYPICK-UP ASSY
-
284C8-15589-00-00 PLATE, CLUTCH COVERPLATE, CLUTCH COVER
-
2990110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3090465-08054-00 CLAMPCLAMP
-
315VY-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
3290110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3311H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
3495707-05500-00 NUT, FLANGENUT, FLANGE
-
355VY-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
365VY-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
