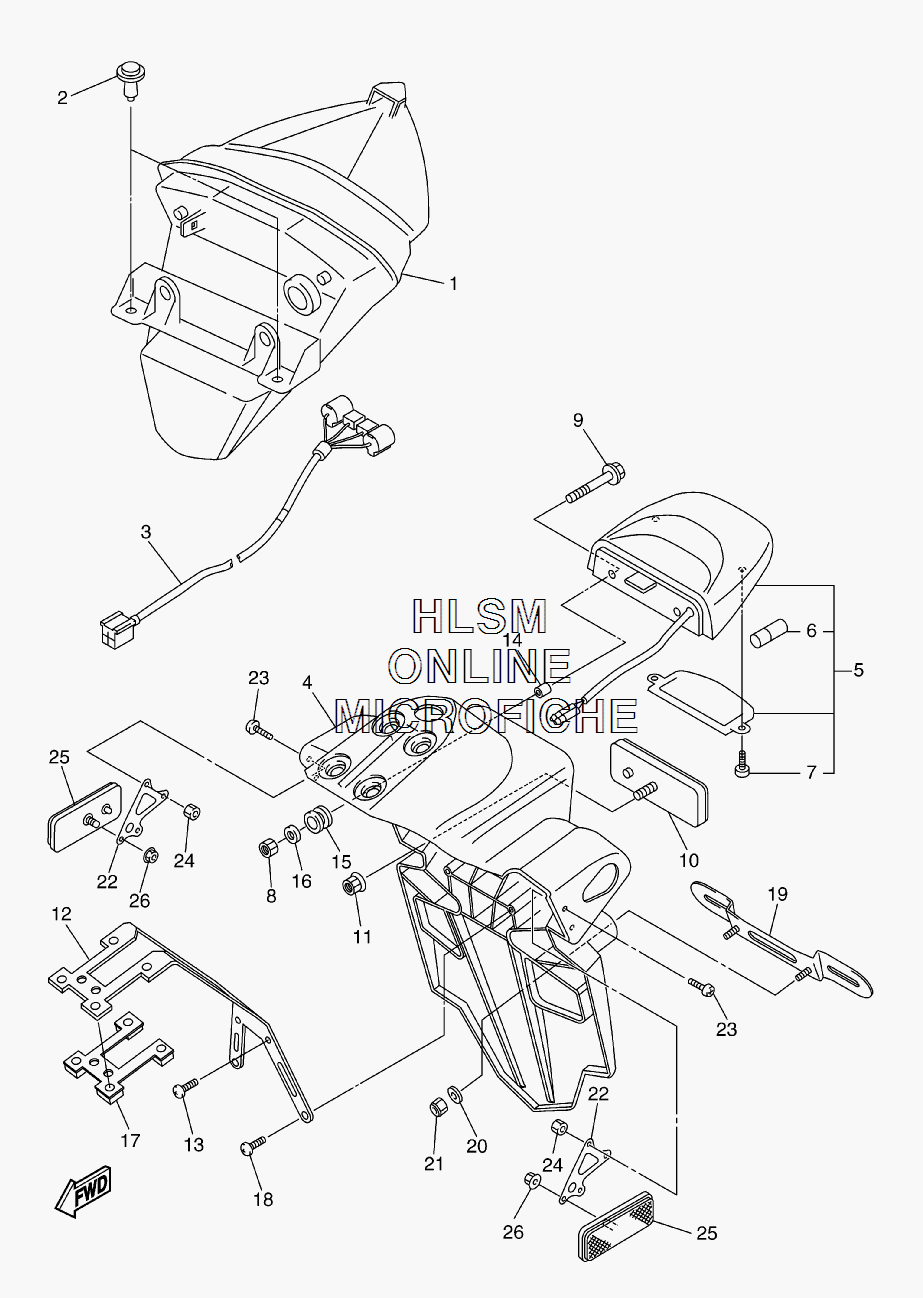

TAILLIGHT для Yamaha YZF-R1 - 2008 года выпуска
-
№АртикулНазвание
-
14C8-84710-10-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
290269-06081-00 RIVETRIVET
-
35PW-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
44C8-21629-11-00 GUARD, MUDGUARD, MUD
-
55VX-84745-01-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
64HC-84744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
797706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
895602-05100-00 NUT, UNUT, U
-
990159-05011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
103Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1195607-05200-00 NUT, U FLANGENUT, U FLANGE
-
124C8-2161G-00-00 BRACKET 6BRACKET 6
-
1397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1490387-05003-00 COLLARCOLLAR
-
1590480-11009-00 GROMMETGROMMET
-
1692907-05200-00 WASHERWASHER
-
175VY-2161G-00-00 BRACKET 6BRACKET 6
-
1897707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
195MT-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
2090201-06050-00 WASHER, PLATEWASHER, PLATE
-
2195607-06100-00 NUT, UNUT, U
-
224C8-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
2390150-04041-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
2495607-04100-00 NUT, U (6E8)NUT, U (6E8)
-
253Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2695707-05500-00 NUT, FLANGENUT, FLANGE
