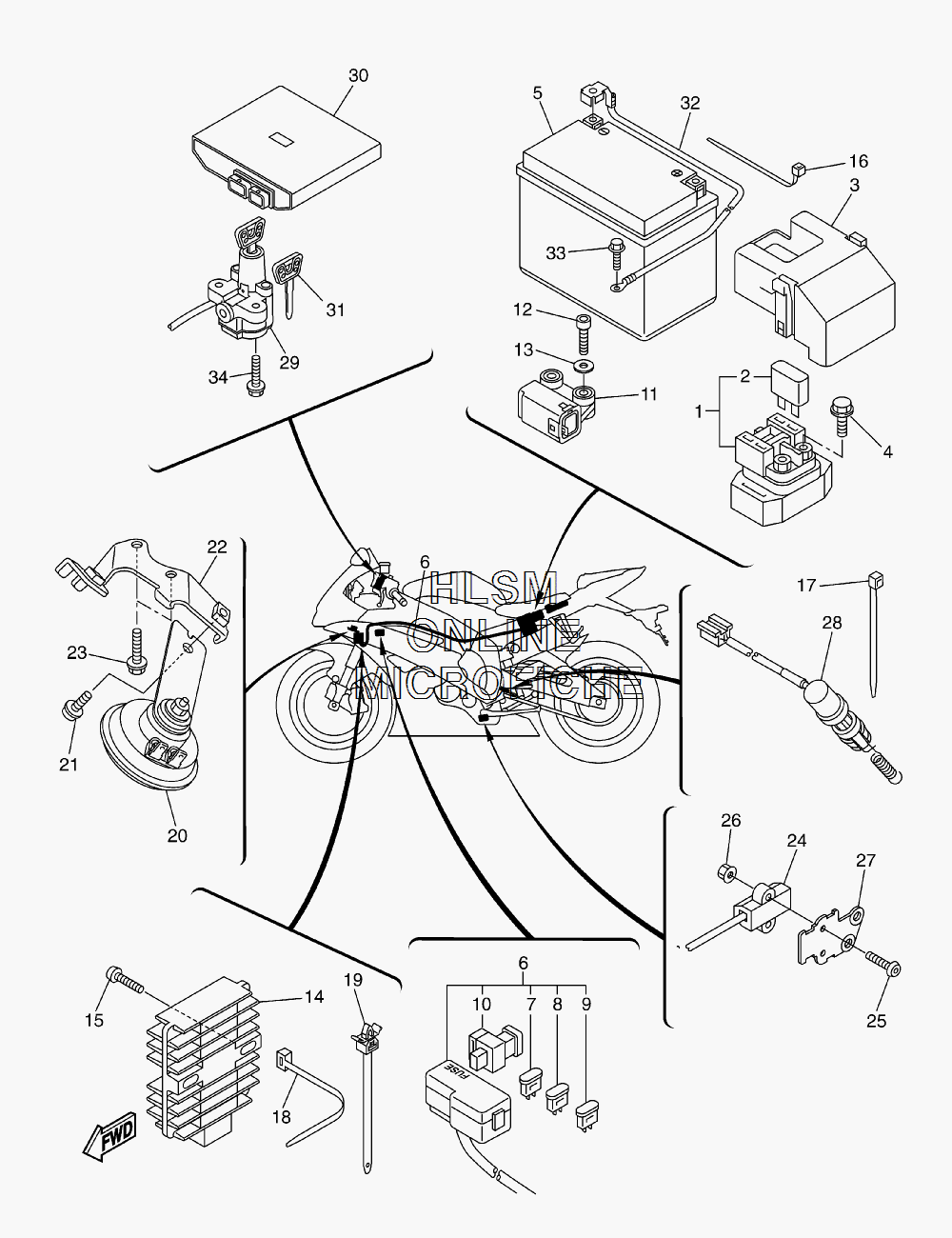

ELECTRICAL 2 для Yamaha YZF-R6 - 2008 года выпуска
-
№АртикулНазвание
-
12C0-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
236Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
35SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
495022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
5BTY-YTZ10-S0-00 BATTERY ASSY (YUASA YTZ10S)BATTERY ASSY (YUASA YTZ10S)
-
613S-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
75JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
85JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
95JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
105JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
115PS-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
1291317-04025-00 BOLTBOLT
-
1390201-042E0-00 WASHER, PLATEWASHER, PLATE
-
144XY-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1592017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1690465-15011-00 CLAMPCLAMP
-
1790464-32060-00 BANDBAND
-
1890464-16061-00 BANDBAND
-
1990464-12036-00 CLAMPCLAMP
-
204TH-83371-00-00 HORNHORN
-
2195812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2213S-23377-00-00 BRACKET, HORNBRACKET, HORN
-
2395822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2413S-82566-70-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2592012-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2695602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
272C0-27961-00-00 BRACKET, SENSOR 1BRACKET, SENSOR 1
-
2813S-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
292C0-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
3013S-8591A-20-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
314BH-82511-09-00 BLANK KEYBLANK KEY
-
322C0-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
3391380-06012-00 BOLTBOLT
-
3490109-080G5-00 BOLTBOLT
