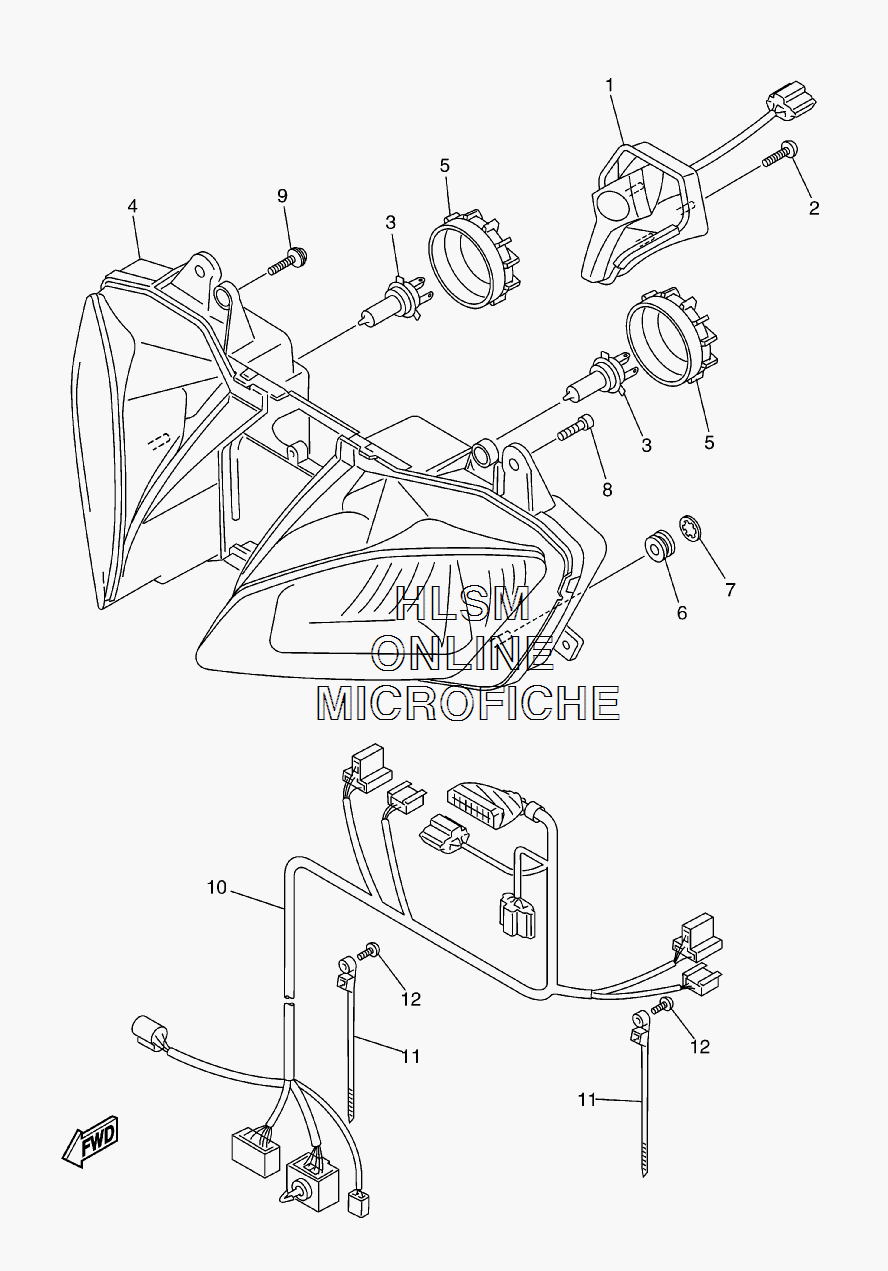

HEADLIGHT для Yamaha YZF-R6 - 2008 года выпуска
-
№АртикулНазвание
-
113S-84301-10-00 PILOT LIGHT ASSY 1PILOT LIGHT ASSY 1
-
297702-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
34SV-84314-00-00 BULB (12V-55W) (H7) HALOGENBULB (12V-55W) (H7) HALOGEN
-
413S-84303-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
55SL-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
690480-08264-00 GROMMETGROMMET
-
790209-03274-00 WASHER, SPEC'L SHAPWASHER, SPEC'L SHAP
-
897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
990160-05006-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
1013S-84359-10-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
1190464-47001-00 CLAMPCLAMP
-
1297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
