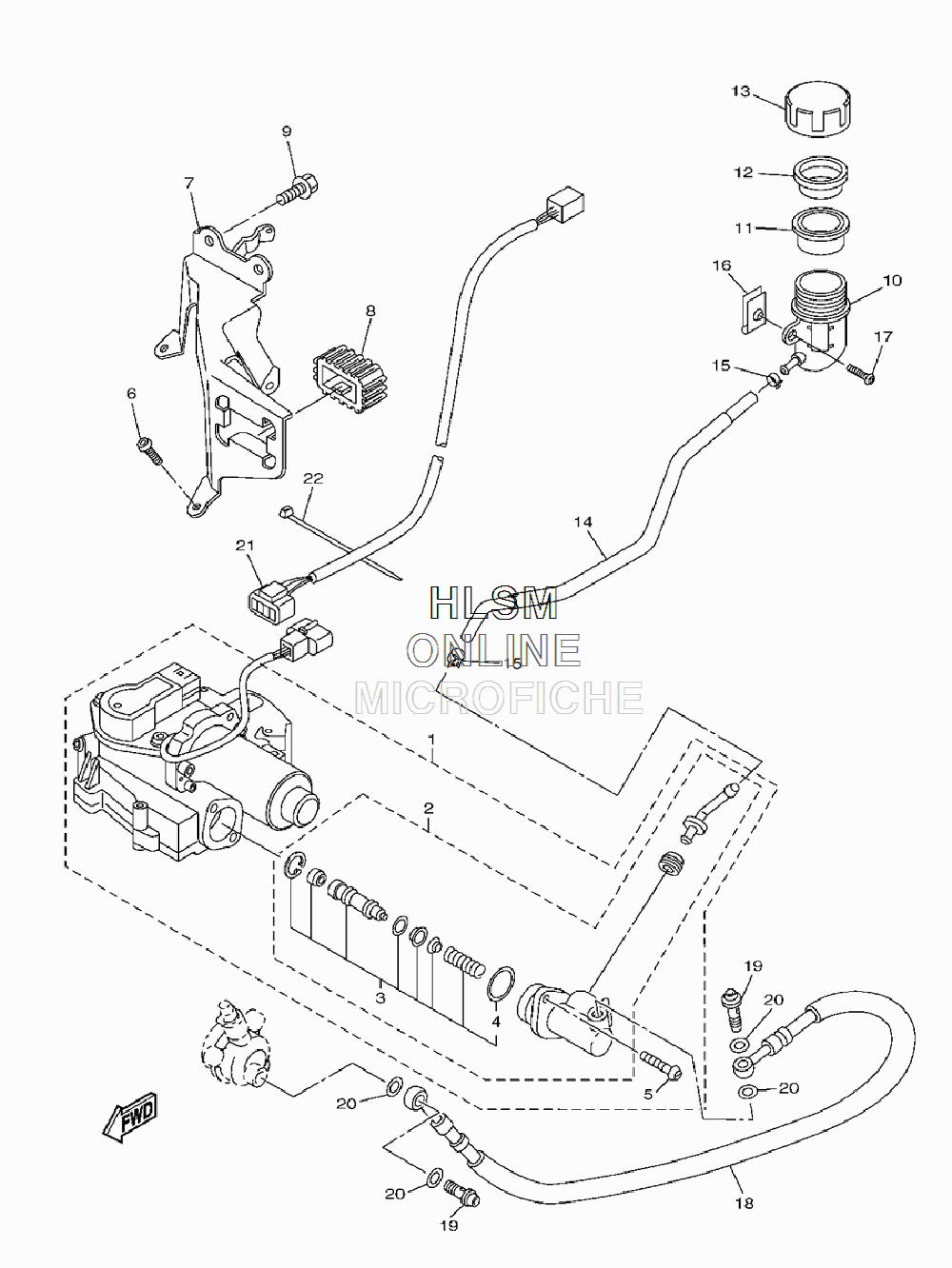

CLUCH ACTUATOR для Yamaha FJR1300AE ABS - 2009 года выпуска
-
№АртикулНазвание
-
12D2-82460-30-00 CLUCH ACTUATOR ASSYCLUCH ACTUATOR ASSY
-
22D2-W2645-10-00 MASTER CLUTCH SUB ASSYMASTER CLUTCH SUB ASSY
-
32D2-W0099-10-00 CYLINDER KIT, MASTER (CLUTCH)CYLINDER KIT, MASTER (CLUTCH)
-
493210-25552-00 O-RINGO-RING
-
590149-06116-00 SCREWSCREW
-
692012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
72D2-2117A-00-00 STAYSTAY
-
82D2-2139U-00-00 DAMPER 2DAMPER 2
-
995822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
104FM-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
113GK-25854-50-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
123GK-25855-50-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
134FM-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
142D2-2589E-00-00 HOSEHOSE
-
1590467-12191-00 CLIP, SCISSORCLIP, SCISSOR
-
1690183-06053-00 NUT, SPRINGNUT, SPRING
-
1790119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
182D2-26470-00-00 HOSE, CLUTCHHOSE, CLUTCH
-
1990401-10172-00 BOLT, UNIONBOLT, UNION
-
2090201-10118-00 WASHER, PLATEWASHER, PLATE
-
212D2-82507-00-00 WIRE, LEADWIRE, LEAD
-
225Y9-12491-00-00 CLAMP 1CLAMP 1
