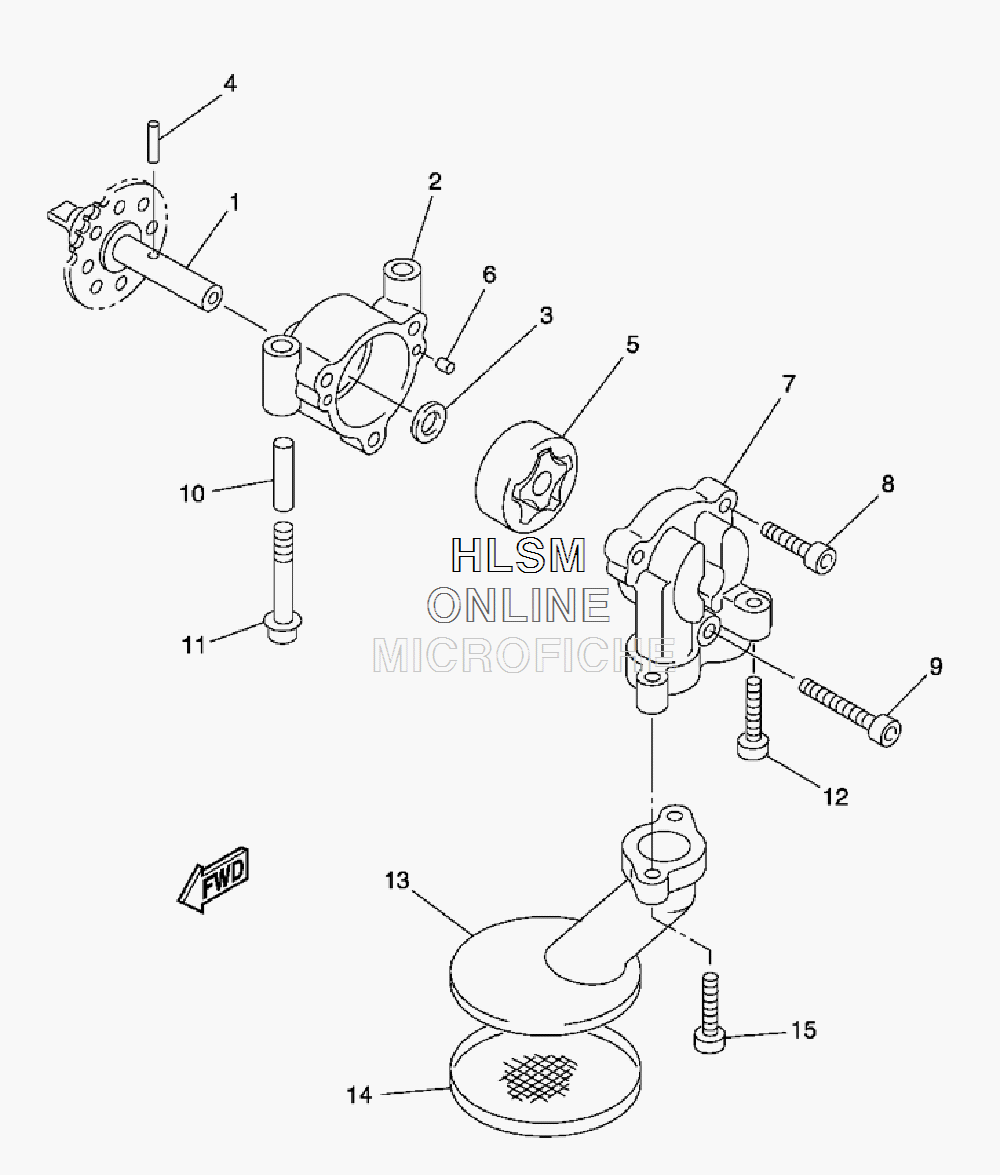

OIL PUMP для Yamaha FJR1300AE ABS - 2009 года выпуска
-
№АртикулНазвание
-
15JW-13330-00-00 PUMP SHAFT ASSYPUMP SHAFT ASSY
-
25JW-13316-00-00 COVER, PUMPCOVER, PUMP
-
390201-113K2-00 WASHER, PLATEWASHER, PLATE
-
493603-17070-00 PIN, DOWELPIN, DOWEL
-
55JW-13310-00-00 ROTOR ASSY 1ROTOR ASSY 1
-
693603-09106-00 PIN, DOWELPIN, DOWEL
-
75JW-13336-00-00 HOUSING, ROTORHOUSING, ROTOR
-
891312-06025-00 BOLTBOLT
-
991312-06040-00 BOLTBOLT
-
1091808-30031-00 PIN, DOWELPIN, DOWEL
-
1190110-06167-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290110-06169-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
135JW-13412-00-00 HOUSING, STRAINERHOUSING, STRAINER
-
145JW-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1590110-06174-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
