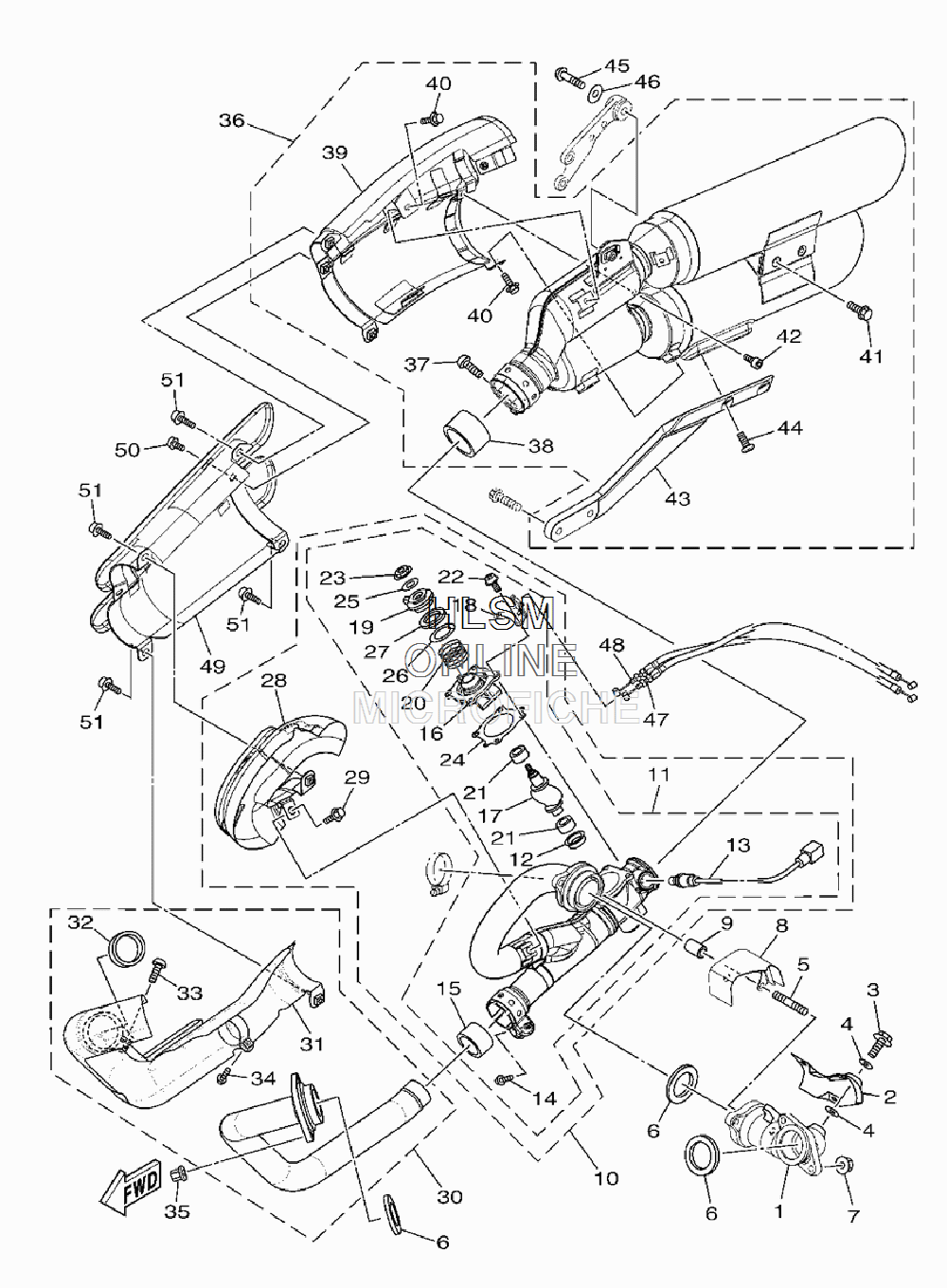

EXHAUST для Yamaha RAIDER S - 2009 года выпуска
-
№АртикулНазвание
-
11D7-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
21D7-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
395880-06012-00 BOLT, FLANGEBOLT, FLANGE
-
490201-05015-00 WASHER, PLATEWASHER, PLATE
-
595617-08630-00 BOLT, STUDBOLT, STUD
-
63EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
790185-08097-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
81D7-14624-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
990179-08022-00 NUTNUT
-
105C7-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
115C7-14611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
125VY-14816-00-00 PLUG, BLINDPLUG, BLIND
-
135C7-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
1492014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
155PX-14755-00-00 GASKET, SILENCERGASKET, SILENCER
-
161D7-14811-00-00 HOUSINGHOUSING
-
171D7-14821-00-00 ARM, SHAFT (VALVE)ARM, SHAFT (VALVE)
-
181D7-14849-00-00 BRACKETBRACKET
-
191D7-14865-00-00 PULLEYPULLEY
-
201D7-14856-00-00 SPRINGSPRING
-
215VY-14638-00-00 COLLARCOLLAR
-
2290110-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2390179-06063-00 NUTNUT
-
241D7-14643-00-00 GASKET 3GASKET 3
-
2592990-06200-00 WASHER, PLAINWASHER, PLAIN
-
265VY-14674-00-00 VALVE, PLATEVALVE, PLATE
-
275VY-14648-00-00 COLLAR 2COLLAR 2
-
285C7-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
2995024-06010-00 BOLT, FLANGEBOLT, FLANGE
-
305C7-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
315C7-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
325C7-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
3395024-08020-00 BOLT, FLANGEBOLT, FLANGE
-
3492014-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3590179-08410-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
365C7-14710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
3792014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
385YU-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
395C7-14738-00-00 PROTECTOR, MUFFLER 3PROTECTOR, MUFFLER 3
-
4095024-06010-00 BOLT, FLANGEBOLT, FLANGE
-
4195024-08020-00 BOLT, FLANGEBOLT, FLANGE
-
4291314-06010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
435C7-14772-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
4490111-08029-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4590110-08221-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4690201-087G2-00 WASHER, PLATEWASHER, PLATE
-
475C7-1133E-00-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
485C7-1133F-00-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
495C7-14627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
5090110-06288-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5190110-06301-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
