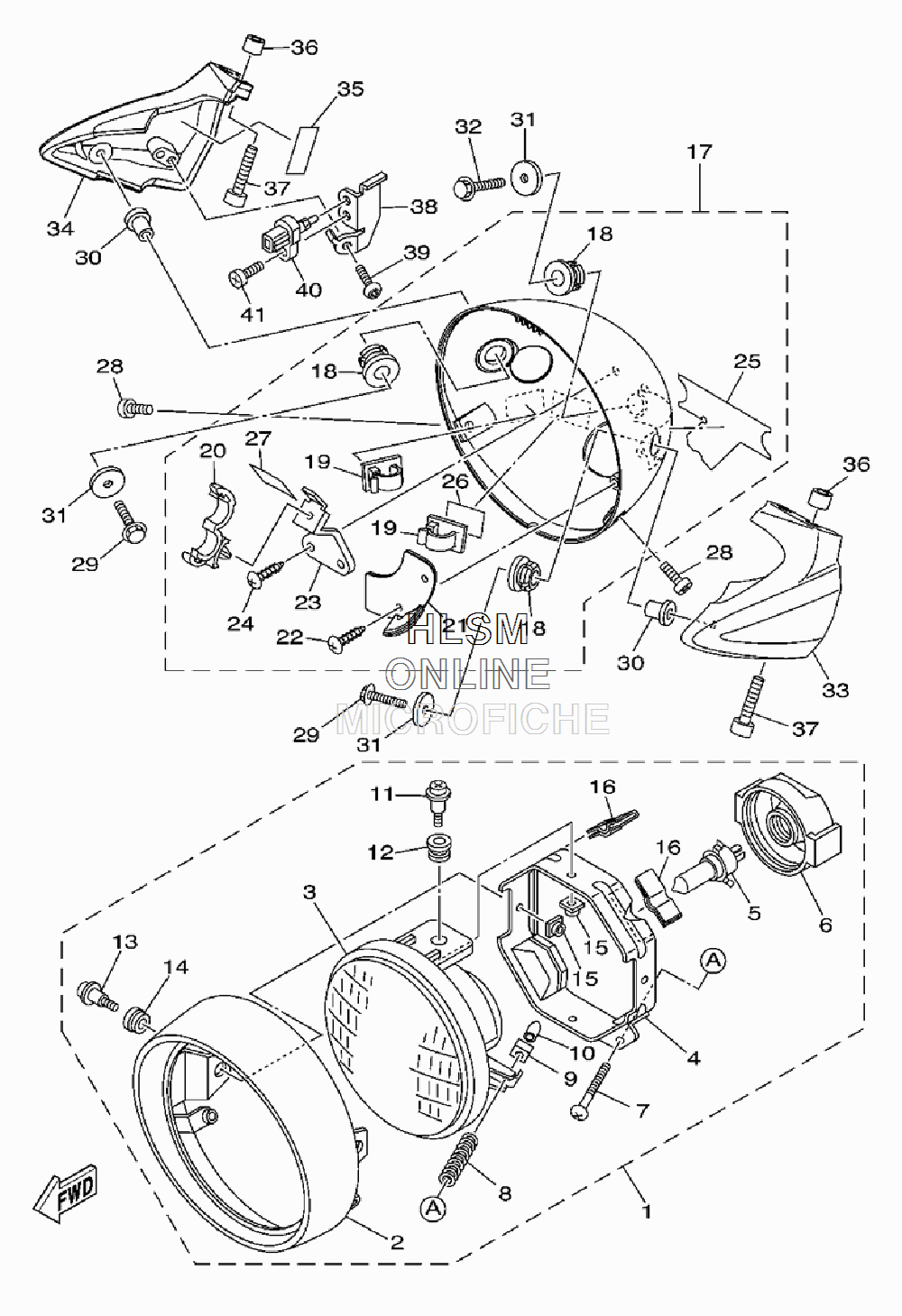

HEADLIGHT для Yamaha RAIDER S - 2009 года выпуска
-
№АртикулНазвание
-
15C7-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
25C7-84315-00-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
35PX-84320-00-00 LENS ASSYLENS ASSY
-
45PX-84318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
58G9-84314-00-00 BULB (12V-60/55W)BULB (12V-60/55W)
-
65PX-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
75PX-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
85PX-84332-00-00 SPRING, SCREWSPRING, SCREW
-
95PX-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
105PX-84385-00-00 CAP,1CAP,1
-
115PX-84325-00-00 SCREW, RIM FITTINGSCREW, RIM FITTING
-
125PX-84354-00-00 GROMMETGROMMET
-
135PX-84125-00-00 SCREW, RIM FITTINGSCREW, RIM FITTING
-
145PX-84352-00-00 GROMMETGROMMET
-
155PX-84317-00-00 NUTNUT
-
165PX-21669-01-00 SEALSEAL
-
175C7-84330-00-00 BODY ASSYBODY ASSY
-
185PX-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
1990464-13185-00 CLAMPCLAMP
-
2090464-18246-00 CLAMPCLAMP
-
215C7-84309-00-00 PLATE, SETPLATE, SET
-
2297702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
235C7-8431T-00-00 METAL, ADJUSTINGMETAL, ADJUSTING
-
2497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
255C7-8413G-00-00 PLATE, GUIDEPLATE, GUIDE
-
265C7-28307-00-00 SEALSEAL
-
272AL-84553-00-00 DAMPERDAMPER
-
2898980-05014-00 SCREW, BINDSCREW, BIND
-
2990105-06083-00 BOLT, FLANGEBOLT, FLANGE
-
3090387-06206-00 COLLARCOLLAR
-
3190201-060A3-00 WASHER, PLATEWASHER, PLATE
-
3295022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
335C7-84118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
345C7-84119-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
355C7-84143-00-00 DAMPER, HEADLIGHT STAYDAMPER, HEADLIGHT STAY
-
3691810-08012-00 PIN, DOWELPIN, DOWEL
-
3791312-08035-00 BOLTBOLT
-
385C7-8431R-00-00 STAY, SETTINGSTAY, SETTING
-
3992012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
405YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
4198507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
