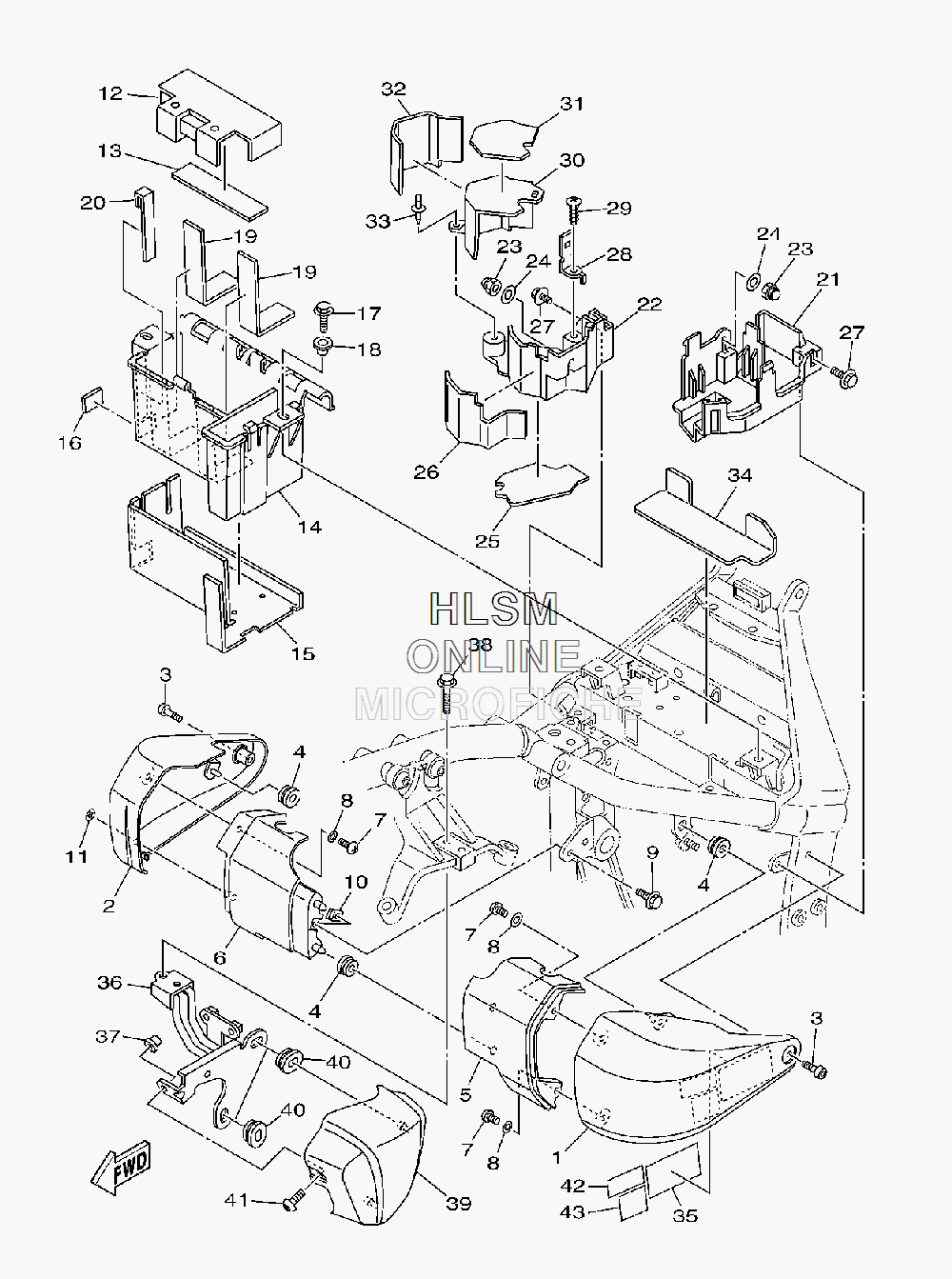

SIDE COVER для Yamaha ROAD STAR SILVERADO S - 2009 года выпуска
-
№АртикулНазвание
-
14WM-21711-01-PJ COVER, SIDE 1 LIGHT GRAY METALLIC 3 ( LGM3 / 0137 )COVER, SIDE 1 LIGHT GRAY METALLIC 3 ( LGM3 / 0137 )
-
24WM-21721-00-PJ COVER, SIDE 2 LIGHT GRAY METALLIC 3 ( LGM3 / 0137 )COVER, SIDE 2 LIGHT GRAY METALLIC 3 ( LGM3 / 0137 )
-
390149-06328-00 SCREWSCREW
-
490480-13567-00 GROMMETGROMMET
-
54WM-2117X-00-PK COVER 9 LIGHT GRAY METALLIC 3 ( LGM3 / 0137 )COVER 9 LIGHT GRAY METALLIC 3 ( LGM3 / 0137 )
-
64WM-2117Y-00-PK COVER 10 LIGHT GRAY METALLIC 3 ( LGM3 / 0137 )COVER 10 LIGHT GRAY METALLIC 3 ( LGM3 / 0137 )
-
798507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892907-06600-00 WASHER, PLATEWASHER, PLATE
-
995027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1090183-06100-00 NUT, SPRINGNUT, SPRING
-
1190183-05068-00 NUT, SPRINGNUT, SPRING
-
125VN-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
135PX-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
145VN-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
155VN-21732-10-00 SEAL 1SEAL 1
-
165VN-82118-00-00 SEAL, BATTERYSEAL, BATTERY
-
1795807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1890387-07717-00 COLLARCOLLAR
-
195VN-21746-00-00 DAMPERDAMPER
-
201AE-2834E-00-00 DAMPER 3DAMPER 3
-
215VN-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
225VN-2174E-00-00 STAY, SIDE COVER 2STAY, SIDE COVER 2
-
2390176-06003-00 NUT, CROWNNUT, CROWN
-
2490201-06035-00 WASHER, PLATEWASHER, PLATE
-
255VN-216A2-00-00 SEAL, 2SEAL, 2
-
265VN-216A3-00-00 SEAL, 3SEAL, 3
-
2790119-06007-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
285VN-82523-00-00 CLAMP, COUPLERCLAMP, COUPLER
-
2997707-50014-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
305VN-8234W-00-00 COVER, CAPCOVER, CAP
-
315VN-216A4-00-00 SEAL, 4SEAL, 4
-
325VN-21669-00-00 SEALSEAL
-
3390269-06001-00 RIVETRIVET
-
345VN-21267-10-00 SHEET 2SHEET 2
-
355VN-2179W-50-00 PLATE, EPA (NON CALIFORNIA)PLATE, EPA (NON CALIFORNIA)
-
355VN-2176P-51-00 PLATE, EPA (CALIFORNIA)PLATE, EPA (CALIFORNIA)
-
365VN-2175V-00-00 BRACKET 3BRACKET 3
-
3790179-05003-00 NUTNUT
-
3895807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
395VN-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
4090480-01558-00 GROMMETGROMMET
-
4190149-05299-00 SCREWSCREW
-
424YN-21684-00-00 PLATE, ROUTINGPLATE, ROUTING
-
435PX-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
