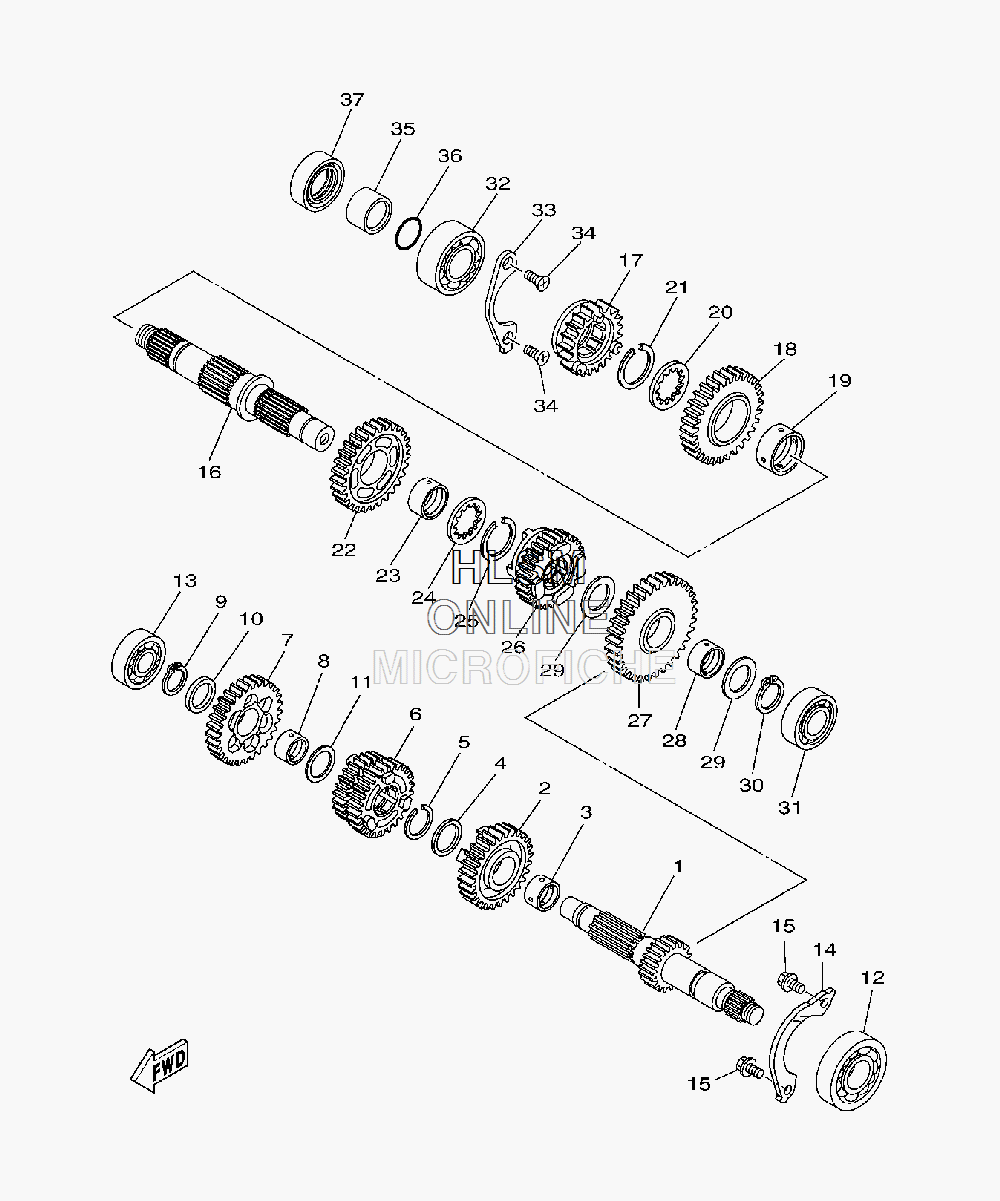

TRANSMISSION для Yamaha ROAD STAR SILVERADO S - 2009 года выпуска
-
№АртикулНазвание
-
15PX-17411-30-00 AXLE, MAIN (16T)AXLE, MAIN (16T)
-
25VN-17141-10-00 GEAR, 4TH PINION (32T)GEAR, 4TH PINION (32T)
-
390387-28010-00 COLLARCOLLAR
-
490209-25014-00 WASHERWASHER
-
593440-28062-00 CIRCLIPCIRCLIP
-
65YU-17121-01-00 GEAR, 2ND PINION (19/25T)GEAR, 2ND PINION (19/25T)
-
75VN-17151-10-00 GEAR, 5TH PINION (28T)GEAR, 5TH PINION (28T)
-
890387-23003-00 COLLARCOLLAR
-
993410-23056-00 CIRCLIPCIRCLIP
-
1090201-232K5-00 WASHER, PLATEWASHER, PLATE
-
1190201-23014-00 WASHER, PLATEWASHER, PLATE
-
1293306-37806-00 BEARINGBEARING
-
1393306-30441-00 BEARINGBEARING
-
145YU-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1590105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
165PX-17421-30-00 AXLE, DRIVEAXLE, DRIVE
-
175VN-17251-10-00 GEAR, 5TH WHEEL (21T)GEAR, 5TH WHEEL (21T)
-
185VN-17221-10-00 GEAR, 2ND WHEEL (30T)GEAR, 2ND WHEEL (30T)
-
1990387-350R5-00 COLLARCOLLAR
-
2090209-33008-00 WASHERWASHER
-
2193440-34025-00 CIRCLIPCIRCLIP
-
225YU-17231-00-00 GEAR, 3RD WHEEL (29T)GEAR, 3RD WHEEL (29T)
-
2390387-31003-00 COLLARCOLLAR
-
2490209-28008-00 WASHERWASHER
-
2593440-31187-00 CIRCLIPCIRCLIP
-
265VN-17241-10-00 GEAR, 4TH WHEEL (29T)GEAR, 4TH WHEEL (29T)
-
275YU-17211-00-00 GEAR, 1ST WHEEL (38T)GEAR, 1ST WHEEL (38T)
-
2890387-25013-00 COLLARCOLLAR
-
2990201-25017-00 WASHER, PLATEWASHER, PLATE
-
3093410-25017-00 CIRCLIPCIRCLIP
-
3193306-20550-00 BEARINGBEARING
-
3293305-20607-00 BEARINGBEARING
-
335YU-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3490151-06008-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
3590387-3015P-00 COLLARCOLLAR
-
3693210-27672-00 O-RINGO-RING
-
3793103-38184-00 OIL SEALOIL SEAL
