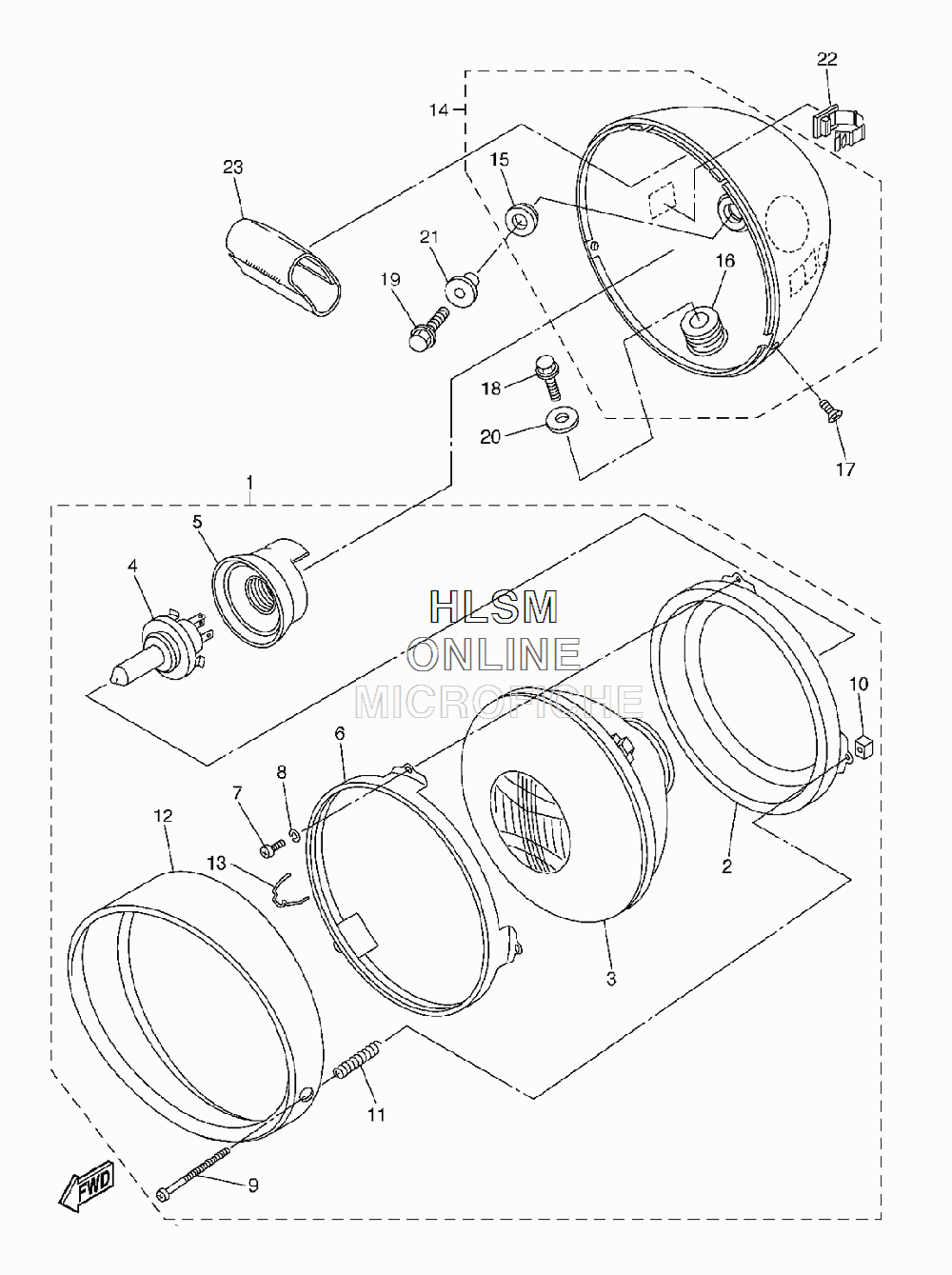

HEADLIGHT для Yamaha ROYAL STAR TOUR DELUXE S - 2009 года выпуска
-
№АртикулНазвание
-
11D6-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
21D6-84394-00-00 RING, MOUNTINGRING, MOUNTING
-
34NK-84320-00-00 LENS ASSYLENS ASSY
-
42F9-84314-00-00 BULB (12V-60/55W) (H4) HALOGENBULB (12V-60/55W) (H4) HALOGEN
-
53SX-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
62F9-84395-00-00 RING, RETAININGRING, RETAINING
-
798502-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892902-04100-00 WASHER, SPRINGWASHER, SPRING
-
9341-84331-60-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
10198-84334-60-00 NUT, ADJUSTINGNUT, ADJUSTING
-
115G2-84332-60-00 SPRING, SCREWSPRING, SCREW
-
121D6-84315-00-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
13290-84124-21-00 SPRING, SETSPRING, SET
-
144WM-84330-00-00 BODY ASSYBODY ASSY
-
1542X-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
164WM-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
1790152-05005-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1895027-06016-00 BOLT,WASHER BASEDBOLT,WASHER BASED
-
1995027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-060A3-00 WASHER, PLATEWASHER, PLATE
-
2190387-06049-00 COLLARCOLLAR
-
2290464-14002-00 CLAMPCLAMP
-
235VN-8412H-00-00 STAY SETTINGSTAY SETTING
