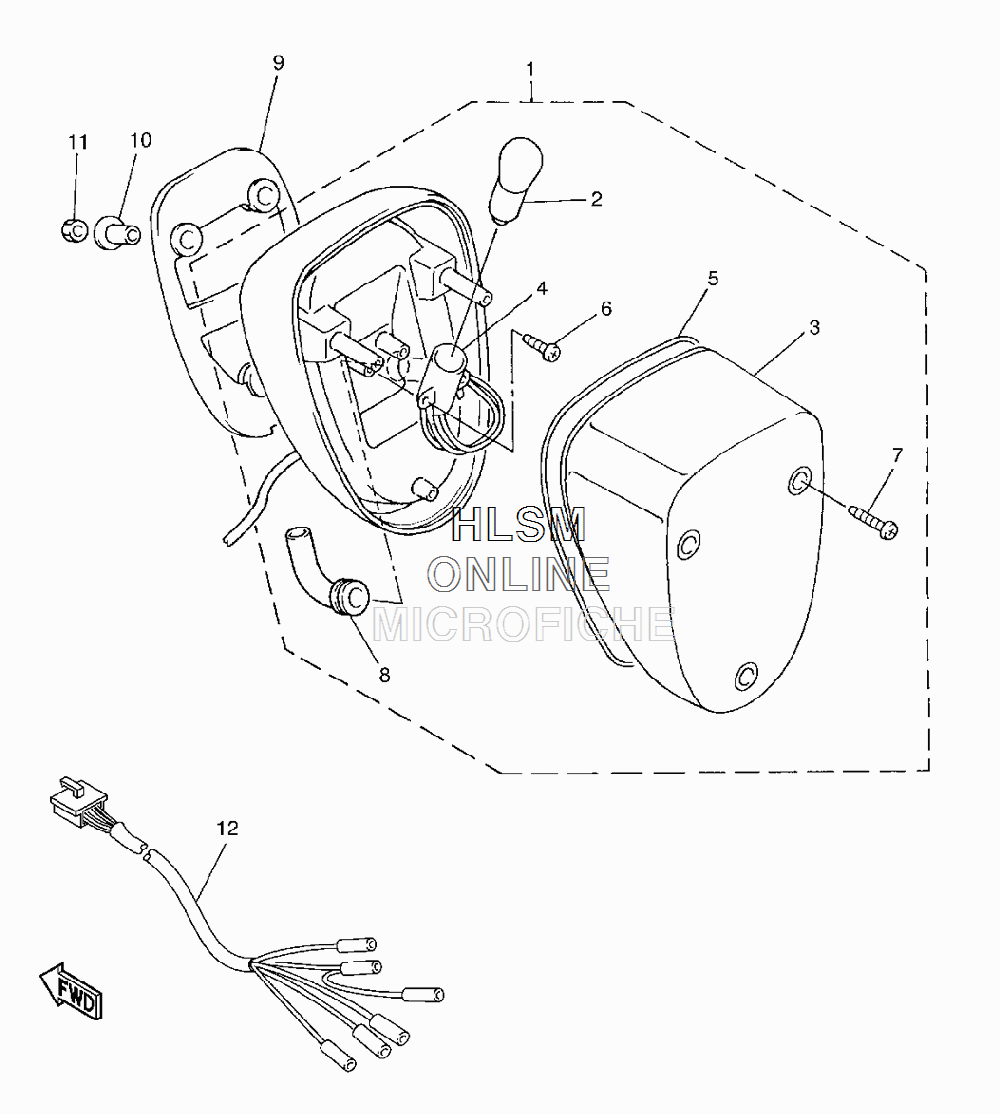

TAILLIGHT для Yamaha ROYAL STAR TOUR DELUXE S - 2009 года выпуска
-
№АртикулНазвание
-
15BN-84700-01-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
2256-84714-60-00 BULB (12V32/3CP)BULB (12V32/3CP)
-
34NK-84721-00-00 LENS, TAILLIGHTLENS, TAILLIGHT
-
45BN-84735-00-00 CORD ASSYCORD ASSY
-
54NK-84702-00-00 SEALSEAL
-
697707-40516-00 SCREW,TAPPING (4HP)SCREW,TAPPING (4HP)
-
797780-40525-00 SCREW, TAPPINGSCREW, TAPPING
-
85BN-84154-00-00 GROMMETGROMMET
-
94NK-84527-01-00 DAMPERDAMPER
-
1090387-063E6-00 COLLARCOLLAR
-
1195307-06600-00 NUT (6TA)NUT (6TA)
-
121D6-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
