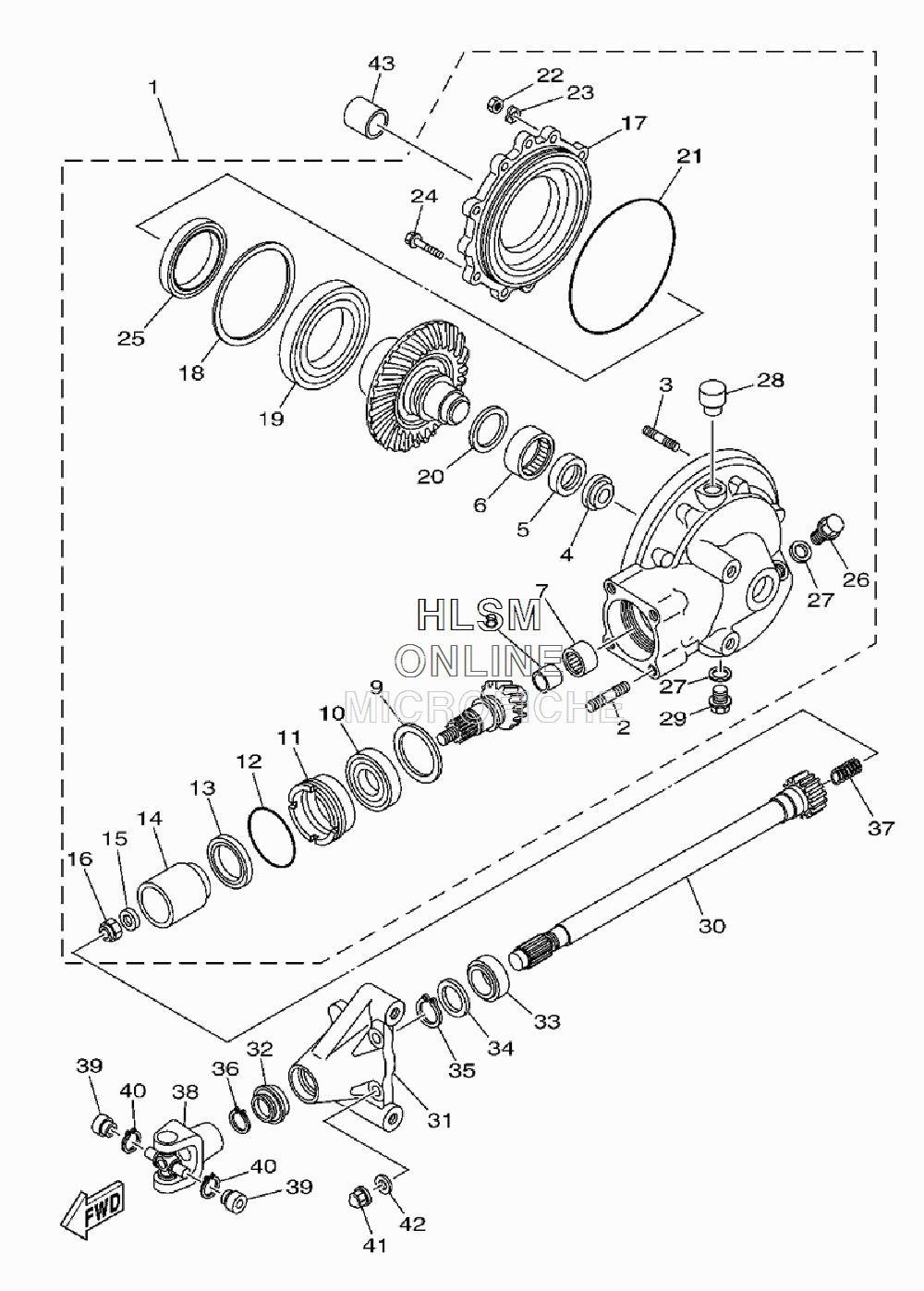

DRIVE SHAFT для Yamaha V STAR 1100 SILVERADO - 2009 года выпуска
-
№АртикулНазвание
-
15EL-46101-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
290116-10593-00 BOLT, STUDBOLT, STUD
-
390116-08360-00 BOLT, STUDBOLT, STUD
-
45EL-46153-00-00 COLLAR, GUIDECOLLAR, GUIDE
-
593101-30084-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
693311-43729-00 BEARING, CYL.#11BEARING, CYL.#11
-
793317-41510-00 BEARINGBEARING
-
82H7-46122-00-00 RACE, INNERRACE, INNER
-
91J7-17537-Y0-30 SHIM, THRUST (0.30T)SHIM, THRUST (0.30T)
-
91J7-17537-Y0-50 SHIM, THRUST (0.50T)SHIM, THRUST (0.50T)
-
91J7-17537-Y0-40 SHIM, THRUST (0.40T)SHIM, THRUST (0.40T)
-
1093306-30533-00 BEARINGBEARING
-
114H7-46125-00-00 RETAINER, BEARINGRETAINER, BEARING
-
1293210-60426-00 O-RINGO-RING
-
1393101-38098-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
144H7-46123-01-00 COUPLING, GEARCOUPLING, GEAR
-
1590201-14632-00 WASHER, PLATEWASHER, PLATE
-
1690185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
174H7-46152-00-00 HOUSING, BEARINGHOUSING, BEARING
-
181J7-46117-Y0-25 SHIM, RING GEAR (0.25T)SHIM, RING GEAR (0.25T)
-
181J7-46117-Y0-30 SHIM, RING GEAR (0.30T)SHIM, RING GEAR (0.30T)
-
181J7-46117-Y0-40 SHIM, RING GEAR (0.40T)SHIM, RING GEAR (0.40T)
-
181J7-46117-Y0-50 SHIM, RING GEAR (0.50T)SHIM, RING GEAR (0.50T)
-
1993316-01403-00 BEARING, CYL.#16BEARING, CYL.#16
-
2022U-46118-00-12 SHIM, THRUST (1.2T)SHIM, THRUST (1.2T)
-
2022U-46118-00-14 SHIM, THRUST (1.4T)SHIM, THRUST (1.4T)
-
2022U-46118-00-16 SHIM, THRUST (1.6T)SHIM, THRUST (1.6T)
-
2022U-46118-00-18 SHIM, THRUST (1.8T)SHIM, THRUST (1.8T)
-
2022U-46118-00-20 SHIM, THRUST (2.0T)SHIM, THRUST (2.0T)
-
2193211-44348-00 O-RINGO-RING
-
2295317-08600-00 NUTNUT
-
2392907-08700-00 WASHERWASHER
-
2495817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2593102-70167-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2690340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
27214-11198-01-00 GASKETGASKET
-
2856W-17590-00-00 BREATHER COMP.BREATHER COMP.
-
2990340-14004-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
305EL-46171-00-00 SHAFT DRIVE ASSYSHAFT DRIVE ASSY
-
315EL-46154-00-00 COVER, HOUSINGCOVER, HOUSING
-
325EL-46297-00-00 COVER, DUSTCOVER, DUST
-
3393108-43014-00 OIL SEALOIL SEAL
-
3490201-266L1-00 WASHER, PLATEWASHER, PLATE
-
3593410-26067-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
3693410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
3790501-16491-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
384X7-46180-00-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
3993311-21044-00 BEARINGBEARING
-
4093440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
4190176-10075-00 NUT, CROWNNUT, CROWN
-
4292990-10600-00 WASHER, PLATEWASHER, PLATE
-
4390387-172A5-00 COLLARCOLLAR
