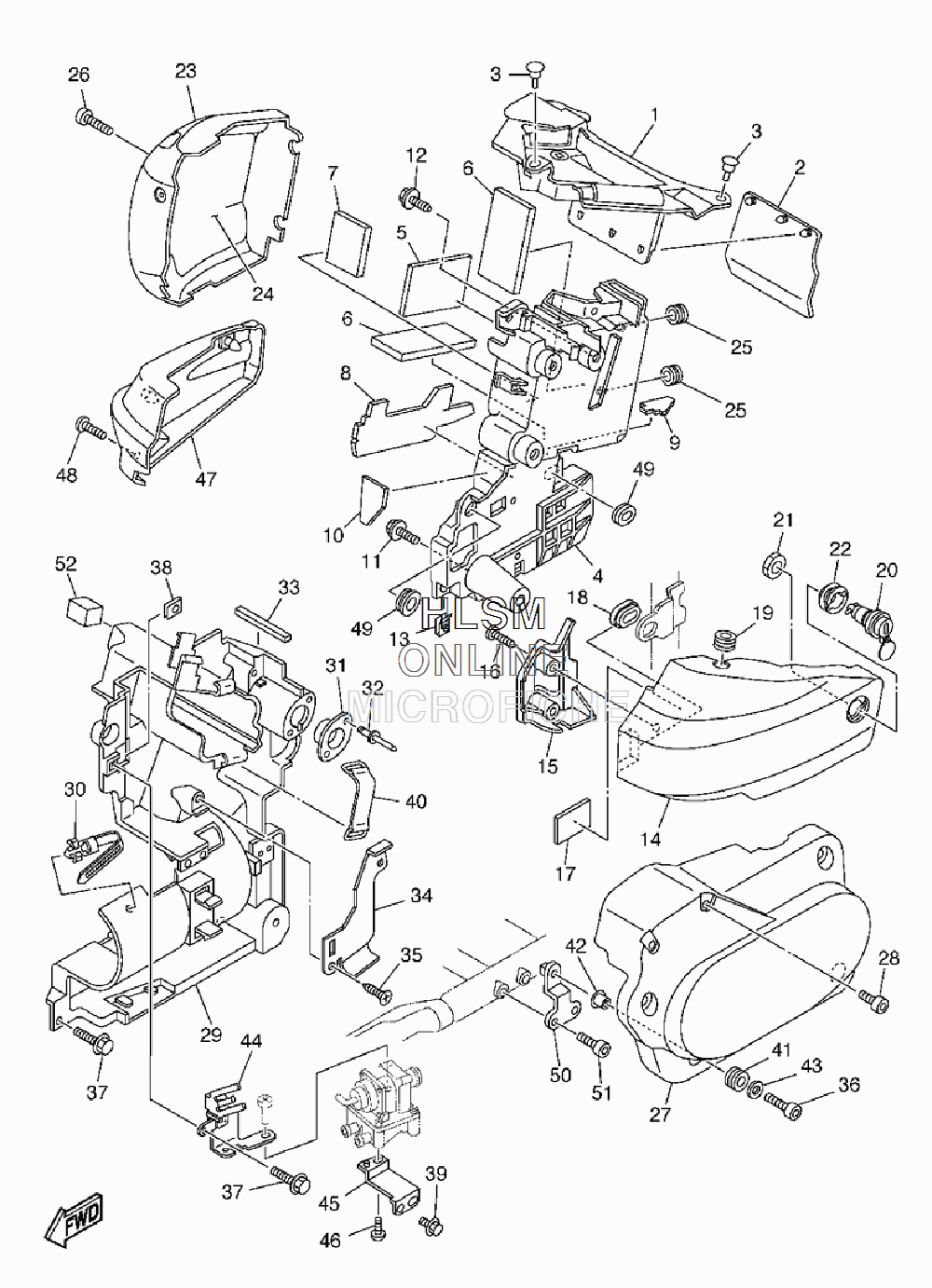

SIDE COVER для Yamaha V STAR 1100 SILVERADO - 2009 года выпуска
-
№АртикулНазвание
-
15KS-2177B-00-00 LID, COVERLID, COVER
-
230X-21621-00-00 FLAPFLAP
-
390269-07077-00 RIVETRIVET
-
45KS-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
529N-14425-00-00 DAMPER 1DAMPER 1
-
65Y1-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
7M12-T133A-00-00 SEAT, DAMPER ASEAT, DAMPER A
-
85EL-2172A-10-00 PANEL 1PANEL 1
-
95EL-2172F-00-00 PANEL 2PANEL 2
-
105EL-2172G-00-00 PANEL 3PANEL 3
-
1190119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390183-06053-00 NUT, SPRINGNUT, SPRING
-
145KS-21711-00-P8 COVER, SIDE 1 (SMX)COVER, SIDE 1 (SMX)
-
145KS-21711-00-PC COVER, SIDE 1 (DPBML)COVER, SIDE 1 (DPBML)
-
155EL-2171Y-00-00 GRILLE, SIDE COVER 1GRILLE, SIDE COVER 1
-
1697707-50014-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
173YL-12232-00-00 DAMPERDAMPER
-
1890480-01558-00 GROMMETGROMMET
-
1990480-12550-00 GROMMETGROMMET
-
2055K-21708-00-00 LOCK ASSY 2LOCK ASSY 2
-
2190170-22187-00 NUTNUT
-
2290480-24186-00 GROMMETGROMMET
-
235KS-21721-00-P8 COVER, SIDE 2 (SMX)COVER, SIDE 2 (SMX)
-
235KS-21721-00-PC COVER,SIDE 2 (DPBML)COVER,SIDE 2 (DPBML)
-
245KS-2172A-00-00 PANEL 1PANEL 1
-
2590480-12320-00 GROMMETGROMMET
-
2690149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
275EL-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
2890110-06254-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
295EL-2177E-01-00 LIDLID
-
3090464-12089-00 CLAMPCLAMP
-
314TR-2175H-00-00 STAY, LOCKSTAY, LOCK
-
3290267-40180-00 RIVET, BLINDRIVET, BLIND
-
331FK-83526-00-00 DAMPER 2DAMPER 2
-
345EL-2178L-00-00 GUIDE 1GUIDE 1
-
3597707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
3691314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3790119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3890183-06053-00 NUT, SPRINGNUT, SPRING
-
3995807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
403TJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
4190480-10289-00 GROMMETGROMMET
-
4290387-066Y6-00 COLLARCOLLAR
-
4390201-06062-00 WASHER, PLATEWASHER, PLATE
-
445KS-2172K-00-00 BRACKET 1BRACKET 1
-
455EL-2172L-00-00 BRACKET 2BRACKET 2
-
4692017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
475EL-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
4890149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
4990480-01558-00 GROMMETGROMMET
-
505EL-2172M-00-00 BRACKET 3BRACKET 3
-
5191317-06020-00 BOLTBOLT
-
525EL-21746-00-00 DAMPERDAMPER
