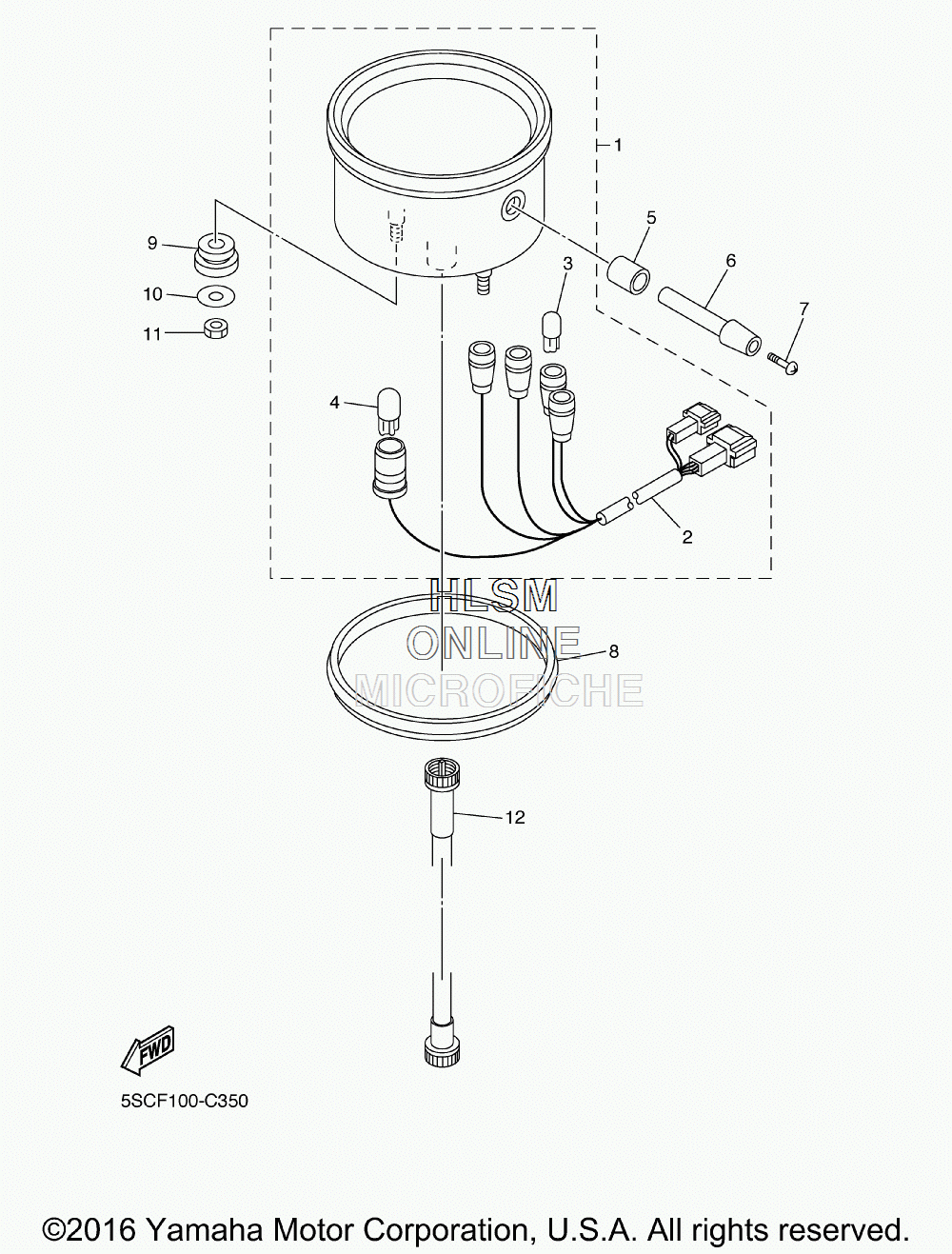

INSTRUMENT PANEL для Yamaha V STAR 650 SILVERADO [ XVS65ATYB/R/CB/CR] (4C5V/4C5W) - 2009 года выпуска
-
№АртикулНазвание
-
15SC-83580-50-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
25SC-83520-20-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
32GV-83517-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
-
41YT-83517-00-00 ...BULB (12V-1.7W T10)...BULB (12V-1.7W T10)
-
54TR-83535-00-00 TUBETUBE
-
61JK-83578-00-00 KNOB, TRIP METERKNOB, TRIP METER
-
790157-02031-00 SCREW, PAN HEADSCREW, PAN HEAD
-
84TR-83513-00-00 DAMPERDAMPER
-
94TR-83526-00-00 DAMPER 2DAMPER 2
-
1090201-05033-00 WASHER, PLATEWASHER, PLATE
-
1195307-05700-00 NUTNUT
-
125BN-83550-02-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
