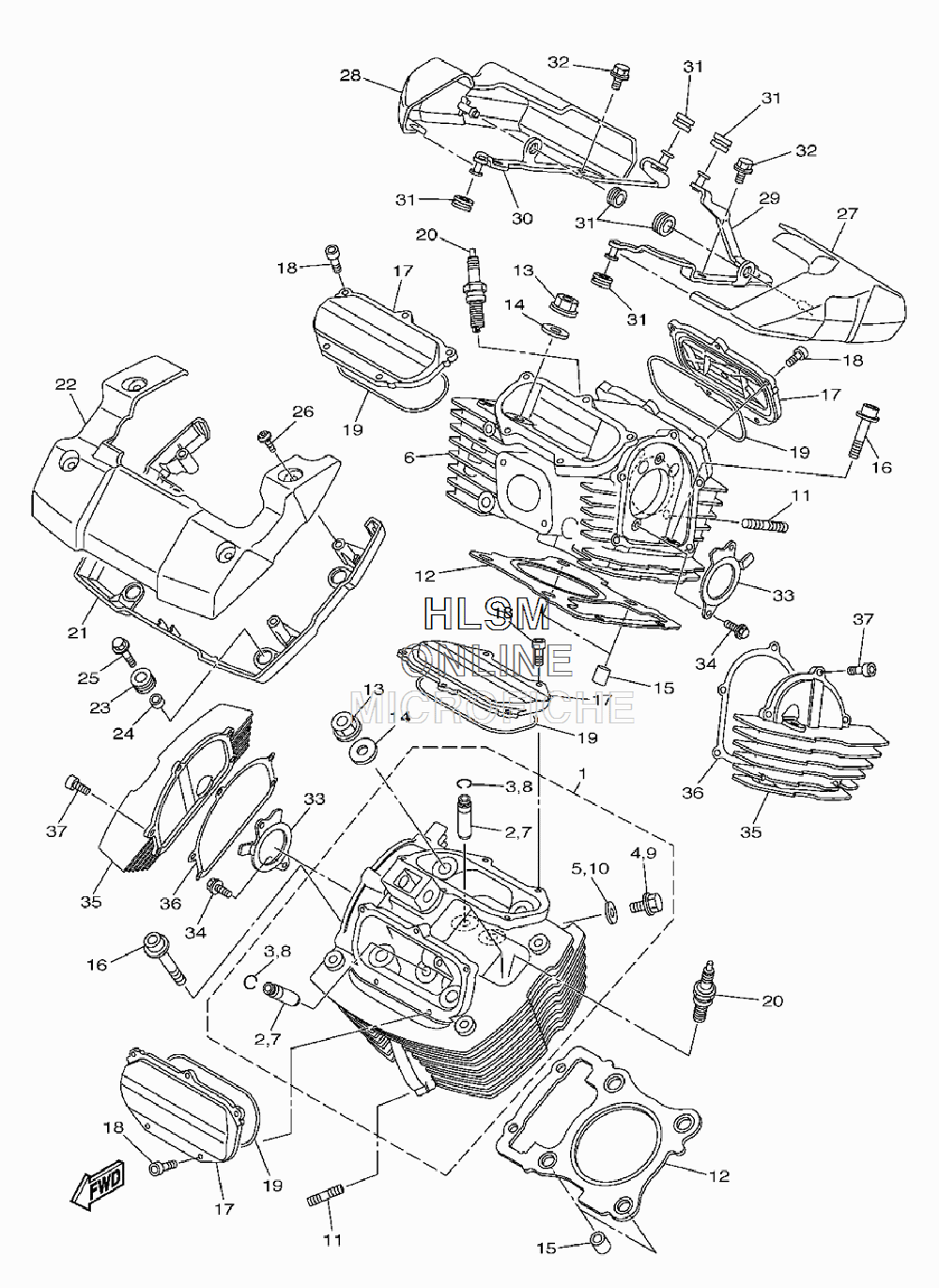

CYLINDER HEAD для Yamaha V STAR 950 TOURER - 2009 года выпуска
-
№АртикулНазвание
-
15S7-11101-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24G0-11133-11-00 GUIDE, VALVE 1GUIDE, VALVE 1
-
393440-10085-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
495022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
590430-08119-00 GASKETGASKET
-
65S7-11101-10-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
74G0-11133-11-00 GUIDE, INTAKE VALVEGUIDE, INTAKE VALVE
-
893440-10085-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
995022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1090430-08119-00 GASKETGASKET
-
1195612-08625-00 BOLT, STUDBOLT, STUD
-
125S7-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1390179-12004-00 NUTNUT
-
1490201-12025-00 WASHER, PLATEWASHER, PLATE
-
1591815-16017-00 PIN, DOWELPIN, DOWEL
-
1690110-08065-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
175S7-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1891312-06016-00 BOLTBOLT
-
195S7-11196-00-00 GASKET, CYLINDER HEAD SIDEGASKET, CYLINDER HEAD SIDE
-
20NGK-CPR7E-A9-00 PLUG, SPARK (NGK CPR7EA)PLUG, SPARK (NGK CPR7EA)
-
215S7-1111M-00-00 COVER 1COVER 1
-
225S7-1111N-00-00 COVER 2COVER 2
-
2390480-14027-00 GROMMETGROMMET
-
2490387-084N8-00 COLLARCOLLAR
-
2590119-08M51-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2690149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
275S7-1111P-00-00 COVER 3COVER 3
-
285S7-1111R-00-00 COVER 4COVER 4
-
295S7-1112F-00-00 PLATE 2PLATE 2
-
305S7-1113F-00-00 PLATE 3PLATE 3
-
3190480-10627-00 GROMMETGROMMET
-
3295822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
335S7-1111F-00-00 PLATEPLATE
-
3495022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
355S7-11185-00-00 COVER, CYLINDER HEAD SIDE 1COVER, CYLINDER HEAD SIDE 1
-
365S7-11195-00-00 GASKETGASKET
-
3790110-06274-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
