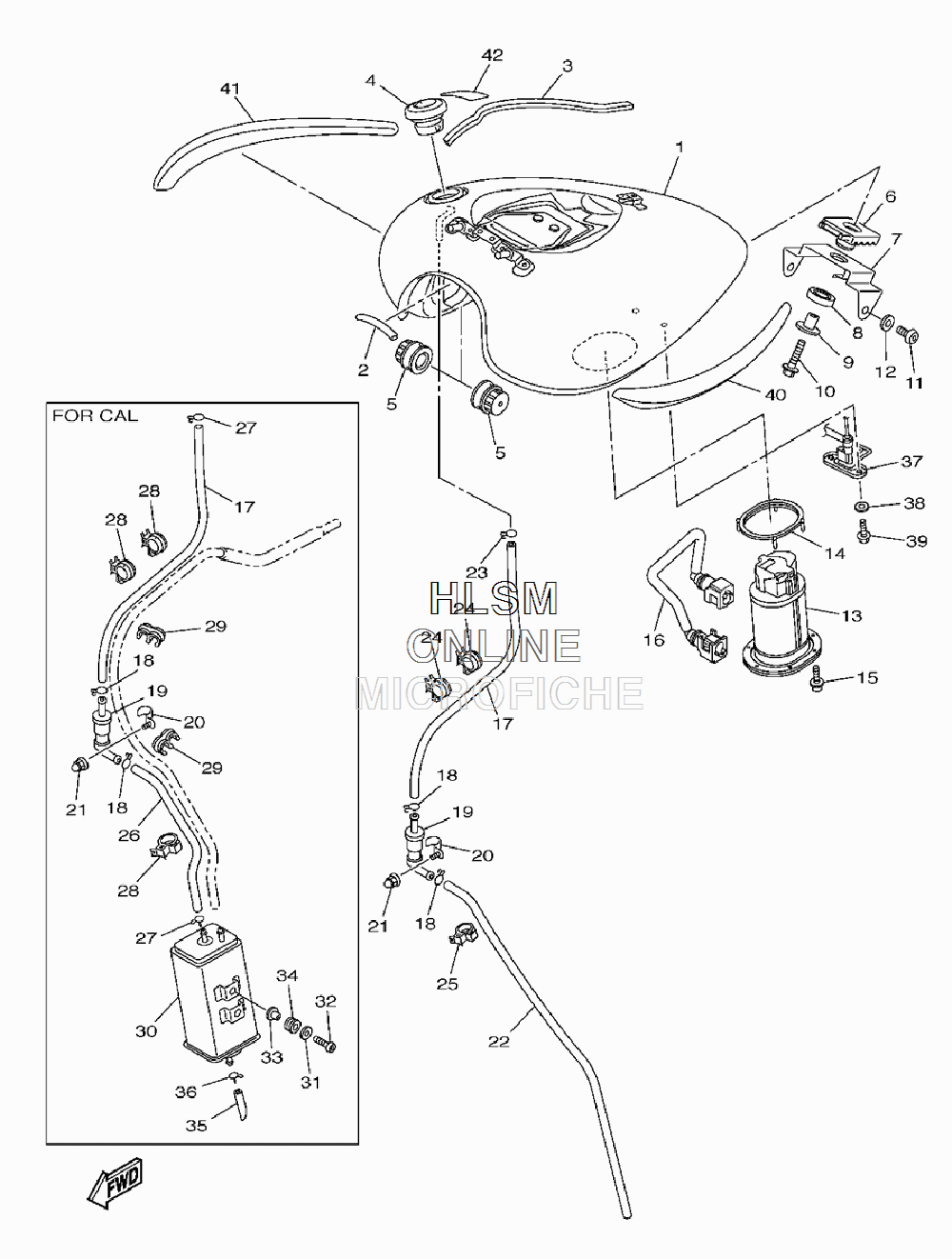

FUEL TANK для Yamaha V STAR 950 TOURER - 2009 года выпуска
-
№АртикулНазвание
-
15S7-YK241-00-P0 FUEL TANK COMP. FOR SMXFUEL TANK COMP. FOR SMX
-
15S7-YK241-00-P1 FUEL TANK COMP. FOR VDRM2FUEL TANK COMP. FOR VDRM2
-
24BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
35S7-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
44NK-24602-12-00 CAP ASSYCAP ASSY
-
55S7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
61D7-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
75S7-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
84TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
990387-06177-00 COLLARCOLLAR
-
1095812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1192012-08014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290201-08M01-00 WASHER, PLATEWASHER, PLATE
-
135S7-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
145VN-24486-00-00 O-RINGO-RING
-
1590110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
165S7-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
175S7-24313-00-00 PIPE 3PIPE 3
-
1890467-09103-00 CLIP, SCISSORCLIP, SCISSOR
-
195RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
205S7-24136-00-00 CLAMP 2CLAMP 2
-
2190176-05004-00 NUT, CROWNNUT, CROWN
-
2290445-115K4-00 HOSE (L450)HOSE (L450)
