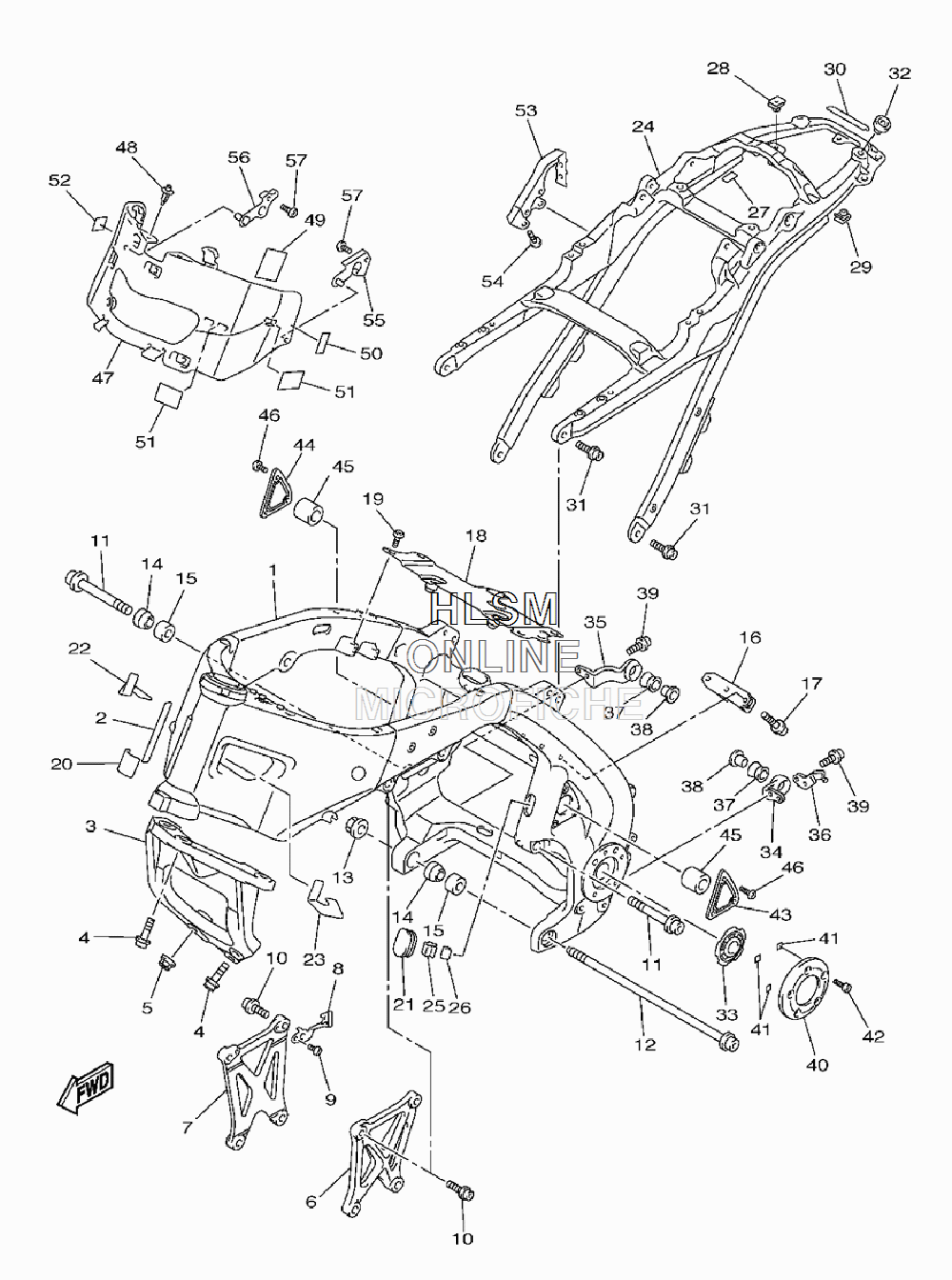

FRAME для Yamaha VMAX - 2009 года выпуска
-
№АртикулНазвание
-
12S3-21110-00-00 FRAME COMP.FRAME COMP.
-
23HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
32S3-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
490110-12005-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
595604-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
62S3-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
72S3-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
82S3-21396-00-00 STAY, COUPLERSTAY, COUPLER
-
992014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1090110-10019-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190110-12003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290110-12004-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1395604-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
142S3-21414-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
152S3-21424-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
162S3-2213E-00-00 BRACKET, REAR CUSHION 1BRACKET, REAR CUSHION 1
-
1790111-10006-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
182S3-21131-00-00 BRACKETBRACKET
-
1992012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
202S3-21268-00-00 SEALSEAL
-
212S3-2172W-00-00 COVERCOVER
-
222S3-21266-00-00 SHEET 1SHEET 1
-
232S3-21267-00-00 SHEET 2SHEET 2
-
242S3-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
2590468-070A0-00 CLIPCLIP
-
262S3-2111D-00-00 SEAL 1SEAL 1
-
273SP-21732-00-00 SEAL 1SEAL 1
-
2890183-05076-00 NUT, SPRINGNUT, SPRING
-
2990183-06069-00 NUT, SPRINGNUT, SPRING
-
303HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
3190109-105G7-00 BOLTBOLT
-
3222W-24741-00-00 PAD, SEATPAD, SEAT
-
332S3-2117N-00-00 COVER 3COVER 3
-
342S3-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
352S3-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
362S3-27267-00-00 GUIDE, WIREGUIDE, WIRE
-
375VY-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
3890387-08021-00 COLLARCOLLAR
-
3990109-06014-00 BOLTBOLT
-
402S3-2117F-00-00 COVERCOVER
-
412TV-21639-00-00 DAMPER 2DAMPER 2
-
4290110-06254-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
432S3-2118E-00-00 EMBLEM 1EMBLEM 1
-
442S3-2118F-00-00 EMBLEM 2EMBLEM 2
-
452S3-2113B-00-00 DAMPERDAMPER
-
4690149-06145-00 SCREWSCREW
-
472S3-2121A-00-00 PANEL, 1PANEL, 1
-
4890269-07008-00 RIVETRIVET
-
495JW-2139X-00-00 DAMPERDAMPER
-
502D1-21649-00-00 DAMPERDAMPER
-
512AL-84553-00-00 DAMPERDAMPER
-
521UF-15379-00-00 SEALSEAL
-
532S3-2164J-00-00 STAY 4STAY 4
-
5492012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
552S3-2612K-00-00 BRKT 2BRKT 2
-
562S3-2612L-00-00 BRACKET 3BRACKET 3
-
5790111-06085-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
