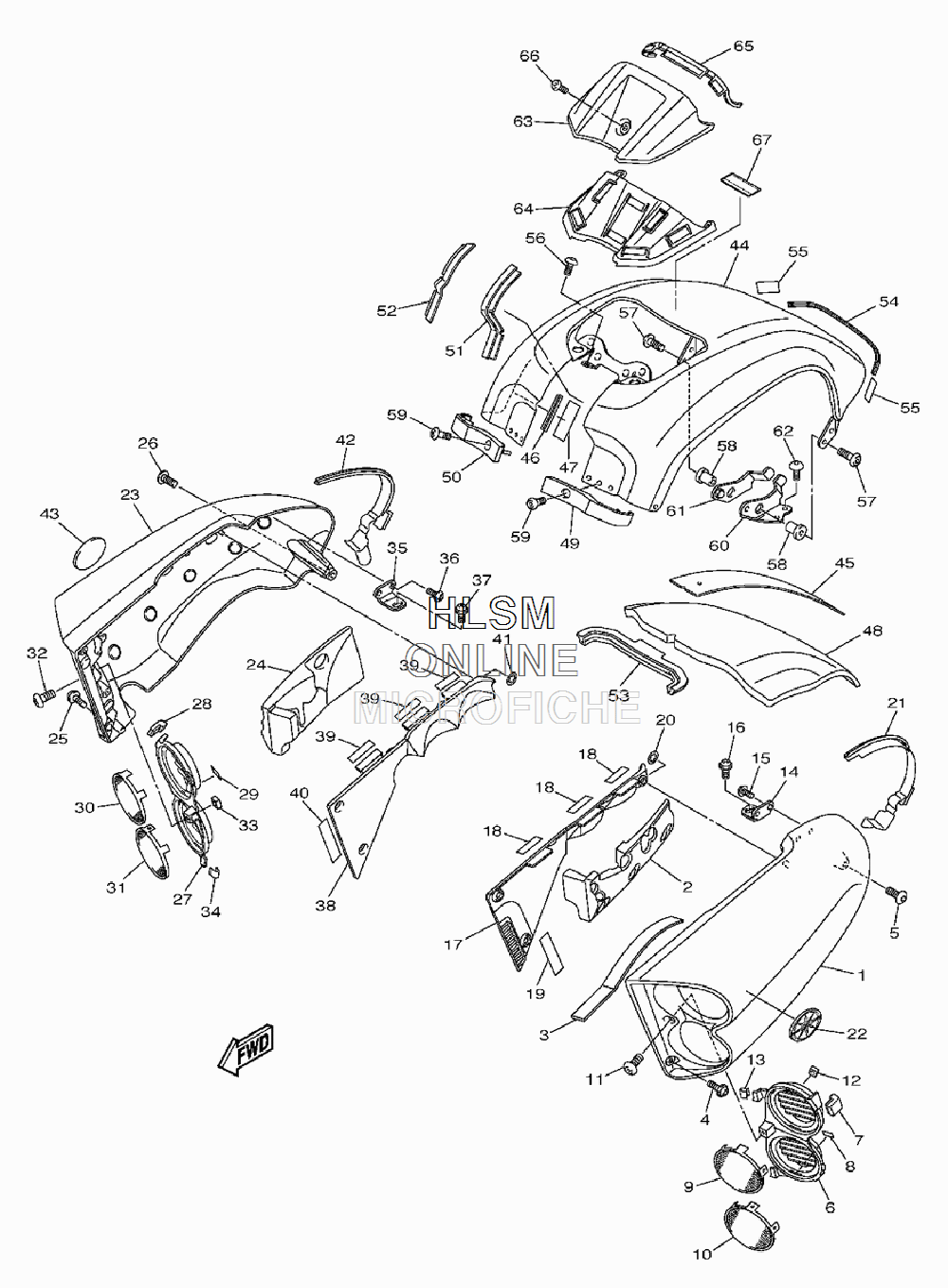

SIDE COVER для Yamaha VMAX - 2009 года выпуска
-
№АртикулНазвание
-
12S3-21711-00-P0 COVER, SIDE 1 FOR SILVER 8COVER, SIDE 1 FOR SILVER 8
-
22S3-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
35C7-21649-00-00 DAMPERDAMPER
-
490111-06015-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
590111-06041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
62S3-2172H-00-00 PANEL 4PANEL 4
-
72S3-2177M-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
81HX-27415-00-00 PLATE, DAMPERPLATE, DAMPER
-
92S3-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
102S3-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
1192014-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290173-05006-00 NUT, SQUARENUT, SQUARE
-
131FK-2171H-00-00 GUIDEGUIDE
-
142S3-2172U-00-00 BRKT 7BRKT 7
-
1590111-05032-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1690111-06009-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
172S3-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
182S3-21732-00-00 SEAL 1SEAL 1
-
192S3-2173N-00-00 SEAL 4SEAL 4
-
2090183-06008-00 NUT, SPRINGNUT, SPRING
-
212S3-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
222S3-2173B-00-00 EMBLEM 3DEMBLEM 3D
-
232S3-21721-00-P0 COVER, SIDE 2 FOR SILVER 8COVER, SIDE 2 FOR SILVER 8
-
242S3-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
2590111-06015-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2690111-06041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
272S3-2172J-00-00 PANEL, 5PANEL, 5
-
282S3-2177M-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
291HX-27415-00-00 PLATE, DAMPERPLATE, DAMPER
-
302S3-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
312S3-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
3292014-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3390173-05006-00 NUT, SQUARENUT, SQUARE
-
341FK-2171H-00-00 GUIDEGUIDE
-
352S3-2172V-00-00 BRKT 8BRKT 8
-
3690111-05032-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3790111-06009-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
382S3-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
392S3-21732-00-00 SEAL 1SEAL 1
-
402S3-2173N-00-00 SEAL 4SEAL 4
-
4190183-06008-00 NUT, SPRINGNUT, SPRING
-
422S3-2171M-00-00 MOLE, SIDE COVER 2MOLE, SIDE COVER 2
-
432S3-2174B-00-00 EMBLEM 3DEMBLEM 3D
-
442S3-YK217-00-P1 COVER, TOP (SMM)COVER, TOP (SMM)
-
452S3-2175G-00-00 REINF.REINF.
-
462S3-28347-00-00 MOLE 3MOLE 3
-
472AL-84553-00-00 DAMPERDAMPER
-
482S3-28371-00-00 DAMPERDAMPER
-
492S3-2174X-00-00 DAMPERDAMPER
-
502S3-2174Y-00-00 DAMPERDAMPER
-
512S3-2171N-00-00 MOLE, SIDE COVER 3MOLE, SIDE COVER 3
-
522S3-2171R-00-00 MOLE, SIDE COVER 4MOLE, SIDE COVER 4
-
532S3-2171T-00-00 MOLE, SIDE COVER 5MOLE, SIDE COVER 5
-
542S3-2171U-00-00 MOLE, SIDE COVER 6MOLE, SIDE COVER 6
-
552AL-84553-00-00 DAMPERDAMPER
-
5692014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5792017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5890179-06524-00 NUTNUT
-
5990111-06132-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
602S3-2172M-00-00 BRACKET 3BRACKET 3
-
612S3-2172N-00-00 BRACKET 4BRACKET 4
-
6290111-06049-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
632S3-83559-00-00 COVER, METERCOVER, METER
-
642S3-28345-00-00 MOLE 1MOLE 1
-
652S3-28346-00-00 MOLE 2MOLE 2
-
6692014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
675GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
