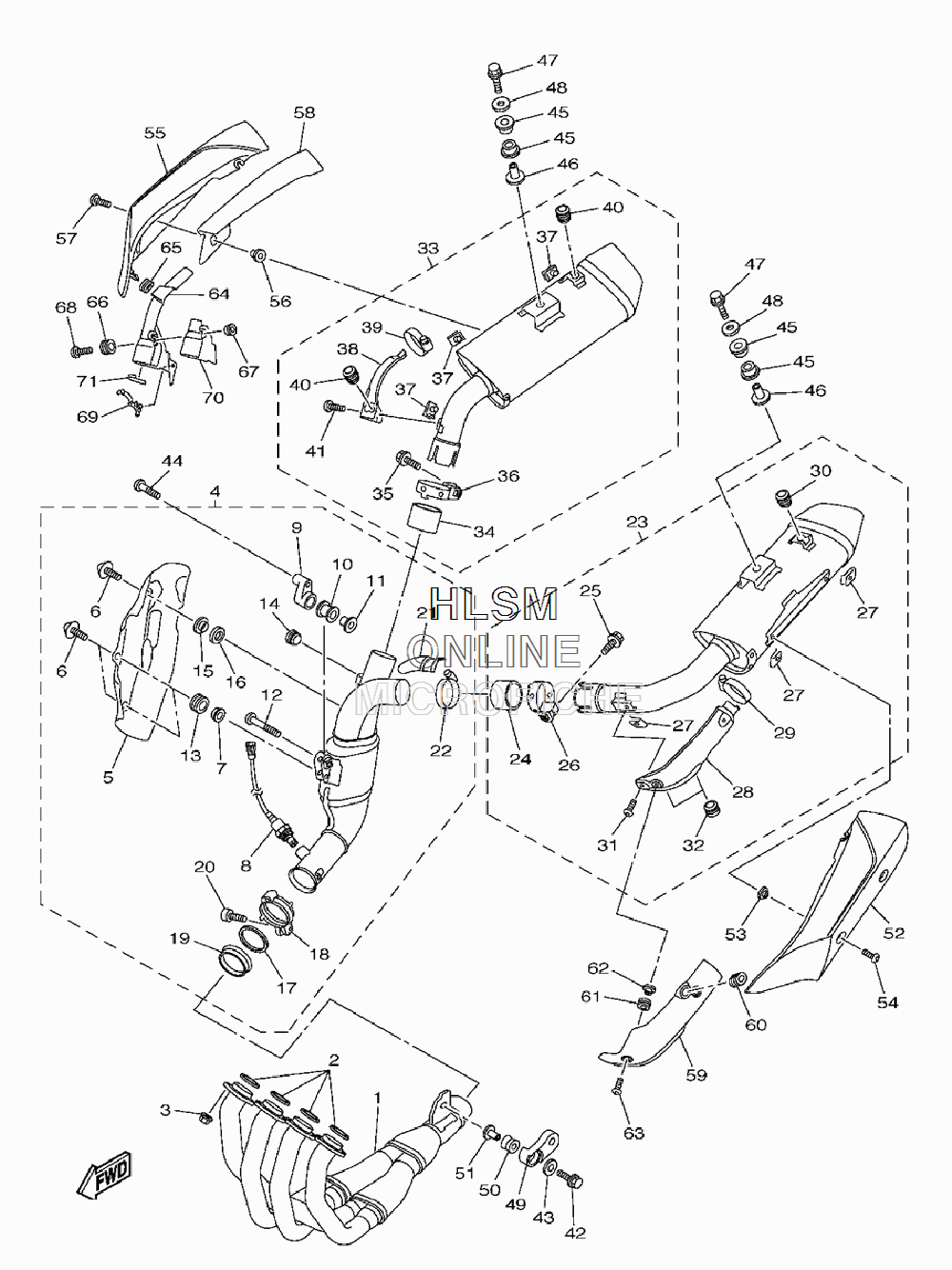

EXHAUST для Yamaha YZF-R1 - 2009 года выпуска
-
№АртикулНазвание
-
114B-14602-00-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
24FM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
390179-08410-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
414B-14740-00-00 CATALYST ASSY.CATALYST ASSY.
-
514B-14738-00-00 PROTECTOR, MUFFLER 3PROTECTOR, MUFFLER 3
-
690110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790387-06112-00 COLLARCOLLAR
-
814B-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
914B-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
104XV-27424-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
1190387-08005-00 COLLARCOLLAR
-
1292014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1390480-12579-00 GROMMETGROMMET
-
142D1-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
1590387-06217-00 COLLARCOLLAR
-
1690201-08080-00 WASHER, PLATEWASHER, PLATE
-
1714B-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1814B-14725-00-00 BAND, MUFFLERBAND, MUFFLER
-
1914B-14618-00-00 RING, STOPPERRING, STOPPER
-
2090110-06343-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2114B-1465U-00-00 PLATE, PROTECTOR 3PLATE, PROTECTOR 3
-
2290450-45001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2314B-14710-10-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
245VY-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
2590105-08063-00 BOLT, FLANGEBOLT, FLANGE
-
263D8-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
2790183-060A2-00 NUT, SPRINGNUT, SPRING
-
2814B-1465R-00-00 PLATE, PROTECTORPLATE, PROTECTOR
-
2990450-45001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
303D7-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
3192012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
324FM-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
3314B-14720-10-00 MUFFLER ASSY 2MUFFLER ASSY 2
-
345VY-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
3590105-08063-00 BOLT, FLANGEBOLT, FLANGE
-
363D8-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
3790183-060A2-00 NUT, SPRINGNUT, SPRING
-
3814B-1465T-00-00 PLATE, PROTECTORPLATE, PROTECTOR
-
3990450-45001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
403D7-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
4192012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4295812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4390201-087G2-00 WASHER, PLATEWASHER, PLATE
-
4490111-08071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4514B-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
4690387-08020-00 COLLARCOLLAR
-
4795814-08045-00 BOLT, FLANGEBOLT, FLANGE
-
4890201-08034-00 WASHER, PLATEWASHER, PLATE
-
4914B-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
505VY-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
5190387-08021-00 COLLARCOLLAR
-
5214B-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
5390387-06170-00 COLLARCOLLAR
-
5490111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5514B-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
5690387-06170-00 COLLARCOLLAR
-
5790111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5814B-1476P-00-00 SEATSEAT
-
5914B-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
6090480-01558-00 GROMMETGROMMET
-
6190480-12581-00 GROMMETGROMMET
-
6290387-087L0-00 COLLARCOLLAR
-
6390111-06095-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6414B-2163F-00-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
-
6590480-01558-00 GROMMETGROMMET
-
6690480-12581-00 GROMMETGROMMET
-
6790387-087L0-00 COLLARCOLLAR
-
6890111-06095-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6990464-16006-00 CLAMPCLAMP
-
7014B-1478P-00-00 SEATSEAT
-
7114B-1479P-00-00 SEAT 5SEAT 5
