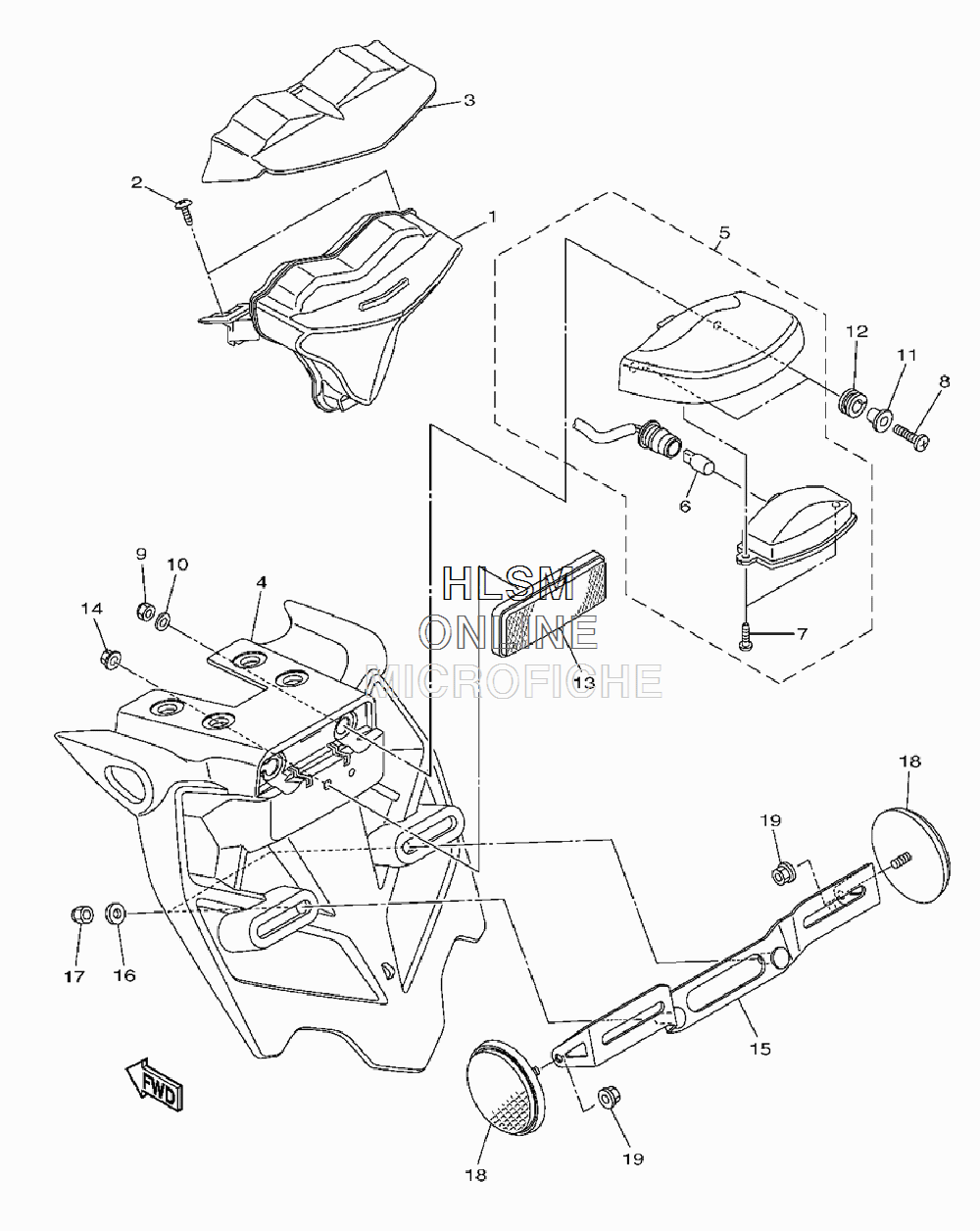

TAILLIGHT для Yamaha YZF-R1 - 2009 года выпуска
-
№АртикулНазвание
-
114B-84710-10-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
297702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
314B-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
414B-21629-00-00 GUARD, MUDGUARD, MUD
-
55VX-84745-01-00 LICENCE LIGHT UNIT ASSYLICENCE LIGHT UNIT ASSY
-
64HC-84744-00-00 BULB (12V-5W)BULB (12V-5W)
-
797706-04012-00 SCREW, TAPPINGSCREW, TAPPING
-
898902-05020-00 SCREW, BINDSCREW, BIND
-
995602-05100-00 NUT, UNUT, U
-
1092907-05200-00 WASHER, PLAINWASHER, PLAIN
-
1190387-05003-00 COLLARCOLLAR
-
1290480-11009-00 GROMMETGROMMET
-
133Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1495607-05200-00 NUT, U FLANGENUT, U FLANGE
-
1514B-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
1692902-06600-00 WASHER, PLATEWASHER, PLATE
-
1795607-06100-00 NUT, UNUT, U
-
18449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
1995707-05500-00 NUT, FLANGE (BLACK)NUT, FLANGE (BLACK)
