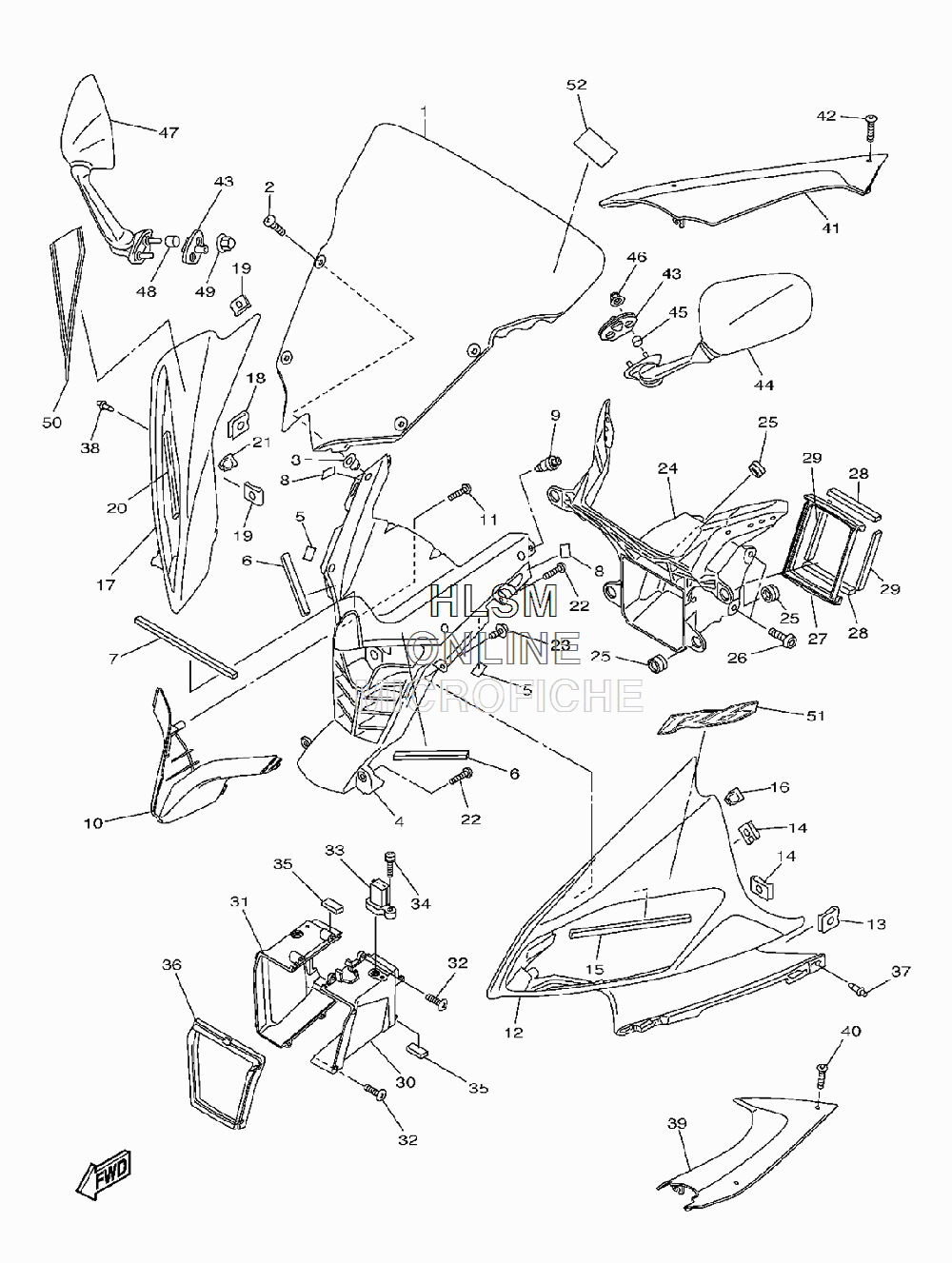

COWLING для Yamaha YZF-R6 - 2009 года выпуска
-
№АртикулНазвание
-
113S-28381-10-00 WINDSHIELDWINDSHIELD
-
290150-05023-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
390179-05523-00 NUTNUT
-
413S-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
53P6-28217-00-00 DAMPER 1DAMPER 1
-
613S-28227-00-00 DAMPER 2DAMPER 2
-
713S-28237-00-00 DAMPER 3DAMPER 3
-
813S-28371-00-00 DAMPERDAMPER
-
990269-06046-00 RIVETRIVET
-
1013S-28365-00-P0 COVER (USE FOR COLOR MBL2 / 0582)COVER (USE FOR COLOR MBL2 / 0582)
-
1197702-40016-00 SCREW, TRUSSSCREW, TRUSS
-
1213S-2835G-00-P0 BODY, FRONT UPPER 1 (USE FOR COLOR DPBMC / 0564)BODY, FRONT UPPER 1 (USE FOR COLOR DPBMC / 0564)
-
1213S-2835G-00-P3 BODY, FRONT UPPER 1 (USE FOR COLOR SMX / 0903)BODY, FRONT UPPER 1 (USE FOR COLOR SMX / 0903)
-
1213S-2835G-00-P1 BODY, FRONT UPPER 1 (USE FOR COLOR BWC1 / 0390)BODY, FRONT UPPER 1 (USE FOR COLOR BWC1 / 0390)
-
1390183-05076-00 NUT, SPRINGNUT, SPRING
-
1490183-05042-00 NUT, SPRINGNUT, SPRING
-
152C0-28455-00-00 DAMPER, 4DAMPER, 4
-
1690480-01605-00 GROMMETGROMMET
-
1713S-2835H-00-P0 BODY, FRONT UPPER 2 (USE FOR COLOR DPBMC / 0564)BODY, FRONT UPPER 2 (USE FOR COLOR DPBMC / 0564)
-
1713S-2835H-00-P3 BODY, FRONT UPPER 2 (USE FOR COLOR SMX / 0903)BODY, FRONT UPPER 2 (USE FOR COLOR SMX / 0903)
-
1713S-2835H-00-P1 BODY, FRONT UPPER 2 (USE FOR COLOR BWC1 / 0390)BODY, FRONT UPPER 2 (USE FOR COLOR BWC1 / 0390)
-
1890183-05076-00 NUT, SPRINGNUT, SPRING
-
1990183-05042-00 NUT, SPRINGNUT, SPRING
-
202C0-28455-00-00 DAMPER, 4DAMPER, 4
-
2190480-01605-00 GROMMETGROMMET
-
2297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2397707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
2413S-28356-00-00 STAY 1STAY 1
-
254XV-83513-00-00 DAMPERDAMPER
-
2690111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
272C0-28342-01-00 JOINTJOINT
-
282C0-28217-00-00 DAMPER 1DAMPER 1
-
292C0-28227-00-00 DAMPER 2DAMPER 2
-
3013S-2838R-00-00 DUCT 2DUCT 2
-
3113S-2838T-00-00 DUCT 3DUCT 3
-
3297702-40016-00 SCREW, TRUSSSCREW, TRUSS
-
338FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
3497702-50116-00 SCREW,PANHEAD TAP.SCREW,PANHEAD TAP.
-
3551Y-21639-00-00 DAMPER 2DAMPER 2
-
362C0-28371-00-00 DAMPERDAMPER
-
3790269-06008-00 RIVETRIVET
-
3890269-06008-00 RIVETRIVET
-
3913S-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
4090111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4113S-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
4290111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4313S-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
4413S-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
4590387-064T3-00 COLLARCOLLAR
-
4690176-06008-00 NUT, CROWNNUT, CROWN
-
4713S-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
4890387-064T3-00 COLLARCOLLAR
-
4990176-06008-00 NUT, CROWNNUT, CROWN
-
5013S-2832K-00-00 GRAPHIC, 12 (USE FOR COLOR DPBMC / 0564)GRAPHIC, 12 (USE FOR COLOR DPBMC / 0564)
-
5113S-28328-70-00 EMBLEM (USE FOR COLOR DPBMC / 0564)EMBLEM (USE FOR COLOR DPBMC / 0564)
-
524B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
