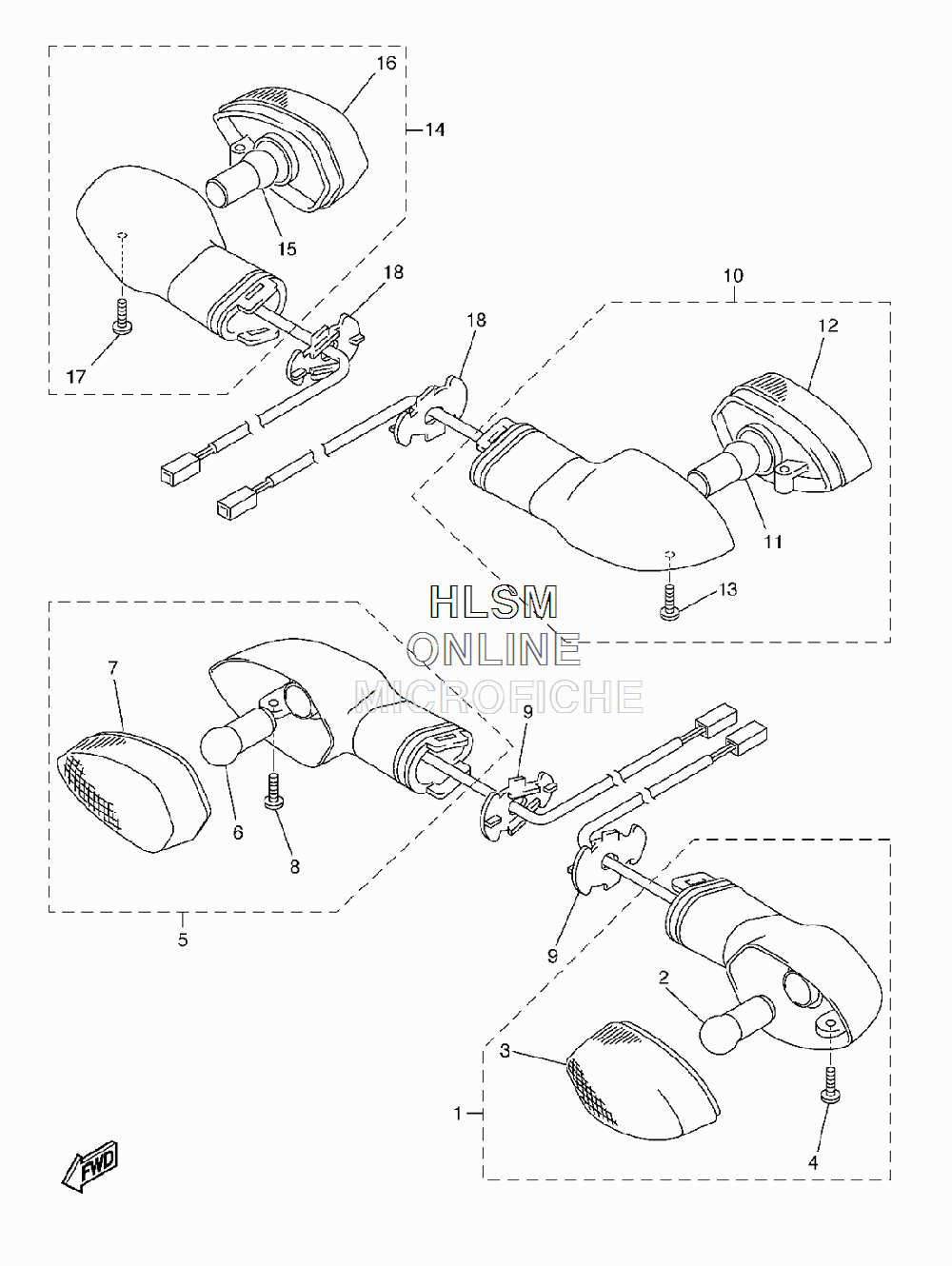

FLASHER LIGHT для Yamaha YZF-R6 - 2009 года выпуска
-
№АртикулНазвание
-
12C0-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
21A2-84714-41-00 BULB (12V-21/5W)BULB (12V-21/5W)
-
32C0-8333A-10-00 LENS COMPLENS COMP
-
497702-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
52C0-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
61A2-84714-41-00 BULB (12V-21/5W)BULB (12V-21/5W)
-
72C0-8334A-10-00 LENS COMPLENS COMP
-
897702-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
92C0-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
102C0-83330-10-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
11306-83311-40-00 BULB, FLASHER (12V-21W)BULB, FLASHER (12V-21W)
-
122C0-8334A-10-00 LENS COMPLENS COMP
-
1397702-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
142C0-83340-10-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
15306-83311-40-00 BULB, FLASHER (12V-21W)BULB, FLASHER (12V-21W)
-
162C0-8333A-10-00 LENS COMPLENS COMP
-
1797702-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
182C0-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
