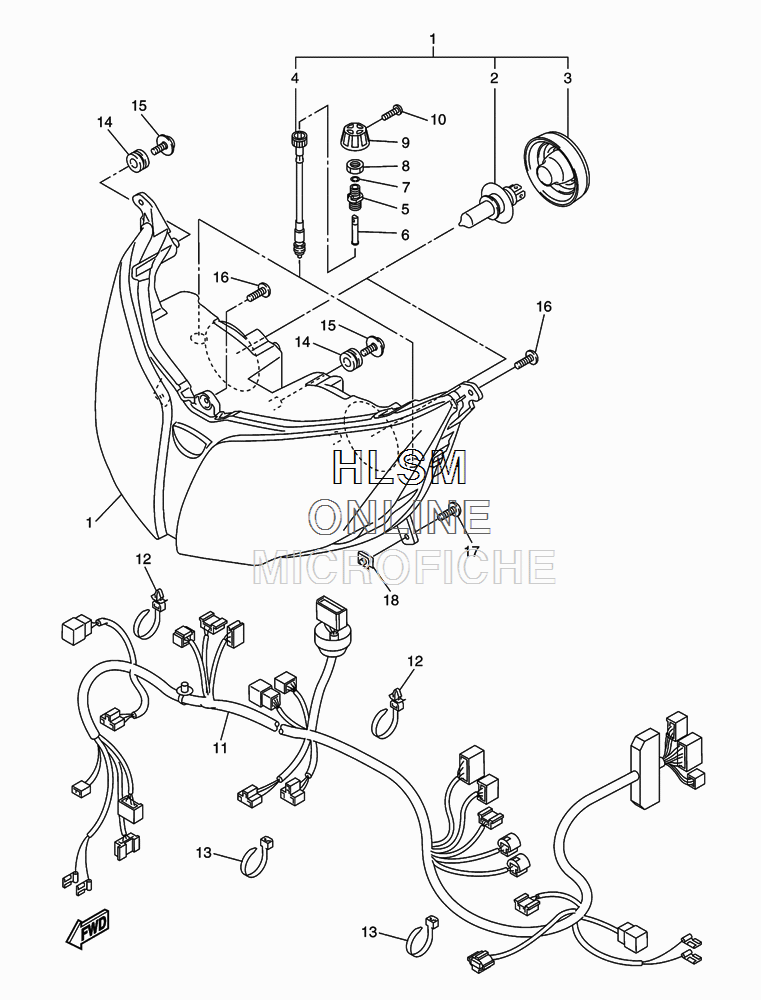

HEADLIGHT для Yamaha FJR1300A ABS - 2010 года выпуска
-
№АртикулНазвание
-
13P6-8430B-20-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
25V2-84314-00-XX BULB (12V 60/55W HALOGEN) (H4)BULB (12V 60/55W HALOGEN) (H4)
-
35JW-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
43P6-8430N-00-00 WIRE ASSYWIRE ASSY
-
53P6-8431U-00-00 HOLDERHOLDER
-
63P6-8431N-00-00 RODROD
-
793440-06190-00 CIRCLIPCIRCLIP
-
890170-10206-00 NUTNUT
-
93P6-8432N-00-00 KNOBKNOB
-
1090157-03007-00 SCREW, PAN HEADSCREW, PAN HEAD
-
113P6-84359-30-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
1290464-12036-00 CLAMPCLAMP
-
1390465-13152-00 CLAMPCLAMP
-
144XV-83513-00-00 DAMPERDAMPER
-
1590160-05006-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
1697702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1790154-05005-00 SCREW, BINDINGSCREW, BINDING
-
1890183-050A6-00 NUT, SPRINGNUT, SPRING
