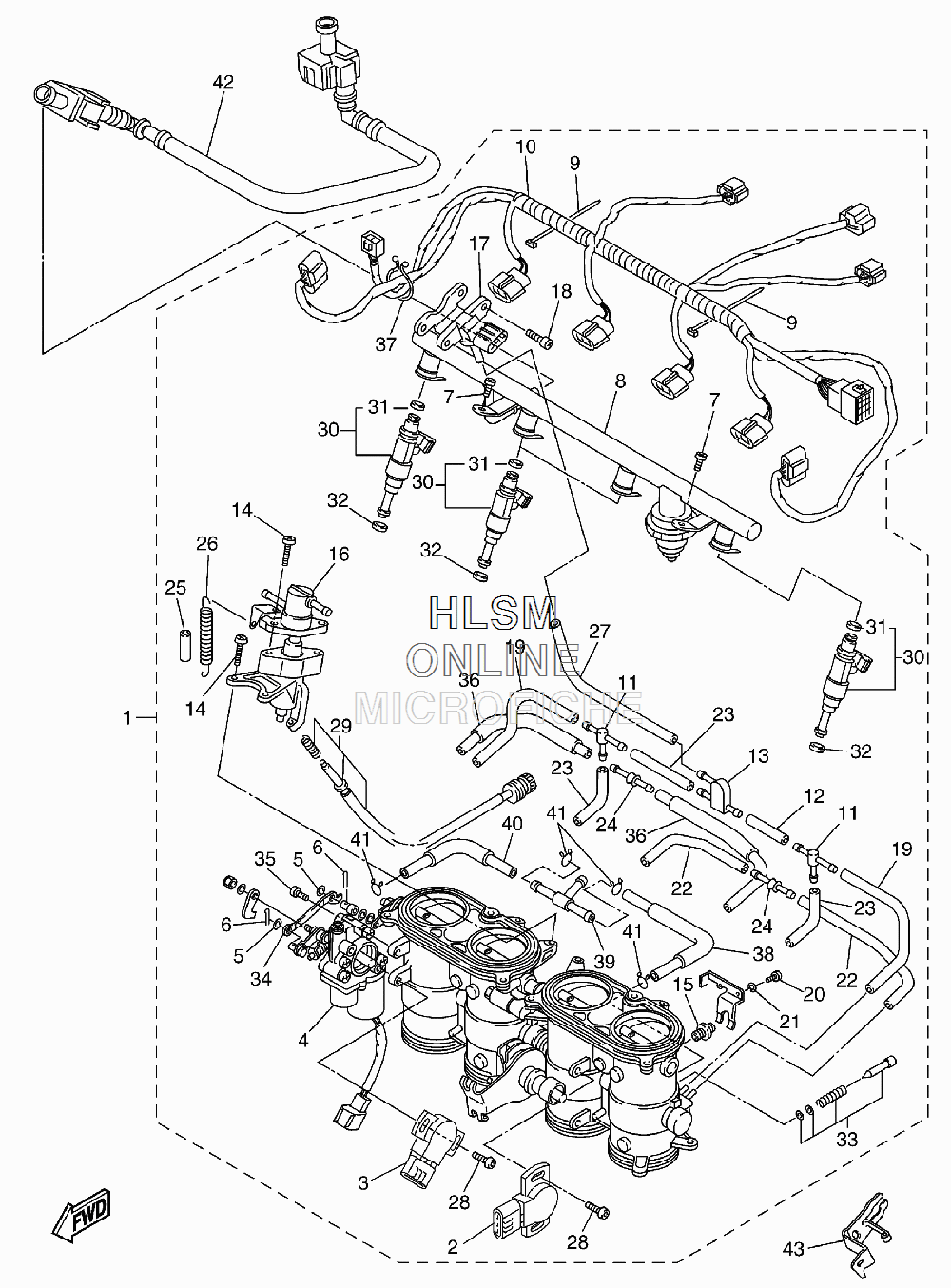

AIR CLEANER W/ INTAKE для Yamaha FZ1 - 2010 года выпуска
-
№АртикулНазвание
-
12D1-13750-20-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
13C3-13750-10-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
22D1-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
35FL-85885-02-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
45VY-85850-10-00 GEARED MOTOR COMP.GEARED MOTOR COMP.
-
522U-14952-00-00 WASHERWASHER
-
691492-12010-00 PIN, COTTERPIN, COTTER
-
798502-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
82D1-13160-00-00 DELIVERY PIPE ASSY 1DELIVERY PIPE ASSY 1
-
94KM-14137-00-00 CLIPCLIP
-
102D1-82386-00-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
1168V-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
125JW-14396-00-00 PIPEPIPE
-
133XV-14251-00-00 NIPPLENIPPLE
-
1498502-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
155VY-14171-00-00 PLUNGER, STARTERPLUNGER, STARTER
-
165VY-14204-00-00 CASE, STARTERCASE, STARTER
-
171C7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
1892502-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
195FL-14349-10-00 PIPEPIPE
-
2098507-03016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2192990-03100-00 WASHER, SPRINGWASHER, SPRING
-
225PW-14349-00-00 PIPEPIPE
-
235PS-14987-00-00 HOSEHOSE
-
245PW-14251-00-00 NIPPLENIPPLE
-
255DM-14936-00-00 SEAT, SPRINGSEAT, SPRING
-
265JW-14589-00-00 SPRINGSPRING
-
275SL-14349-00-00 PIPEPIPE
-
288CC-14216-10-00 SCREWSCREW
-
295PW-14103-00-00 THROTTLE SCREW SETTHROTTLE SCREW SET
-
305VY-13761-00-00 INJECTORINJECTOR
-
315PS-14147-00-00 O-RINGO-RING
-
328FP-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
335JW-14104-00-00 AIR SCREW SETAIR SCREW SET
-
345VY-14905-00-00 LEVER, STARTERLEVER, STARTER
-
3598507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
365VY-13543-00-00 HOSE, AIRHOSE, AIR
-
3790464-30040-00 CLAMPCLAMP
-
385VY-14465-01-00 PIPEPIPE
-
3990413-08012-00 WAY 3WAY 3
-
405VY-14466-01-00 PIPEPIPE
-
4190467-09006-00 CLIPCLIP
-
422D1-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
432D1-14413-01-00 STAYSTAY
