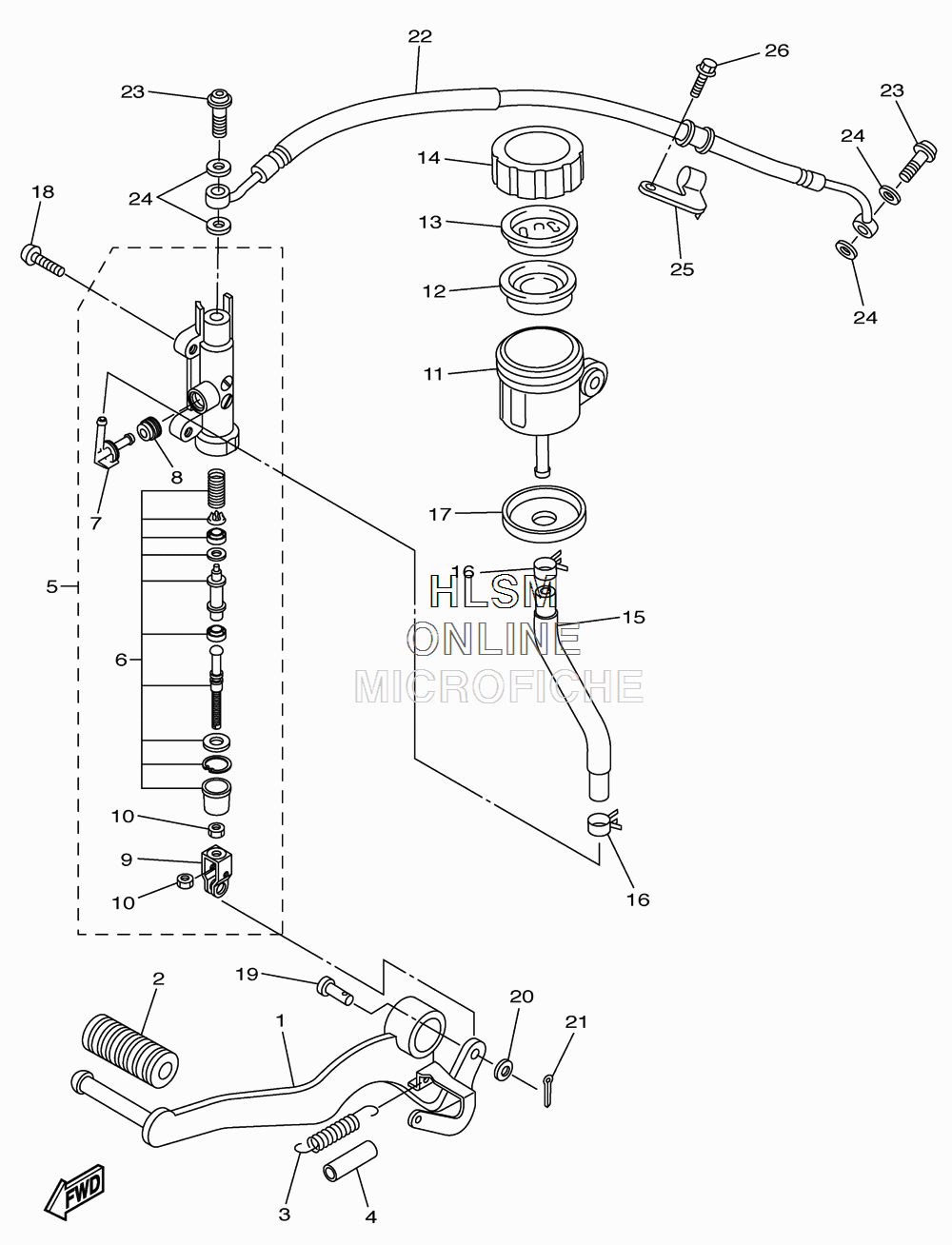

BRAKE - REAR MASTER CYLINDER для Yamaha FZ1 - 2010 года выпуска
-
№АртикулНазвание
-
12D1-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25EB-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
390506-20014-00 SPRING, TENSIONSPRING, TENSION
-
490446-15386-00 HOSEHOSE
-
52D1-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
65VX-W0042-50-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
72D1-2582A-00-00 JOINTJOINT
-
84BP-2585F-01-00 O-RINGO-RING
-
94BP-27222-02-00 JOINTJOINT
-
1090170-08010-00 NUTNUT
-
112D1-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
125SL-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
135SL-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
145SL-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
152D1-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1690467-120A3-00 CLIPCLIP
-
175D0-2583H-00-00 BOOTBOOT
-
1892014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1990240-08005-00 PIN, CLEVISPIN, CLEVIS
-
2090201-08066-00 WASHER, PLATEWASHER, PLATE
-
2191401-20012-00 PIN, COTTERPIN, COTTER
-
222D1-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
2390401-10172-00 BOLT, UNIONBOLT, UNION
-
2490430-10005-00 GASKETGASKET
-
252D1-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2690119-05021-00 BOLT, WITH WASHERBOLT, WITH WASHER
