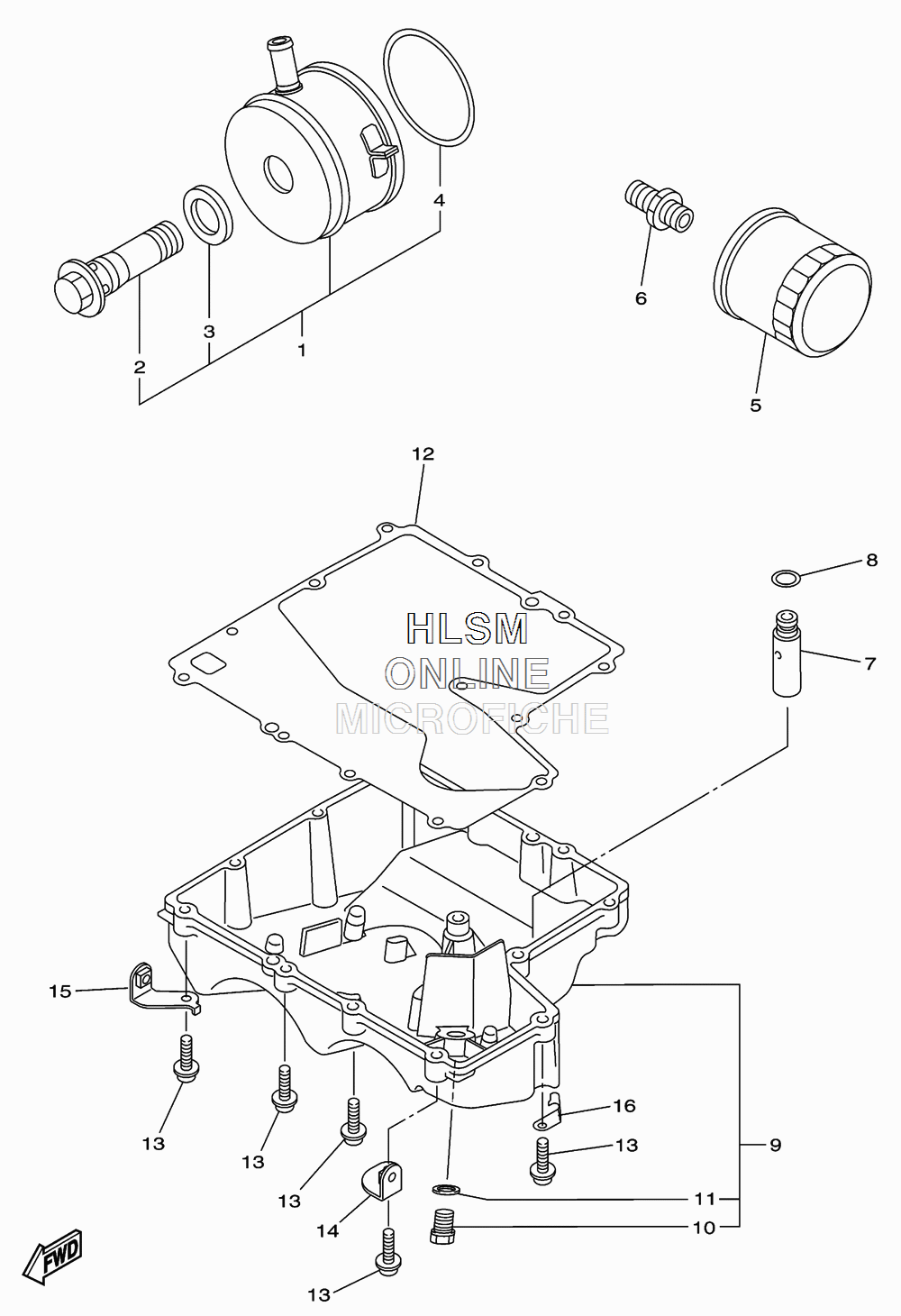

OIL CLEANER для Yamaha YZF-R6 - 2010 года выпуска
-
№АртикулНазвание
-
113S-13470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
25EB-12822-00-00 BOLT, UNIONBOLT, UNION
-
35EB-13475-00-00 GASKETGASKET
-
45JW-13473-00-00 O-RINGO-RING
-
55GH-13440-20-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
690401-20145-00 BOLT, UNIONBOLT, UNION
-
72C0-13490-00-00 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
893210-15566-00 O-RINGO-RING
-
92C0-13400-00-00 STRAINER COVER ASSYSTRAINER COVER ASSY
-
1090340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
11214-11198-01-00 GASKETGASKET
-
122C0-13414-01-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
1390110-06326-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1413S-2836A-00-00 BRACKET 1BRACKET 1
-
1513S-2836E-00-00 BRACKET 2BRACKET 2
-
1690465-10040-00 CLAMPCLAMP
