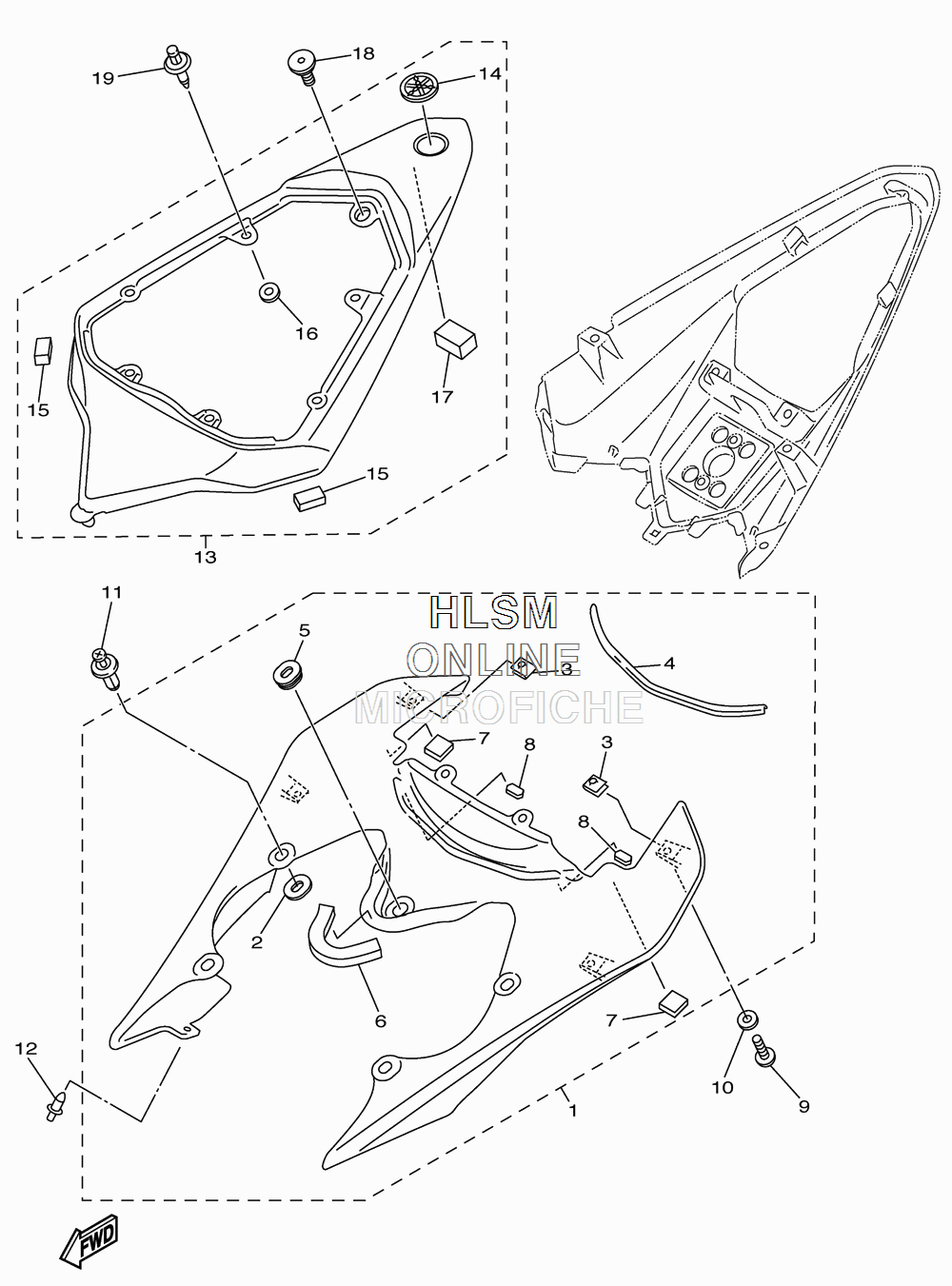

SIDE COVER для Yamaha YZF-R6 - 2010 года выпуска
-
№АртикулНазвание
-
113S-21710-00-P0 SIDE COVER ASSY 1 FOR DPBMCSIDE COVER ASSY 1 FOR DPBMC
-
113S-21710-00-P3 SIDE COVER ASSY 1 FOR SMXSIDE COVER ASSY 1 FOR SMX
-
113S-21710-00-P1 SIDE COVER ASSY 1 FOR BWC1SIDE COVER ASSY 1 FOR BWC1
-
25PW-2174X-00-00 DAMPERDAMPER
-
390183-05076-00 NUT, SPRINGNUT, SPRING
-
413S-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
590480-01558-00 GROMMETGROMMET
-
62C0-28237-00-00 DAMPER 3DAMPER 3
-
71UF-15379-00-00 SEALSEAL
-
85SL-28416-00-00 DAMPER 2DAMPER 2
-
990111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090202-05180-00 WASHER, PLATEWASHER, PLATE
-
1190269-07076-00 RIVETRIVET
-
1290269-06008-00 RIVETRIVET
-
1313S-21720-00-P3 SIDE COVER ASSY 2 FOR SMXSIDE COVER ASSY 2 FOR SMX
-
1313S-21720-00-P2 SIDE COVER ASSY 2 FOR DPBMCSIDE COVER ASSY 2 FOR DPBMC
-
1313S-21720-00-P0 SIDE COVER ASSY 2 FOR BWC1SIDE COVER ASSY 2 FOR BWC1
-
144KN-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
1513S-21639-00-00 DAMPER 2DAMPER 2
-
165SL-84753-00-00 DAMPERDAMPER
-
174J2-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1890109-06248-00 BOLTBOLT
-
1990269-06001-00 RIVETRIVET
