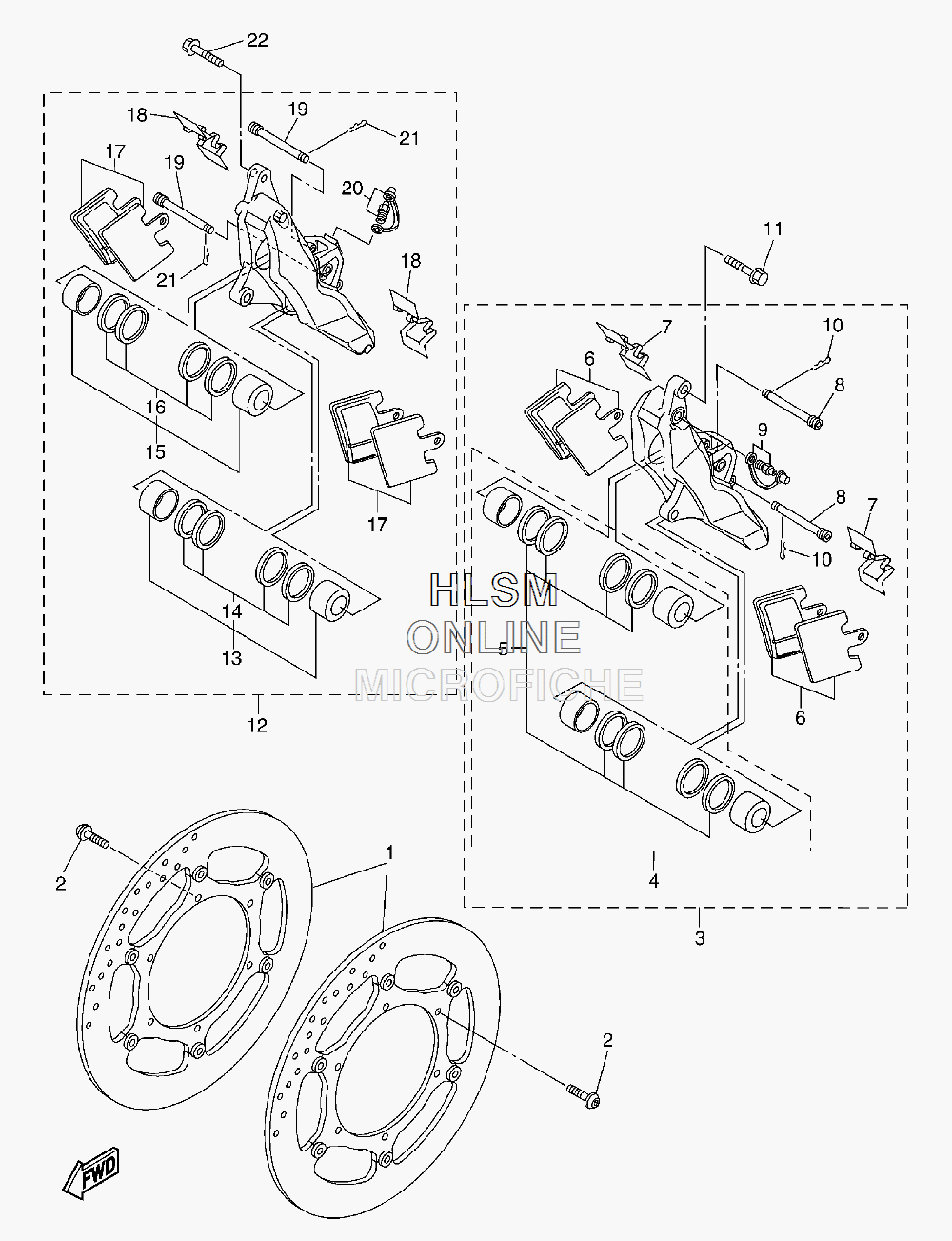

BRAKE - FRONT CALIPER для Yamaha FJR 1300A - 2011 года выпуска
-
№АртикулНазвание
-
13P6-2581T-01-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-064G6-00 BOLTBOLT
-
33P6-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43P6-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53P6-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
63P6-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
73P6-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
83P6-25924-00-00 ...PIN, PAD...PIN, PAD
-
98CR-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
103P6-25925-00-00 ...CLIP...CLIP
-
1190105-10638-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
123P6-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
133P6-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
143P6-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
153P6-W0057-20-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
163P6-W0047-20-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
173P6-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
183P6-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
193P6-25924-00-00 ...PIN, PAD...PIN, PAD
-
208CR-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
213P6-25925-00-00 ...CLIP...CLIP
-
2290105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
