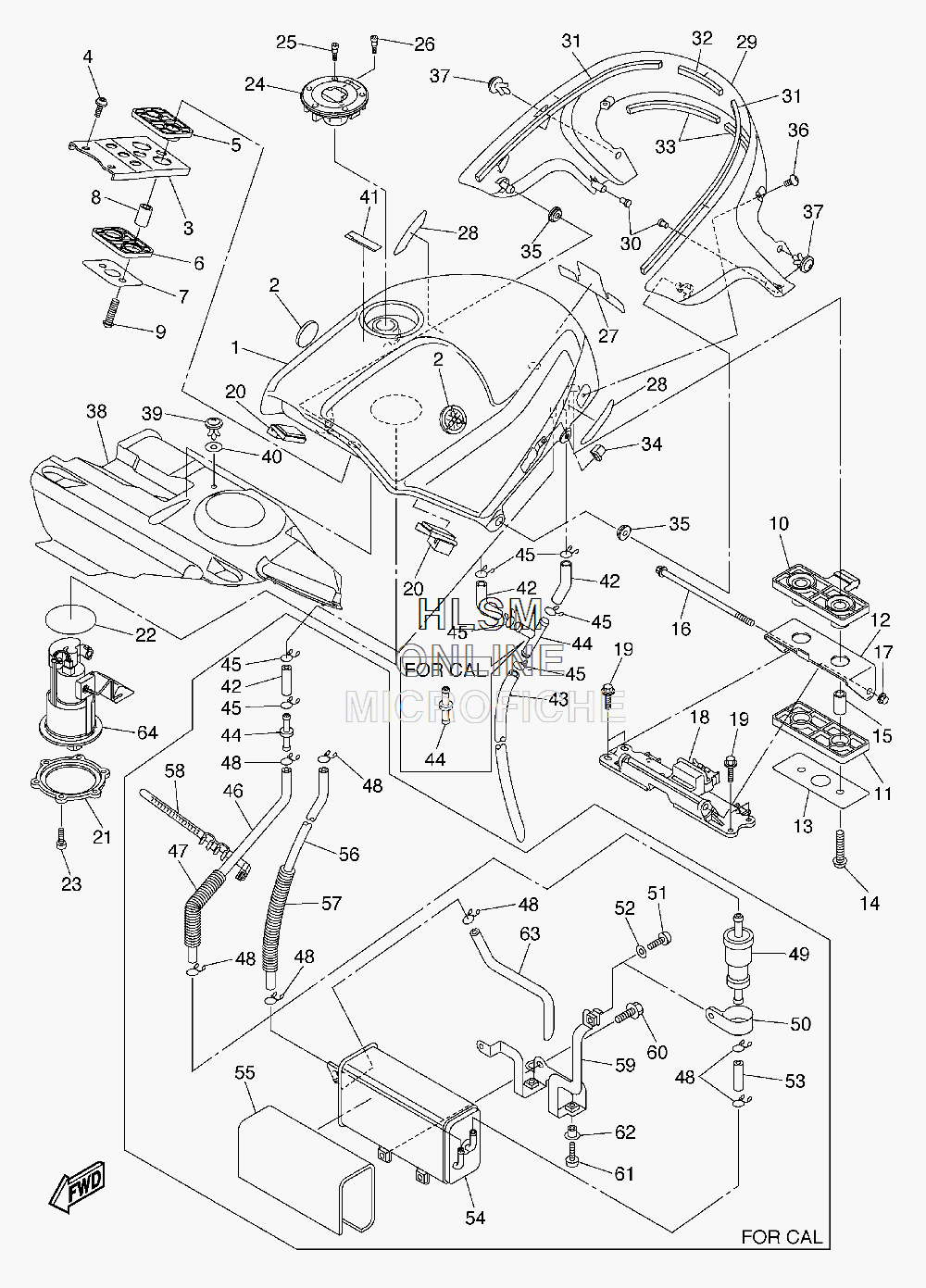

FUEL TANK для Yamaha FJR 1300A - 2011 года выпуска
-
№АртикулНазвание
-
13P6-YK241-00-P7 FUEL TANK COMP. (S3)FUEL TANK COMP. (S3)
-
25JW-2413B-00-00 EMBLEMEMBLEM
-
35JW-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
490111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
55JW-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
65JW-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
75JW-24187-00-00 WASHER, SPECIALWASHER, SPECIAL
-
890387-0813V-00 COLLARCOLLAR
-
992012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
103P6-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
115JW-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
125JW-24192-01-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
135JW-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1492012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1590387-0813V-00 COLLARCOLLAR
-
1695812-08160-00 BOLT, FLANGEBOLT, FLANGE
-
1795702-08500-00 NUT, FLANGENUT, FLANGE
-
183P6-21348-00-00 BRACKT, TANK FITTINGBRACKT, TANK FITTING
-
1995822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
203P6-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
215JW-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
225JW-24486-00-00 O-RINGO-RING
-
2390110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
245JJ-24602-01-00 CAP ASSYCAP ASSY
-
2590110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2691312-05010-00 BOLTBOLT
-
273P6-24595-00-00 PROTECTORPROTECTOR
-
283P6-2376R-00-00 PROTECTORPROTECTOR
-
293P6-24129-00-P0 COVER, SIDE 1 (S3)COVER, SIDE 1 (S3)
-
3090338-06018-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
313P6-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
323P6-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
332D1-2414R-00-00 DAMPER, PLATE 6DAMPER, PLATE 6
-
345PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
3590480-01558-00 GROMMETGROMMET
-
3690111-05023-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3790269-06081-00 RIVETRIVET
-
383P6-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
3990269-06081-00 RIVETRIVET
-
4090202-06008-00 WASHER, PLATEWASHER, PLATE
-
415GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
4290445-11066-00 HOSE (CALIF. ONLY)HOSE (CALIF. ONLY)
-
4290445-11763-00 HOSE (L45)HOSE (L45)
-
4390445-11036-00 HOSEHOSE
-
4490413-07007-00 WAY 3WAY 3
-
444XY-14568-00-00 JOINT (CALIF. ONLY)JOINT (CALIF. ONLY)
-
4590467-100A1-00 CLIPCLIP
-
4690445-11064-00 HOSE (CALIF. ONLY)HOSE (CALIF. ONLY)
-
473P6-24327-00-00 PROTECTOR, PIPE (CALIF. ONLY)PROTECTOR, PIPE (CALIF. ONLY)
-
4890467-100A1-00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
495PX-24180-00-00 ROLL OVER VALVE ASSY (CALIF. ONLY)ROLL OVER VALVE ASSY (CALIF. ONLY)
-
5090461-15139-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
5198504-05012-00 SCREW, PAN HEAD (CALIF. ONLY)SCREW, PAN HEAD (CALIF. ONLY)
-
5292903-05600-00 WASHER, PLATE (CALIF. ONLY)WASHER, PLATE (CALIF. ONLY)
-
5390445-11065-00 HOSE (L30) (CALIF. ONLY)HOSE (L30) (CALIF. ONLY)
-
543P6-24170-00-00 CANISTER ASSY (CALIF. ONLY)CANISTER ASSY (CALIF. ONLY)
-
553P6-2414E-00-00 SEAL 2 (CALIF. ONLY)SEAL 2 (CALIF. ONLY)
-
563P6-1443J-10-00 PIPE (CALIF. ONLY)PIPE (CALIF. ONLY)
-
573P6-2432A-00-00 PROTECTOR, PIPE 2 (CALIF. ONLY)PROTECTOR, PIPE 2 (CALIF. ONLY)
-
5890464-10009-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
593P6-2419F-01-00 BRACKET, CANISTOR (CALIF. ONLY)BRACKET, CANISTOR (CALIF. ONLY)
-
6095804-06012-00 BOLT, FLANGE (CALIF. ONLY)BOLT, FLANGE (CALIF. ONLY)
-
6192014-06012-00 BOLT, BUTTON HEAD (CALIF. ONLY)BOLT, BUTTON HEAD (CALIF. ONLY)
-
6290387-0603J-00 COLLAR (CALIF. ONLY)COLLAR (CALIF. ONLY)
-
633P6-24314-00-00 PIPE 4 (CALIF. ONLY)PIPE 4 (CALIF. ONLY)
-
645JW-13907-22-00 FUEL PUMP COMP. (CALIF. ONLY)FUEL PUMP COMP. (CALIF. ONLY)
