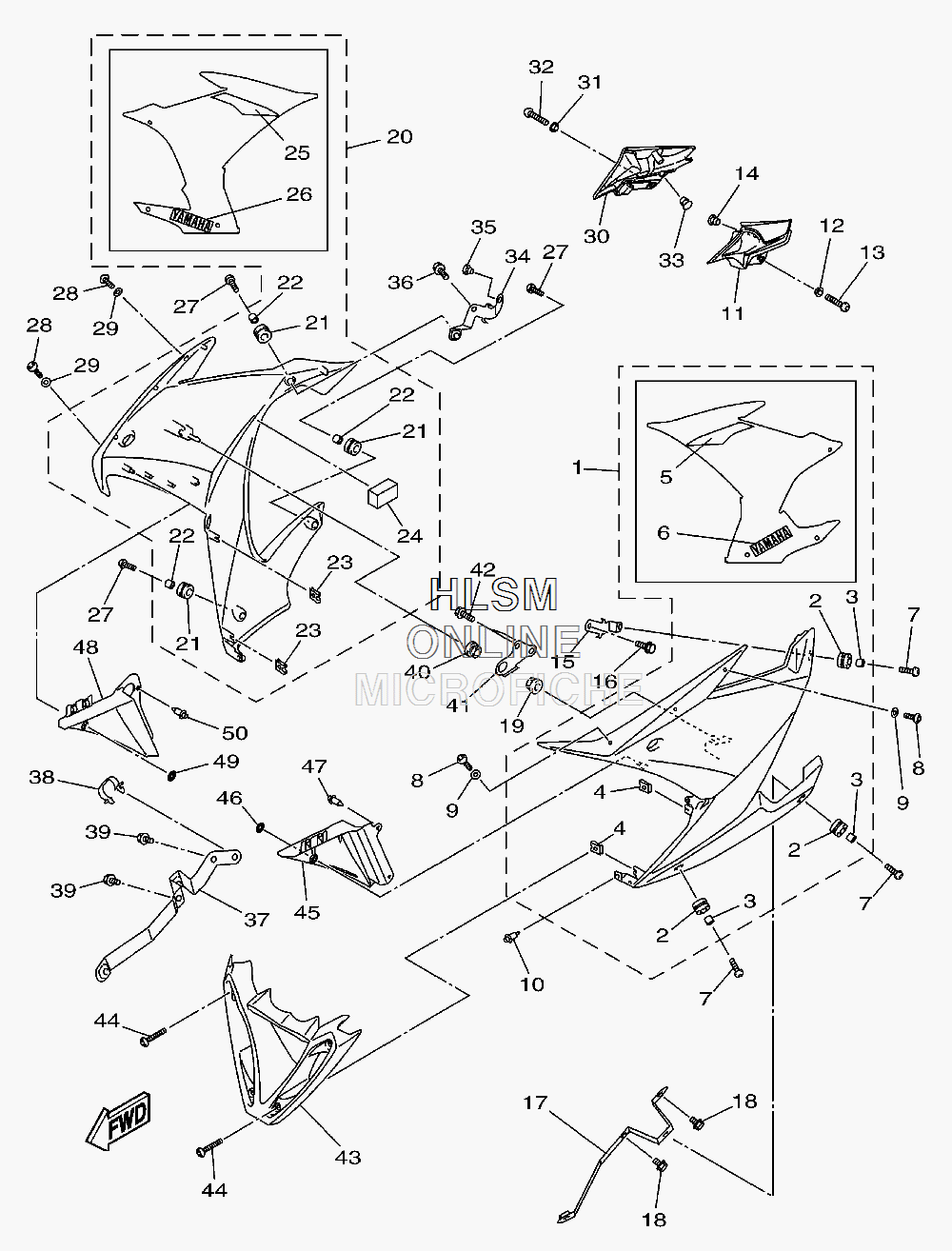

COWLING 2 для Yamaha FZ6R (RAVEN) - 2011 года выпуска
-
№АртикулНазвание
-
136P-Y283U-C0-P1 PANEL ASSEMBLY 1 (SMX)PANEL ASSEMBLY 1 (SMX)
-
290480-14003-00 ...GROMMET...GROMMET
-
390387-06260-00 ...COLLAR...COLLAR
-
490183-05076-00 ...NUT, SPRING...NUT, SPRING
-
536P-2839E-00-00 ...GRAPHIC, 8...GRAPHIC, 8
-
636P-2153E-10-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
790149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
890111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
990202-05180-00 WASHER, PLATEWASHER, PLATE
-
1090269-06008-00 RIVETRIVET
-
1136P-2171N-00-00 MOLE, SIDE COVER 3MOLE, SIDE COVER 3
-
1290387-06130-00 COLLARCOLLAR
-
1390149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1490338-07043-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1536P-2833A-00-00 BRACKET 7BRACKET 7
-
1695802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1736P-2836A-01-00 BRACKET 1BRACKET 1
-
1890109-060E9-00 BOLTBOLT
-
1990480-01558-00 GROMMETGROMMET
-
2036P-Y283V-C0-P1 PANEL ASSEMBLY 2 (SMX)PANEL ASSEMBLY 2 (SMX)
-
2190480-14003-00 ...GROMMET...GROMMET
-
2290387-06260-00 ...COLLAR...COLLAR
-
2390183-05076-00 ...NUT, SPRING...NUT, SPRING
-
242C0-2162G-00-00 ...PLATE 1...PLATE 1
-
2536P-2839F-00-00 ...GRAPHIC, 9...GRAPHIC, 9
-
2636P-2153E-10-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
2790149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
2890111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2990202-05180-00 WASHER, PLATEWASHER, PLATE
-
3036P-2171R-00-00 MOLE, SIDE COVER 4MOLE, SIDE COVER 4
-
3190387-06130-00 COLLARCOLLAR
-
3290149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
3390338-07043-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
3436P-2833E-00-00 BRACKET 8BRACKET 8
-
3590338-07157-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
3695802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3736P-2836E-01-00 BRACKET 2BRACKET 2
-
3890464-24230-00 CLAMPCLAMP
-
3990109-060E9-00 BOLTBOLT
-
4090480-01558-00 GROMMETGROMMET
-
4120S-21843-00-00 STAY, 4STAY, 4
-
4295822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4336P-22863-00-00 COVER, UNDERCOVER, UNDER
-
4490111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4536P-2836N-00-00 PANEL, INNER 4PANEL, INNER 4
-
4690183-05M02-00 NUT, SPRINGNUT, SPRING
-
4790269-06008-00 RIVETRIVET
-
4836P-2836R-00-00 PANEL, INNER 5PANEL, INNER 5
-
4990183-05M02-00 NUT, SPRINGNUT, SPRING
-
5090269-06008-00 RIVETRIVET
