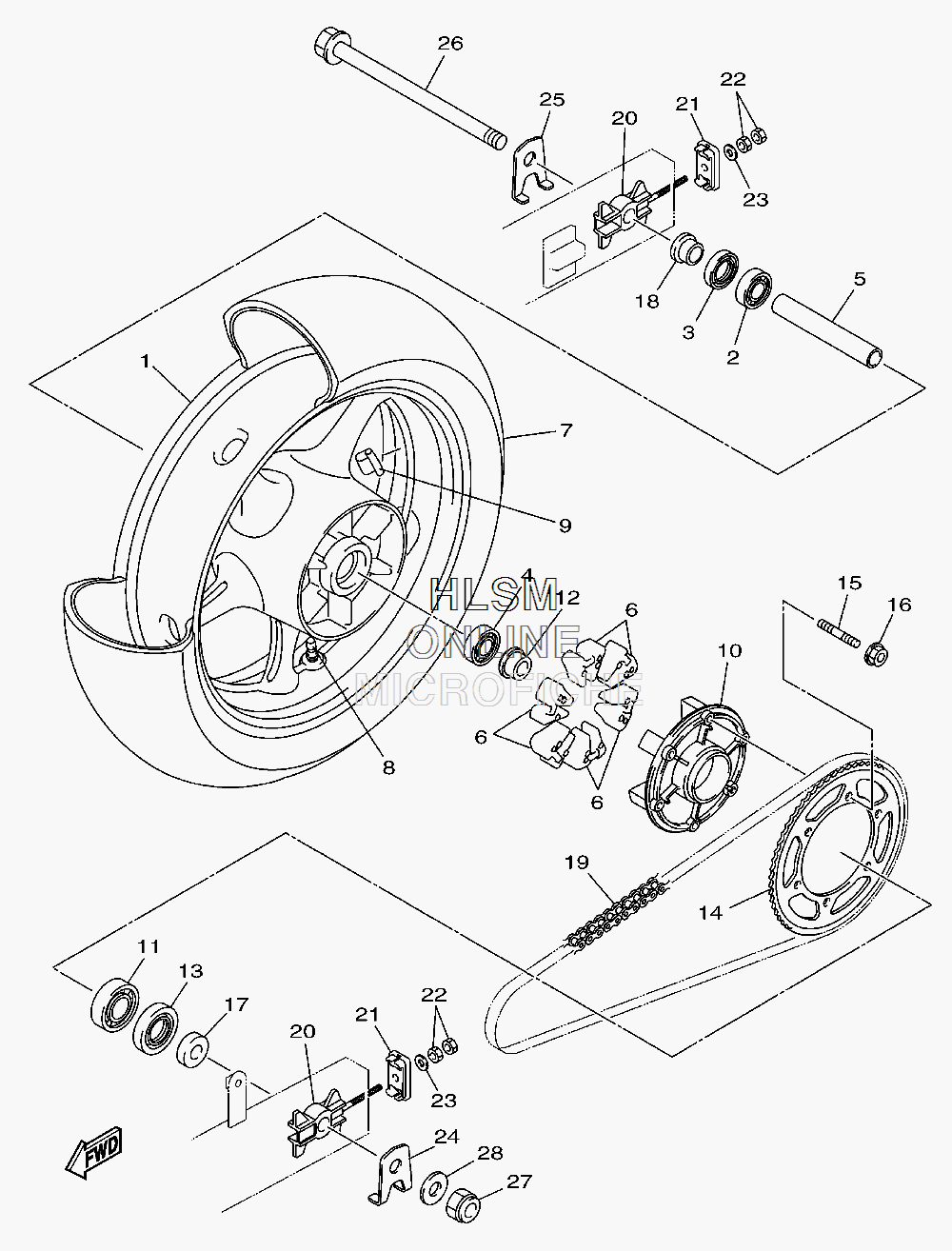

WHEEL - REAR для Yamaha FZ6R (RAVEN) - 2011 года выпуска
-
№АртикулНазвание
-
120S-25338-00-98 CAST WHEEL, REAR (LGB)CAST WHEEL, REAR (LGB)
-
293306-30317-00 BEARINGBEARING
-
393102-25044-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
493306-30317-00 BEARING (4HM)BEARING (4HM)
-
520S-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
620S-25364-00-00 DAMPERDAMPER
-
794116-17015-00 TIRE(160/60ZR17M/C 69W BT021R) BSTIRE(160/60ZR17M/C 69W BT021R) BS
-
794116-17019-00 TIRE (160/60ZR17M/C 69W) DUNLOPTIRE (160/60ZR17M/C 69W) DUNLOP
-
893900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
95MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
95MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
95MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
1020S-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1193306-20659-00 BEARINGBEARING
-
1220S-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1393106-40041-00 OIL SEALOIL SEAL
-
1420S-25446-00-00 SPROCKET, DRIVEN (46T)SPROCKET, DRIVEN (46T)
-
1590116-10048-00 BOLT, STUDBOLT, STUD
-
1695602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1720S-25377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1820S-25183-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1994582-37118-00 CHAIN (DID520VM3)CHAIN (DID520VM3)
-
201UF-25388-01-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
211UF-22174-10-00 END 1END 1
-
2295302-08600-00 NUTNUT
-
2392902-08600-00 WASHER, PLATEWASHER, PLATE
-
241UF-2533A-01-00 PLATE, INDICATORPLATE, INDICATOR
-
251UF-2533E-01-00 PLATE, INDICATOR 2PLATE, INDICATOR 2
-
2620S-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2790185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890201-16026-00 WASHER, PLATEWASHER, PLATE
