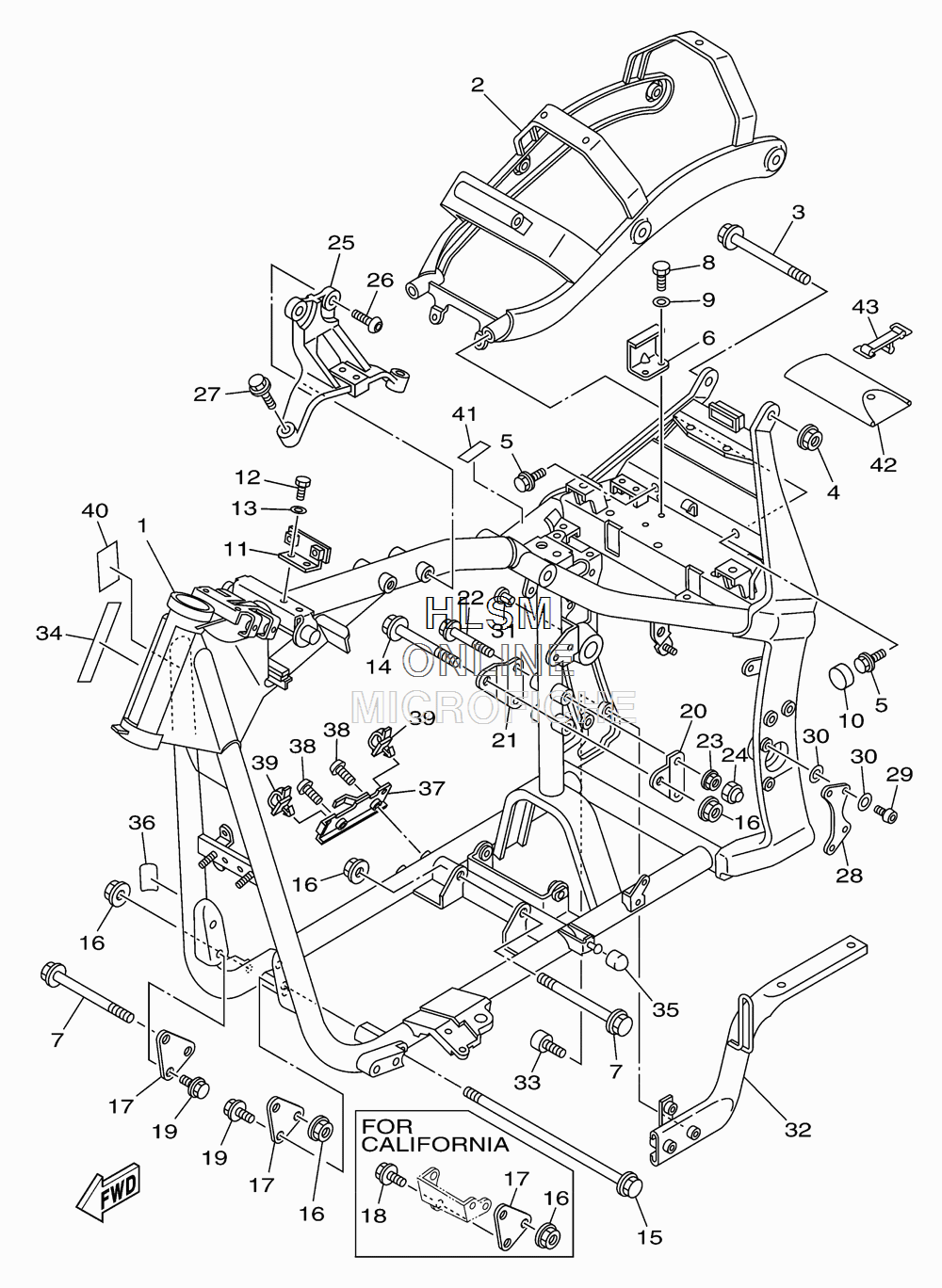

FRAME для Yamaha ROAD STAR S - 2011 года выпуска
-
№АртикулНазвание
-
15VN-21110-20-00 FRAME COMP.FRAME COMP.
-
25VN-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
390105-12016-00 BOLT, FLANGEBOLT, FLANGE
-
490185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
595827-10035-00 BOLT, FLANGEBOLT, FLANGE
-
65VN-2115C-00-00 BRACKETBRACKET
-
790105-12208-00 BOLT, FLANGEBOLT, FLANGE
-
897007-05010-00 BOLTBOLT
-
992907-05600-00 WASHER, PLATEWASHER, PLATE
-
104WM-21399-00-00 CAPCAP
-
115VN-2134M-00-00 BRACKET, SEATBRACKET, SEAT
-
1297007-05010-00 BOLTBOLT
-
1392907-05600-00 WASHER, PLATEWASHER, PLATE
-
1490105-12309-00 BOLT,WASHER BASEDBOLT,WASHER BASED
-
1590105-126A6-00 BOLT, FLANGEBOLT, FLANGE
-
1695607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
174WM-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
1895827-10025-00 BOLT,FLANGE (3GD) (CALIF ONLY)BOLT,FLANGE (3GD) (CALIF ONLY)
-
1995827-10016-00 BOLT,FLANGE (3HP) (CALIF ONLY)BOLT,FLANGE (3HP) (CALIF ONLY)
-
204WM-21315-00-00 STAY, ENGINE 2 (EXCEPT CALIF)STAY, ENGINE 2 (EXCEPT CALIF)
-
214WM-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
2290105-10170-00 BOLT,WASHER BASEDBOLT,WASHER BASED
-
2395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
245YU-2143A-00-00 CAPCAP
-
255VN-21317-10-00 STAY, ENGINE 3STAY, ENGINE 3
-
2690111-10047-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2795827-10035-00 BOLT, FLANGEBOLT, FLANGE
-
285VN-2137F-00-00 STAY 1STAY 1
-
2990111-10003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3090201-11013-00 WASHER, PLATEWASHER, PLATE
-
3190338-09012-00 PLUGPLUG
-
325MB-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
3390110-10191-00 BOLTBOLT
-
343D8-2117G-00-00 PROTECTORPROTECTOR
-
353VR-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
365VN-21268-00-00 SEALSEAL
-
375VN-8257V-00-00 PLATE, CONNECTORPLATE, CONNECTOR
-
3892017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3990464-07001-00 CLAMPCLAMP
-
405BM-21268-00-00 SEALSEAL
-
415VP-1548B-00-00 OIL, LABELOIL, LABEL
-
425VN-28100-00-00 TOOL KITTOOL KIT
-
4346X-21376-00-00 BAND, TOOLBAND, TOOL
