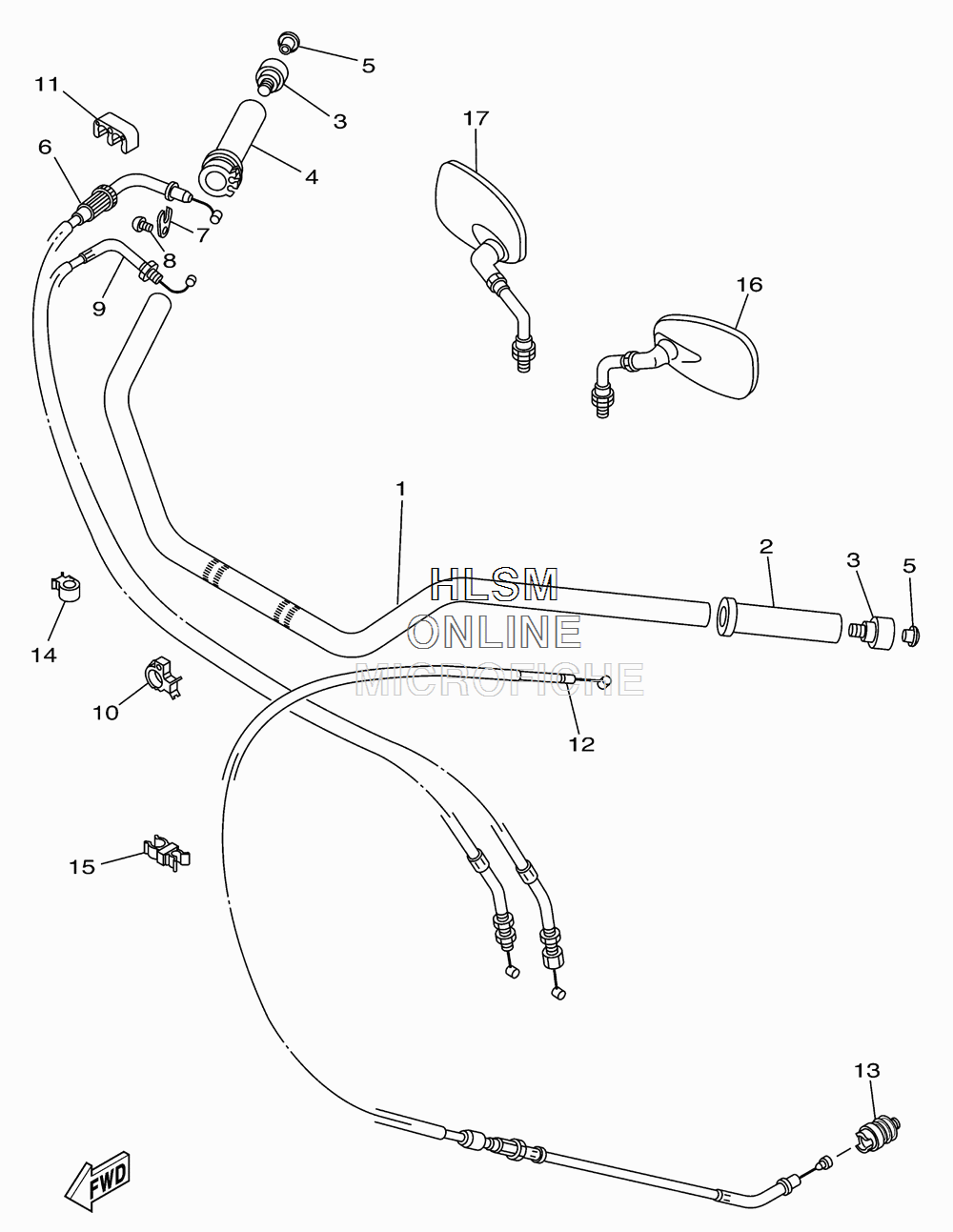

HANDLEBAR W/ CABLES для Yamaha ROAD STAR S - 2011 года выпуска
-
№АртикулНазвание
-
15VN-26111-10-00 HANDLEBARHANDLEBAR
-
24NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
35EL-26246-00-00 END, GRIPEND, GRIP
-
44XY-26240-00-00 GRIP ASSYGRIP ASSY
-
590338-10164-00 PLUGPLUG
-
65VN-26311-20-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
75H0-26393-00-00 HOLDERHOLDER
-
898507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
95VN-26312-20-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
1090464-25217-00 CLAMPCLAMP
-
1190464-07006-00 CLAMPCLAMP
-
125VN-26335-10-00 CABLE, CLUTCHCABLE, CLUTCH
-
131E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1490464-10190-00 CLAMPCLAMP
-
1590464-09014-00 CLAMPCLAMP
-
164NK-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
174NK-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
