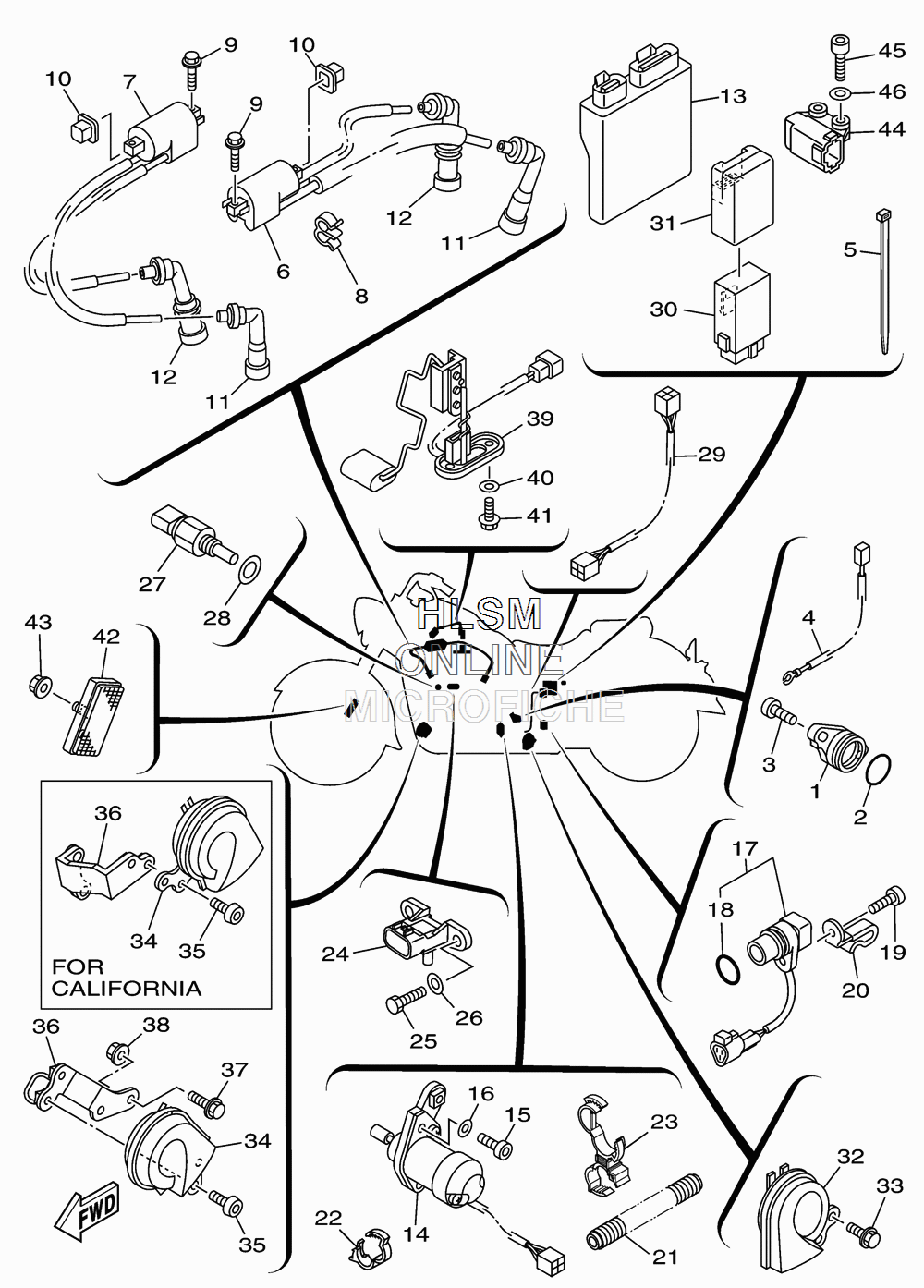

ELECTRICAL для Yamaha ROAD STAR SILVERADO S - 2011 года выпуска
-
№АртикулНазвание
-
11AE-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
293210-29196-00 O-RINGO-RING
-
390149-06139-00 SCREWSCREW
-
45VN-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
590464-16061-00 CLAMPCLAMP
-
65VN-82310-20-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
74WM-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
890468-15139-00 CLIPCLIP
-
995807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
104U8-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
114TR-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
124NK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
135VN-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
145VN-86110-10-00 SOLENOIDSOLENOID
-
1590110-06061-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690202-06002-00 WASHER, PLATEWASHER, PLATE
-
175YU-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
184D9-81168-00-00 ...O-RING...O-RING
-
1991314-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090465-08127-00 CLAMPCLAMP
-
215VN-81842-00-00 COVERCOVER
-
2290464-16003-00 CLAMPCLAMP
-
2390464-20008-00 CLAMPCLAMP
-
245PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
2597007-05012-00 BOLTBOLT
-
2692907-05600-00 WASHER, PLATEWASHER, PLATE
-
275PX-83591-00-00 THERMO UNITTHERMO UNIT
-
2890201-12172-00 WASHER, PLATEWASHER, PLATE
-
295VN-82583-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
305VN-83350-10-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
315VN-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
324WM-83371-00-00 HORNHORN
-
3395827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
345VN-83371-10-00 HORN (CALIF. ONLY)HORN (CALIF. ONLY)
-
345VN-83371-00-00 HORN (EXCEPT CALIF.)HORN (EXCEPT CALIF.)
-
3592017-06012-00 BOLT, BUTTON HEAD (EXCEPT CALIF.)BOLT, BUTTON HEAD (EXCEPT CALIF.)
-
3592017-06014-00 BOLT, BUTTON HEAD (CALIF. ONLY)BOLT, BUTTON HEAD (CALIF. ONLY)
-
365VN-83378-20-00 STAY, HORN (CALIF. ONLY)STAY, HORN (CALIF. ONLY)
-
365VN-83378-30-00 STAY, HORN (EXCEPT CALIF.)STAY, HORN (EXCEPT CALIF.)
-
3790105-06009-00 BOLT, WASHER BASED (EXCEPT CALIF.)BOLT, WASHER BASED (EXCEPT CALIF.)
-
3895707-06500-00 NUT, FLANGE (EXCEPT CALIF.)NUT, FLANGE (EXCEPT CALIF.)
-
395VN-85752-10-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
4090202-05193-00 WASHER, PLATEWASHER, PLATE
-
4195817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4211H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
4390185-05007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
445VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
4591317-04025-00 BOLTBOLT
-
4690201-047A2-00 WASHER, PLATEWASHER, PLATE
