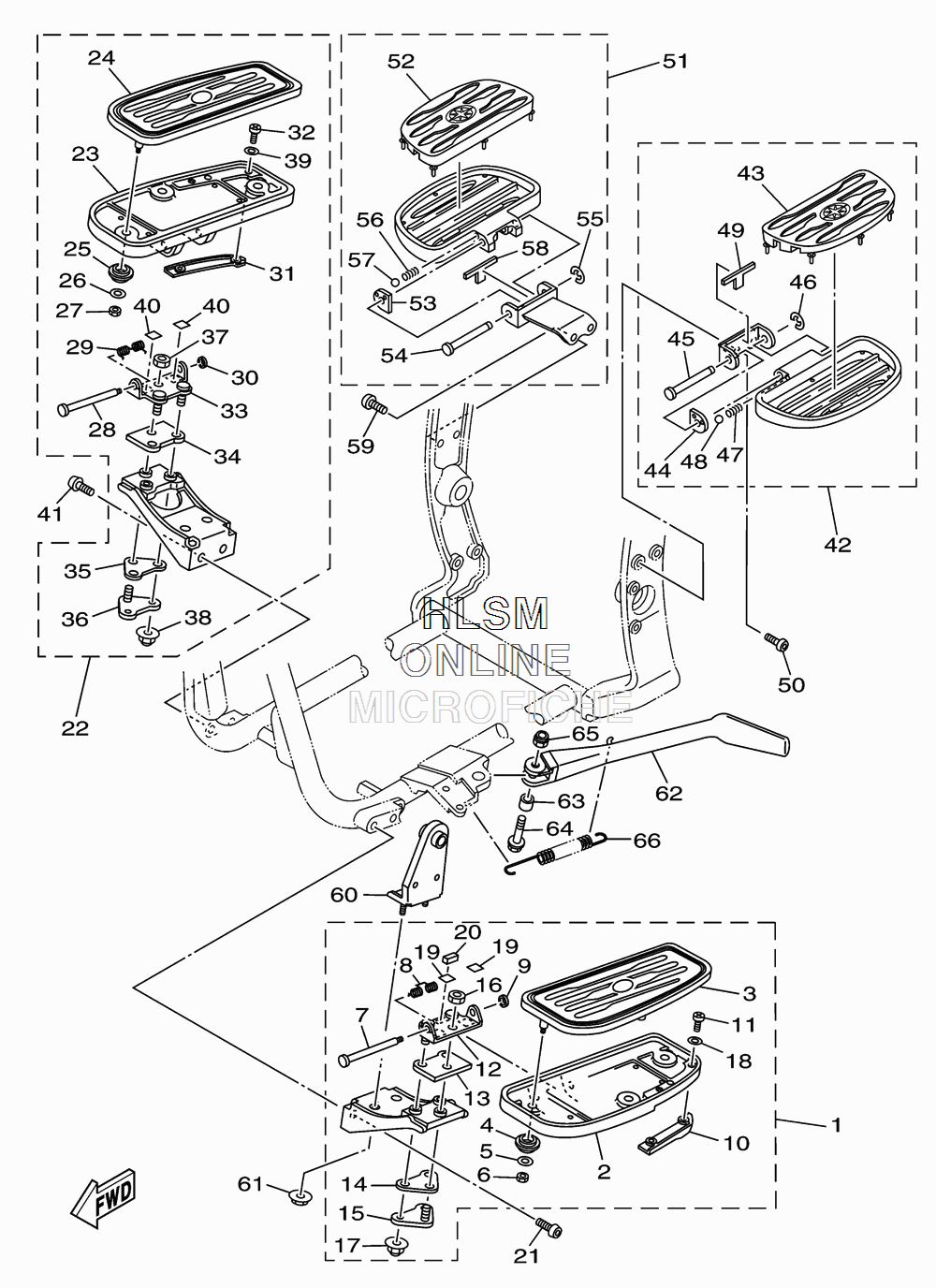

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha ROAD STAR SILVERADO S - 2011 года выпуска
-
№АртикулНазвание
-
15VN-27410-10-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
24NK-27451-10-00 ...FOOTREST...FOOTREST
-
34WM-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
44WM-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
590201-05033-00 ...WASHER, PLATE...WASHER, PLATE
-
695607-05100-00 ...NUT, U...NUT, U
-
73D8-27427-00-00 ...SHAFT...SHAFT
-
84NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
999001-06600-00 ...CIRCLIP...CIRCLIP
-
104WM-27496-00-00 ...MOLE 1...MOLE 1
-
1190157-05095-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
125VN-27422-00-00 ...BRACKET, FOOTREST 2...BRACKET, FOOTREST 2
-
135VN-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
145VN-27424-00-00 ...DAMPER, FOOTREST 2...DAMPER, FOOTREST 2
-
155VN-27123-00-00 ...PLATE, STOPPER...PLATE, STOPPER
-
1695317-06600-00 ...NUT...NUT
-
1790176-06007-00 ...NUT, CROWN...NUT, CROWN
-
1892907-05200-00 ...WASHER...WASHER
-
191D7-27485-00-00 ...SEAL...SEAL
-
205VN-2743E-00-00 ...STOPPER...STOPPER
-
2190111-10004-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
225VN-27420-10-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
234NK-27461-10-00 ...FOOTREST...FOOTREST
-
244WM-27423-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
254WM-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
2690201-05033-00 ...WASHER, PLATE...WASHER, PLATE
-
2795607-05100-00 ...NUT, U...NUT, U
-
283D8-27427-00-00 ...SHAFT...SHAFT
-
294NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
3099001-06600-00 ...CIRCLIP...CIRCLIP
-
314WM-27497-00-00 ...MOLE 2...MOLE 2
-
3290157-05095-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
335VN-27422-00-00 ...BRACKET, FOOTREST 2...BRACKET, FOOTREST 2
-
345VN-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
355VN-27424-00-00 ...DAMPER, FOOTREST 2...DAMPER, FOOTREST 2
-
365VN-27123-00-00 ...PLATE, STOPPER...PLATE, STOPPER
-
3795317-06600-00 ...NUT...NUT
-
3890176-06007-00 ...NUT, CROWN...NUT, CROWN
-
3992907-05200-00 ...WASHER...WASHER
-
401D7-27485-00-00 ...SEAL...SEAL
-
4190111-10004-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
422D9-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
434YE-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
444YE-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
454YE-27427-01-00 ...SHAFT...SHAFT
-
4699001-06600-00 ...CIRCLIP...CIRCLIP
-
4790501-13720-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
4893501-04011-00 ...BALL 1/4...BALL 1/4
-
492D9-2743E-00-00 ...STOPPER...STOPPER
-
5090111-08031-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
512D9-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
524YE-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
534YE-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
544YE-27427-01-00 ...SHAFT...SHAFT
-
5599001-06600-00 ...CIRCLIP...CIRCLIP
-
5690501-13720-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
5793501-04011-00 ...BALL 1/4...BALL 1/4
-
582D9-2743E-00-00 ...STOPPER...STOPPER
-
5990111-08031-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
605VN-27443-00-00 BRACKET 3BRACKET 3
-
6195607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
624WM-27311-00-00 STAND, SIDESTAND, SIDE
-
6390387-1007K-00 COLLARCOLLAR
-
6490105-10778-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6590185-10037-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6690506-29358-00 SPRING, TENSIONSPRING, TENSION
