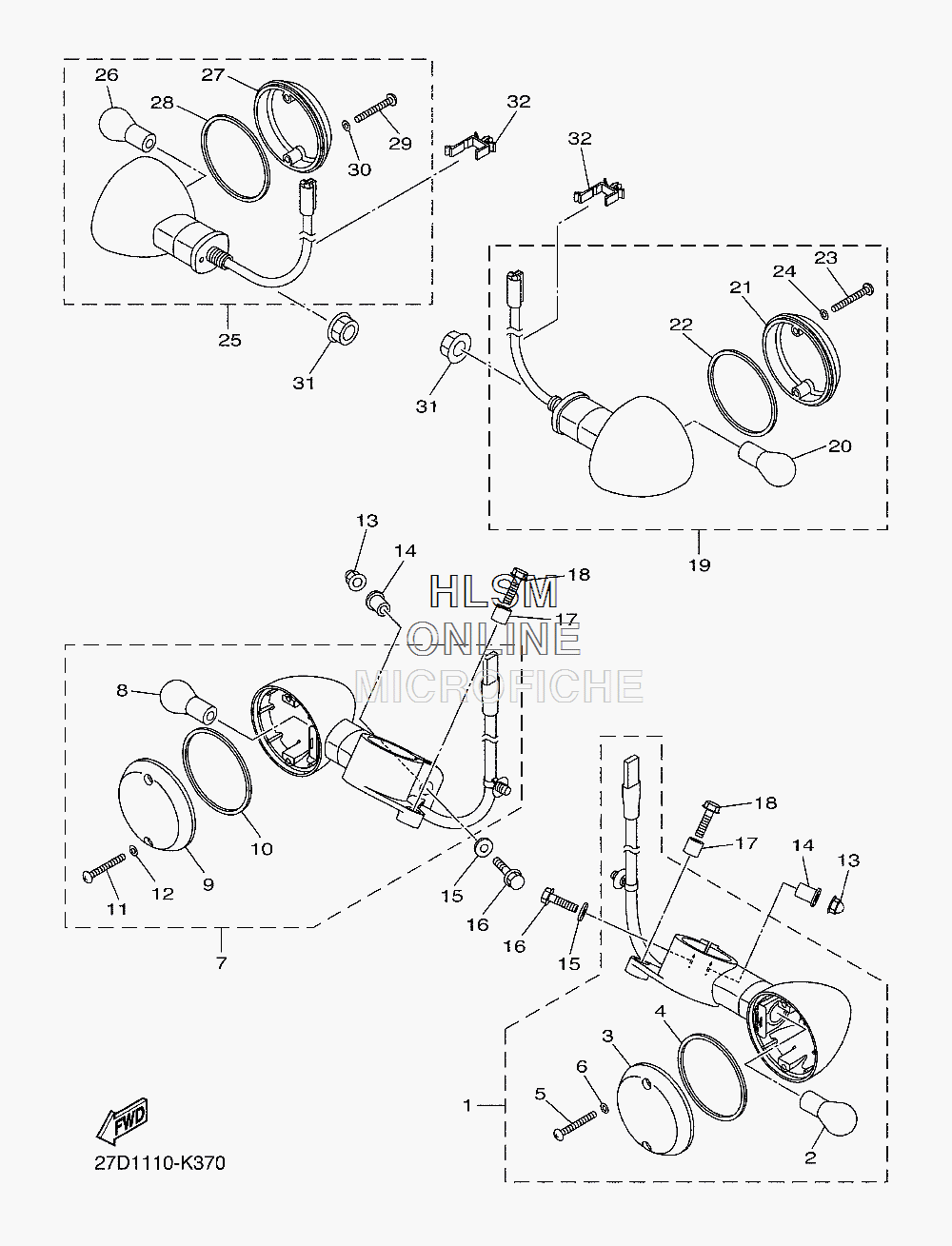

FLASHER LIGHT для Yamaha STRYKER (BLACK METALLIC) - 2011 года выпуска
-
№АртикулНазвание
-
127D-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25VN-83311-00-00 ...BULB, FLASHER (12V-23/8W)...BULB, FLASHER (12V-23/8W)
-
35PX-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
45PX-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
597704-40625-00 ...SCREW, TAPPING...SCREW, TAPPING
-
65PX-83348-00-00 ...WASHER...WASHER
-
727D-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
85VN-83311-00-00 ...BULB, FLASHER (12V-23/8W)...BULB, FLASHER (12V-23/8W)
-
95PX-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
105PX-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
1197704-40625-00 ...SCREW, TAPPING...SCREW, TAPPING
-
125PX-83348-00-00 ...WASHER...WASHER
-
1390176-06055-00 NUT, CROWNNUT, CROWN
-
1490387-06076-00 COLLARCOLLAR
-
1590201-06045-00 WASHER, PLATEWASHER, PLATE
-
1695802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1790387-08085-00 COLLARCOLLAR
-
1895027-08020-00 BOLT, FLANGEBOLT, FLANGE
-
195C7-83330-10-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
205VN-83331-00-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
215PX-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
225PX-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2397704-40625-00 ...SCREW, TAPPING...SCREW, TAPPING
-
245PX-83348-00-00 ...WASHER...WASHER
-
255C7-83340-10-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
265VN-83331-00-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
275PX-83342-10-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
285PX-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2997704-40625-00 ...SCREW, TAPPING...SCREW, TAPPING
-
305PX-83348-00-00 ...WASHER...WASHER
-
3195702-12500-00 NUT, FLANGENUT, FLANGE
-
3290464-16021-00 CLAMPCLAMP
