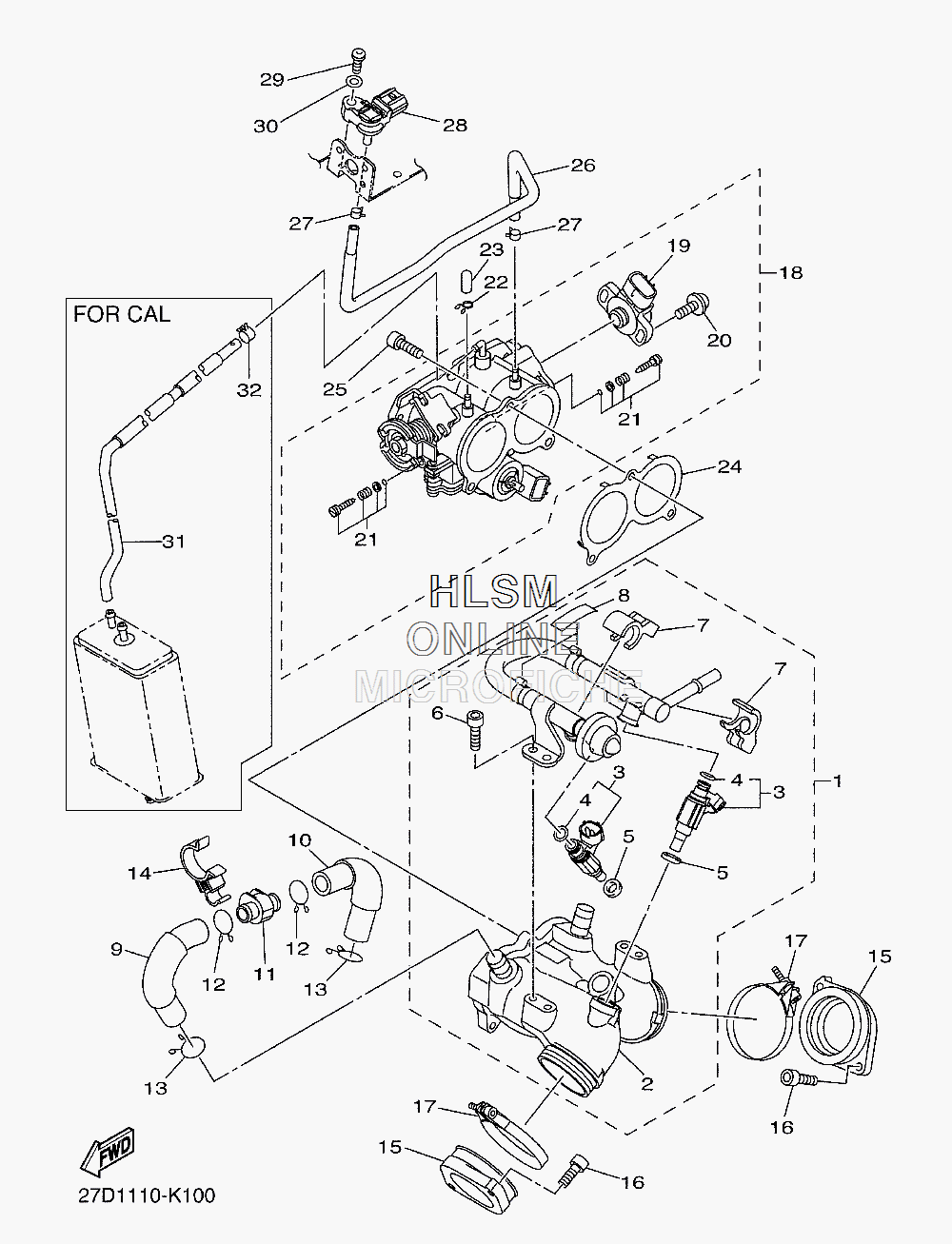

THROTTLE BODY ASSY. для Yamaha STRYKER (BLACK METALLIC) - 2011 года выпуска
-
№АртикулНазвание
-
13D8-13590-20-00 CARBURETOR JOINT ASSYCARBURETOR JOINT ASSY
-
23D8-13640-00-00 ...MANIFOLD...MANIFOLD
-
33D8-13761-00-00 ...INJECTOR...INJECTOR
-
45FL-14147-00-00 ...O-RING...O-RING
-
58FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
691312-06014-00 ...BOLT...BOLT
-
73D8-14261-00-00 ...HOLDER...HOLDER
-
83D8-1442F-00-00 ...PROTECTOR...PROTECTOR
-
93D8-1441J-00-00 PIPE, SILENCERPIPE, SILENCER
-
103D8-1442J-00-00 PIPE, SILENCER 2PIPE, SILENCER 2
-
113D8-14862-00-00 PLUGPLUG
-
1290467-18196-00 CLIPCLIP
-
1390467-18196-00 CLIPCLIP
-
1490464-23004-00 CLAMPCLAMP
-
153D8-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
1691312-06020-00 BOLTBOLT
-
1790450-59008-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
183D8-13750-50-00 THROTTLE BODY ASSY (CALIF. ONLY)THROTTLE BODY ASSY (CALIF. ONLY)
-
183D8-13750-40-00 THROTTLE BODY ASSY (EXCEPT CALIF.)THROTTLE BODY ASSY (EXCEPT CALIF.)
-
198GL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
204KM-24453-00-00 ...SCREW...SCREW
-
213D8-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
228A7-14139-00-00 CLIP, PIPECLIP, PIPE
-
23895-14169-00-00 CAPCAP
-
243D8-14467-00-00 SEALSEAL
-
2591312-06020-00 BOLTBOLT
-
2627D-13895-00-00 HOSE, AIRHOSE, AIR
-
2790467-07093-00 CLIP, SCISSORCLIP, SCISSOR
-
285S7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
2997002-05020-00 BOLTBOLT
-
3092902-05600-00 WASHER, PLATEWASHER, PLATE
-
3127D-14148-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
3290467-09037-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
