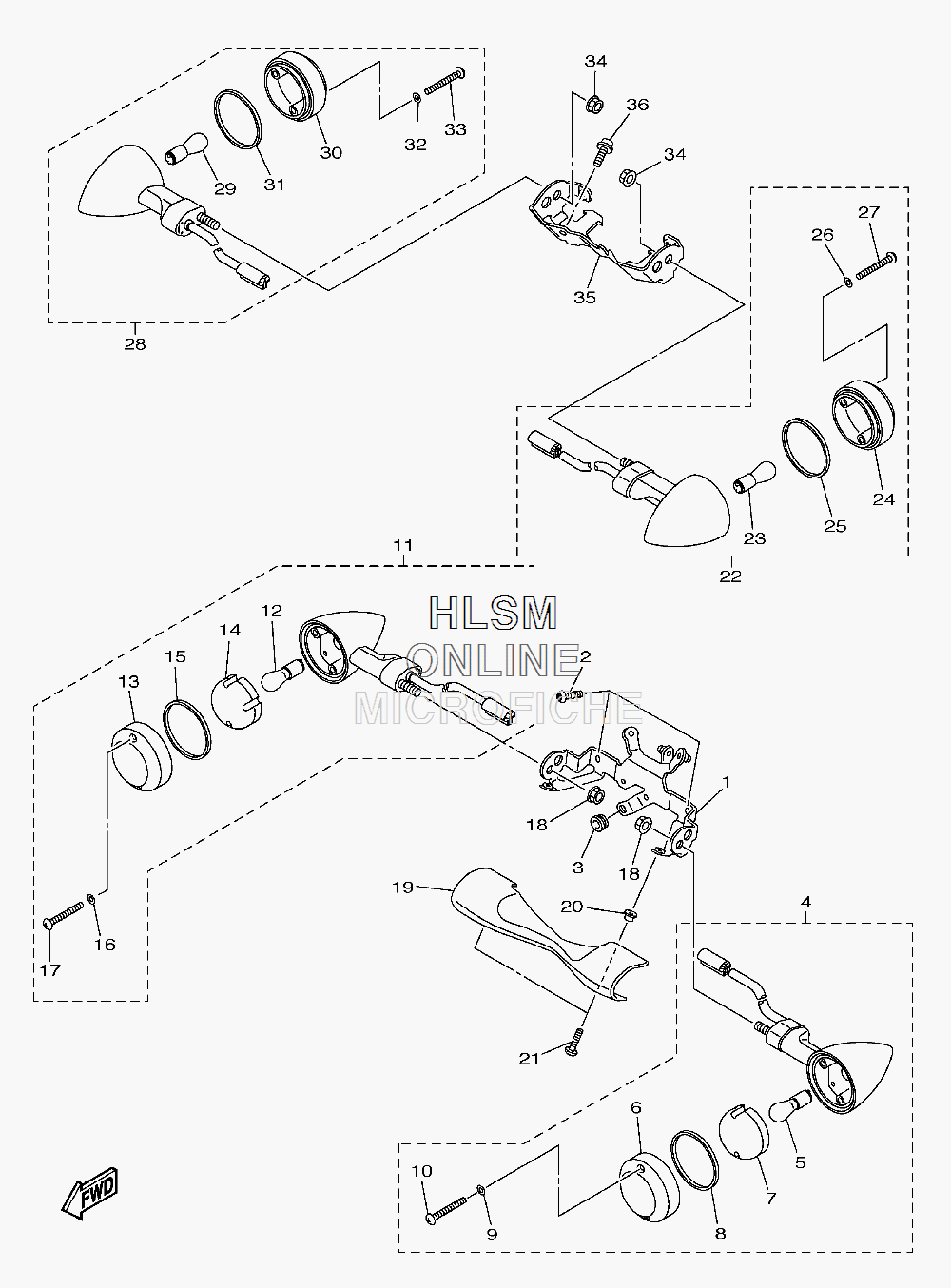

FLASHER LIGHT для Yamaha V STAR 950 B - 2011 года выпуска
-
№АртикулНазвание
-
15S7-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
292012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
390480-13398-00 GROMMETGROMMET
-
43D8-83310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
51A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
63D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
73D8-8333L-00-00 ...LENS, INNER 1...LENS, INNER 1
-
83D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
93D8-83348-00-00 ...WASHER...WASHER
-
1097702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
113D8-83320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
121A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
133D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
143D8-8333L-00-00 ...LENS, INNER 1...LENS, INNER 1
-
153D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
163D8-83348-00-00 ...WASHER...WASHER
-
1797702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1895702-10500-00 NUT, FLANGENUT, FLANGE
-
193D8-23122-10-00 COVER, OUTER 1COVER, OUTER 1
-
2090387-06255-00 COLLARCOLLAR
-
2190111-05037-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
223D8-83330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
233D8-83311-00-00 ...BULB, FLASHER (12V21W)...BULB, FLASHER (12V21W)
-
243D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
253D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
263D8-83348-00-00 ...WASHER...WASHER
-
2797702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
283D8-83340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
293D8-83311-00-00 ...BULB, FLASHER (12V21W)...BULB, FLASHER (12V21W)
-
303D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
313D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
323D8-83348-00-00 ...WASHER...WASHER
-
3397702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
3495702-10500-00 NUT, FLANGENUT, FLANGE
-
355S7-83368-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
3690110-06276-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
