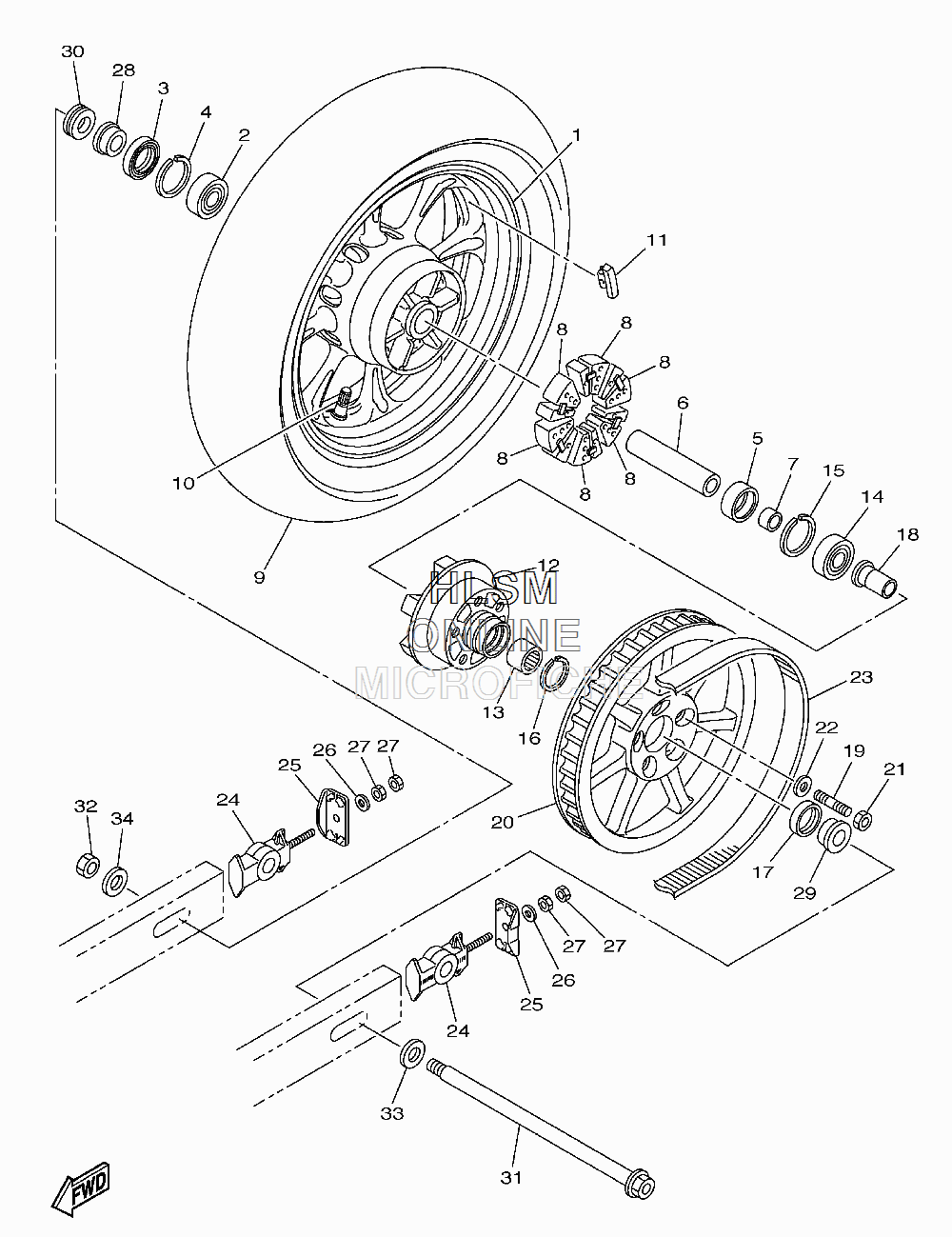

WHEEL - REAR для Yamaha V STAR 950 B - 2011 года выпуска
-
№АртикулНазвание
-
15S7-25338-01-00 CAST WHEEL, REARCAST WHEEL, REAR
-
293306-30437-00 BEARINGBEARING
-
393106-28001-00 OIL SEALOIL SEAL
-
499009-52500-00 CIRCLIPCIRCLIP
-
593320-32811-00 BEARINGBEARING
-
63D8-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
71D7-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
84WM-25364-00-00 DAMPERDAMPER
-
994117-16001-00 TIRE (170/70B16M/C 75H K555) DUNLOPTIRE (170/70B16M/C 75H K555) DUNLOP
-
994117-16009-00 TIRE (170/70B16M/C 75H EXEDR) BSTIRE (170/70B16M/C 75H EXEDR) BS
-
1093900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
115MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
115MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
115MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
123D8-25366-20-00 CLUTCH, HUBCLUTCH, HUB
-
1393320-32612-00 BEARINGBEARING
-
1493306-30437-00 BEARINGBEARING
-
1599009-52500-00 CIRCLIPCIRCLIP
-
1693450-35163-00 CIRCLIPCIRCLIP
-
1793106-30004-00 OIL SEAL, DD-TYPEOIL SEAL, DD-TYPE
-
183D8-25376-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1995612-12630-00 BOLT, STUDBOLT, STUD
-
203D8-25470-00-00 SPROCKET, DRIVEN (70T)SPROCKET, DRIVEN (70T)
-
2195614-12100-00 NUT, UNUT, U
-
2290201-12045-00 WASHER, PLATEWASHER, PLATE
-
235S7-46241-00-00 V-BELTV-BELT
-
245S7-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
255S7-2539F-00-00 PLATE 1PLATE 1
-
2692902-08600-00 WASHER, PLATEWASHER, PLATE
-
2795304-08600-00 NUTNUT
-
2890387-20012-00 COLLARCOLLAR
-
2990387-202X9-00 COLLARCOLLAR
-
305S7-2583B-00-00 COLLAR, CALIPERCOLLAR, CALIPER
-
315S7-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
3290185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3390201-20029-00 WASHER, PLATEWASHER, PLATE
-
3490201-18029-00 WASHER, PLATEWASHER, PLATE
