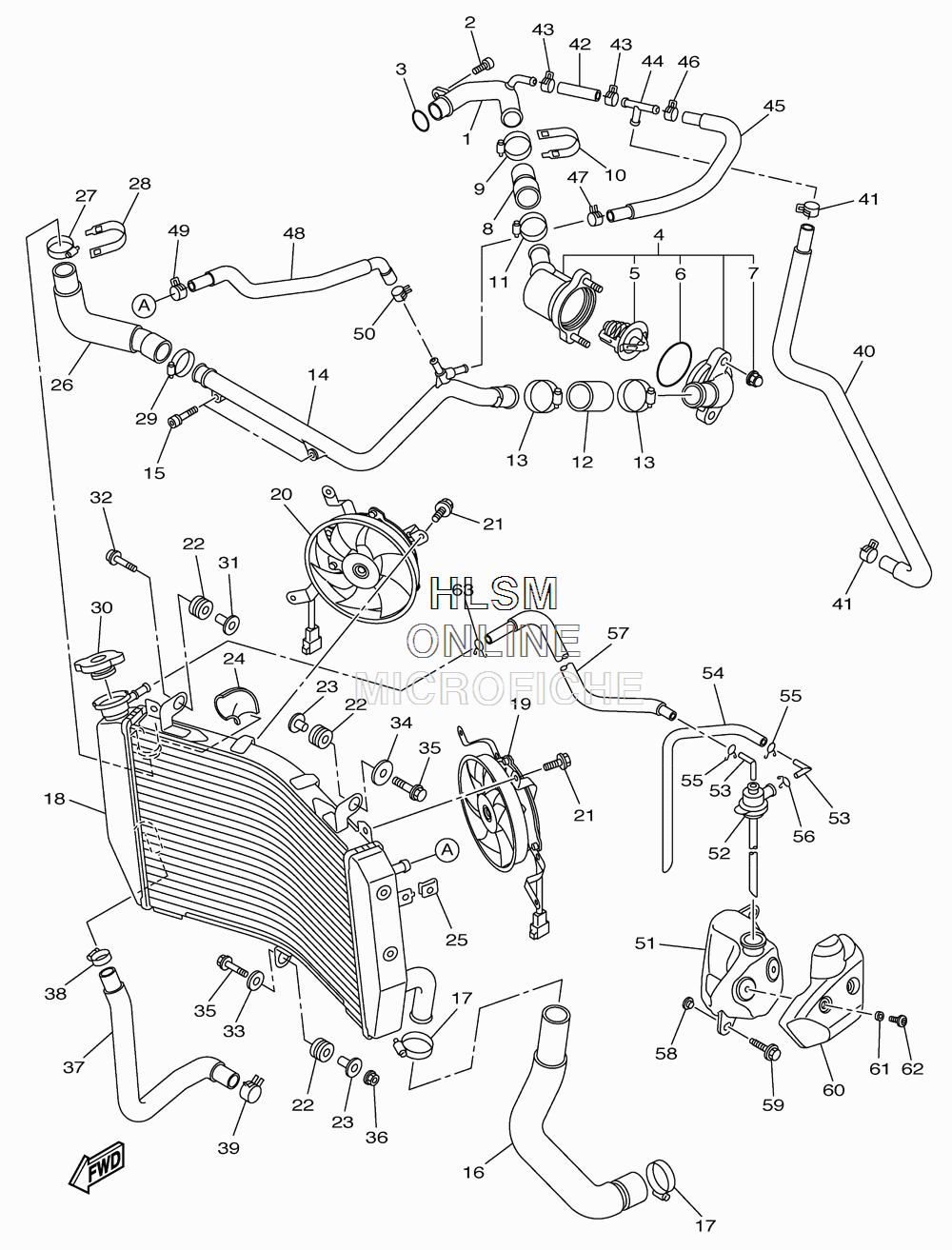

RADIATOR для Yamaha YZF-R1 (BLACK METALLIC/PURPLISH BLUE) - 2011 года выпуска
-
№АртикулНазвание
-
114B-12485-00-00 PIPE 5PIPE 5
-
290110-06182-00 BOLT (4MY)BOLT (4MY)
-
393210-235A1-00 O-RINGO-RING
-
414B-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
55LP-12411-00-00 ...THERMOSTAT...THERMOSTAT
-
693210-49046-00 ...O-RING...O-RING
-
790176-06014-00 ...NUT, CROWN...NUT, CROWN
-
84C8-12579-00-00 HOSE 4HOSE 4
-
990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
105GV-1246E-00-00 COVER 2COVER 2
-
1190450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1214B-12579-00-00 HOSE 4HOSE 4
-
1390450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1414B-12482-00-00 PIPE 2PIPE 2
-
1590110-06256-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1614B-12578-00-00 HOSE 3HOSE 3
-
1790450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1814B-12461-00-00 RADIATOR COMPRADIATOR COMP
-
1914B-12405-00-00 BLOWER ASSYBLOWER ASSY
-
2014B-12405-10-00 BLOWER ASSYBLOWER ASSY
-
215GJ-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
2290480-15363-00 GROMMETGROMMET
-
2390387-0614M-00 COLLARCOLLAR
-
2414B-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
255SL-12671-00-00 NUT 1NUT 1
-
2614B-12551-00-00 HOSE 7HOSE 7
-
2790450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
285GV-1246E-00-00 COVER 2COVER 2
-
2990450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
305SL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
3190387-0614M-00 COLLARCOLLAR
-
3291317-06030-00 BOLT,HEX SKT HEADBOLT,HEX SKT HEAD
-
3390201-06071-00 WASHER, PLATEWASHER, PLATE
-
3490201-06074-00 WASHER, PLATEWASHER, PLATE
-
3595827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3695607-06200-00 NUT-UNUT-U
-
3714B-12589-00-00 HOSE 6HOSE 6
-
3890450-22017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3990467-200A0-00 CLIPCLIP
-
4014B-1243A-00-00 HOSE 1HOSE 1
-
4190467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
4214B-1243E-00-00 HOSE 2HOSE 2
-
4390467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
4490413-07023-00 WAY 3WAY 3
-
4514B-1244G-00-00 HOSE, 4HOSE, 4
-
4690467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
4790467-11044-00 CLIPCLIP
-
4814B-12552-00-00 HOSE 8HOSE 8
-
4990467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
5090467-11044-00 CLIPCLIP
-
5114B-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
5214B-21875-00-00 CAPCAP
-
5326H-21828-00-00 ELBOWELBOW
-
5490445-08036-00 HOSEHOSE
-
5590467-08003-00 CLIPCLIP
-
5690467-10M04-00 CLIPCLIP
-
5714B-1243F-00-00 HOSE, 3HOSE, 3
-
5890387-06681-00 COLLARCOLLAR
-
5990119-06177-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6014B-2172W-00-00 COVERCOVER
-
6190387-06372-00 COLLARCOLLAR
-
6290111-06119-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6390467-08075-00 CLIP,SCISSORCLIP,SCISSOR
